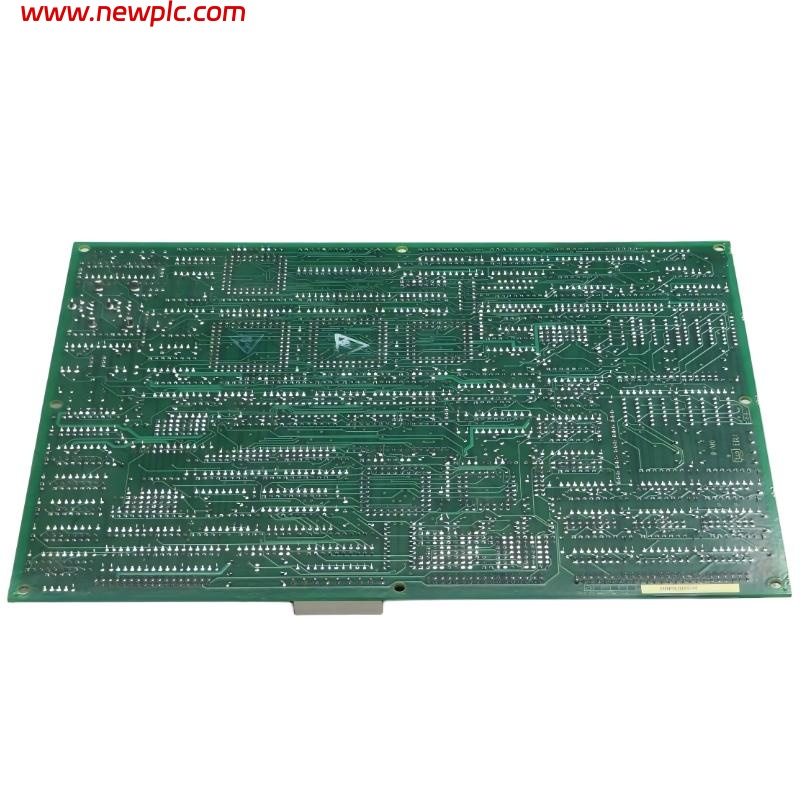

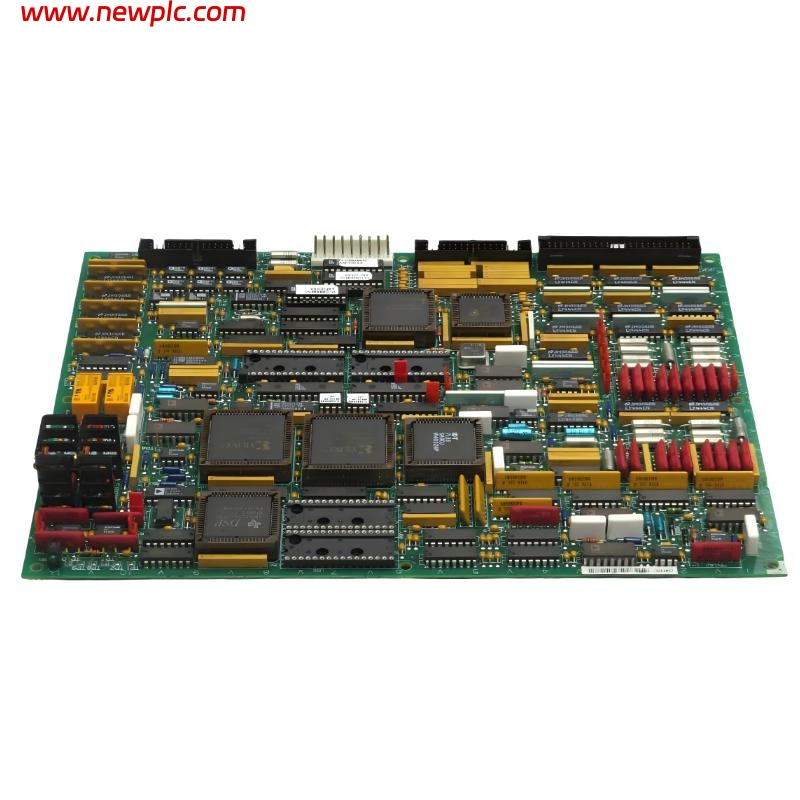

GE DS200TCQBG1BCB RST Extended Analog I/O Board

FAQ

Q1: What is the main function of the GE DS200TCQBG1BCB board?
A1: It provides extended analog input and processing capability for RST phase signals within a Mark V control system.

Q2: What does “RST Extended” refer to on this board?
A2: It indicates that the board handles additional or enhanced analog channels associated with R, S, and T phase measurements.

Q3: What type of signals can be connected to this board?
A3: The board accepts standard industrial voltage and current analog signals used in turbine and generator monitoring.

Q4: How is the board powered?
A4: Power is supplied through the Mark V backplane using a 24 VDC system supply.

Q5: Does the board perform any signal conditioning?
A5: Yes, it includes input filtering and scaling to stabilize and normalize raw field signals before processing.

Q6: Is this board interchangeable with standard analog I/O boards?
A6: It is designed for extended RST applications and should only be used where system configuration specifically requires this model.

Q7: What protection features are built into the board?
A7: The board includes protection against overvoltage, short circuits, and electrical transients.

Q8: Does this board require independent configuration?
A8: No, configuration is handled through the Mark V controller; the board itself does not require standalone setup.
