Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model Number | DS200TCQCG1BJF |

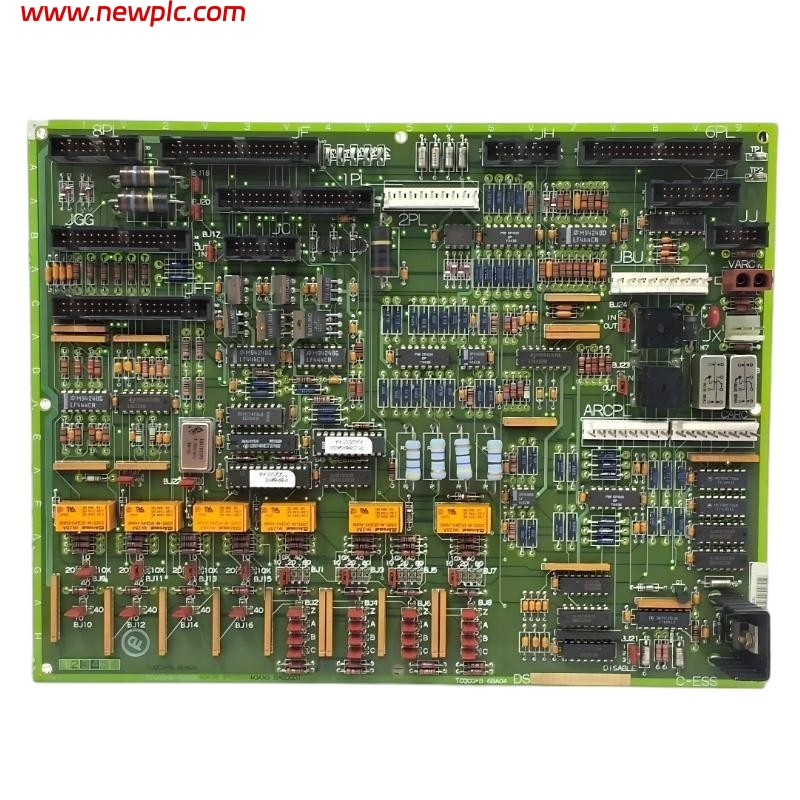

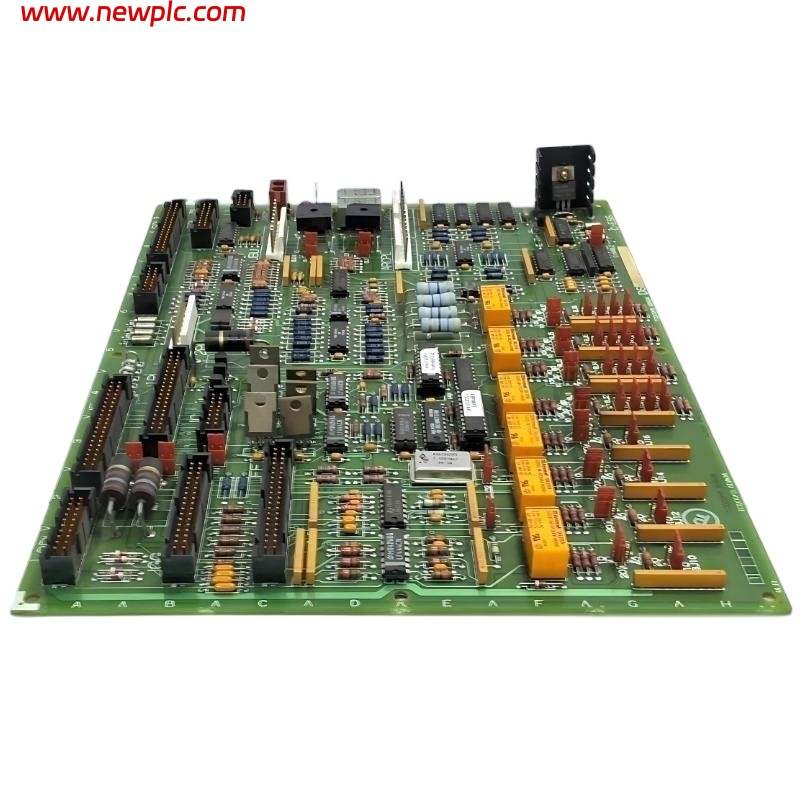

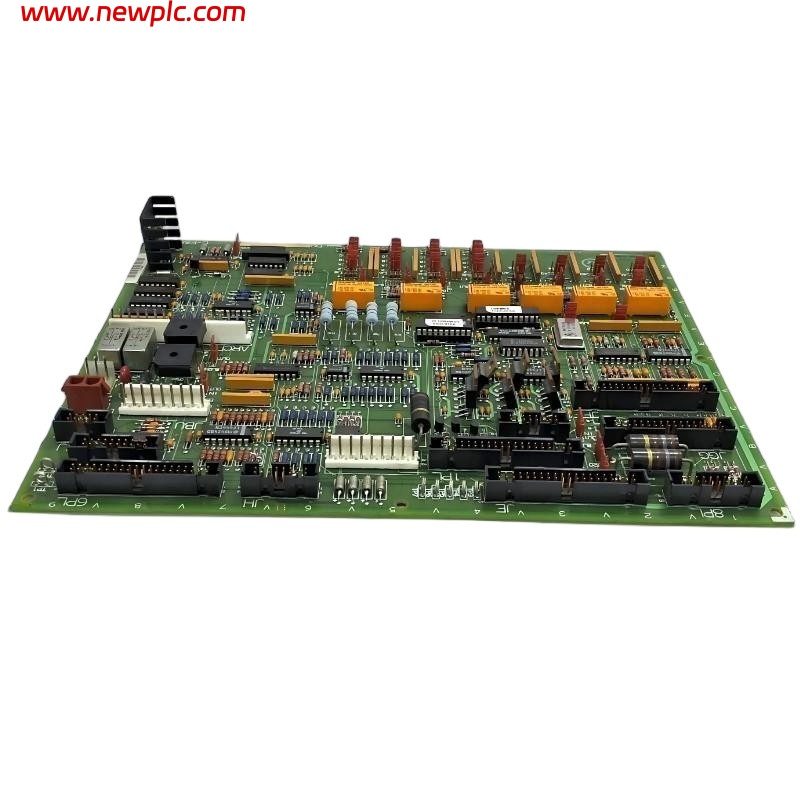

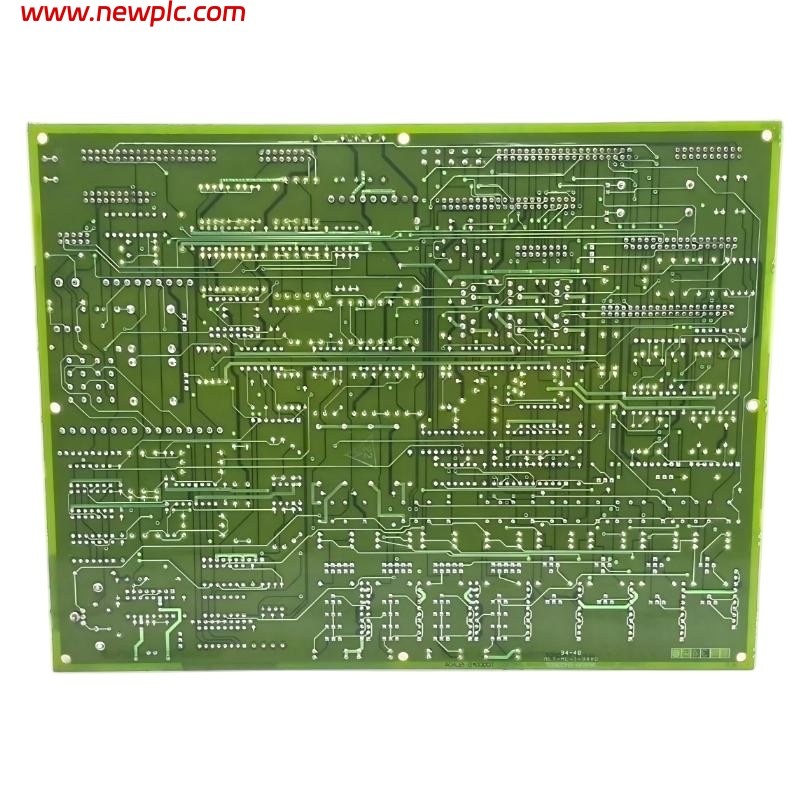

| Product Type | RST Overflow / Analog I/O Expander Board |
| Series | GE Speedtronic Mark V (DS200 series) |
| Function | Provides extended analog input/output expansion and overflow signal conditioning for turbine control systems; supports LVDT excitation and interfaces with termination boards. |
| Typical Use | Enhances analog I/O capacity in gas and steam turbine control racks; buffers and scales signals from R, S, and T cores. |
| Backplane Interface | Rack‑mount PCB installed in Mark V turbine control cabinet. |
| Connectors | 3 × 40‑pin, 3 × 34‑pin, and 1 × 16‑pin connectors for system integration. |
| Jumpers | 24 adjustable jumpers for configuration. |
| Operating Temperature | –40 °C to +70 °C industrial range. |
| Humidity | Standard industrial non‑condensing conditions. |
| Dimensions (approx.) | 100 mm × 80 mm × 20 mm (board footprint) |
| Weight | ~0.45 kg |
| Status | Legacy GE Mark V analog I/O expansion / overflow board — typically available as surplus or refurbished stock. |
FAQ
FAQ
Q1. What is the DS200TCQCG1BJF board?
It is an RST overflow and analog I/O expander board for GE Speedtronic Mark V turbine control systems, enhancing analog input/output capacity.
Q2. Which control platform uses this module?
It is used in the GE Speedtronic Mark V (DS200 series) industrial/turbine control environment.
Q3. What does “RST overflow” mean?
It refers to extended analog signal processing beyond the base I/O processor’s capacity (R, S, and T core overflow).
Q4. What kinds of connectors does this board include?
It includes 40‑pin, 34‑pin, and 16‑pin connectors to link analog signals and system harnesses.
Q5. Can the board configuration be changed?
Yes — it has 24 configurable jumpers for setup and I/O routing.
Q6. What environments can this board operate in?
It’s designed for standard industrial environments from about −40 °C to +70 °C with non‑condensing humidity.
Q7. What are the physical dimensions of the DS200TCQCG1BJF?
The board’s footprint is approximately 100 mm × 80 mm × 20 mm.
Q8. How much does it weigh?
It weighs about 0.45 kg.
