Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model Number | DS200TCRAG1ACC |

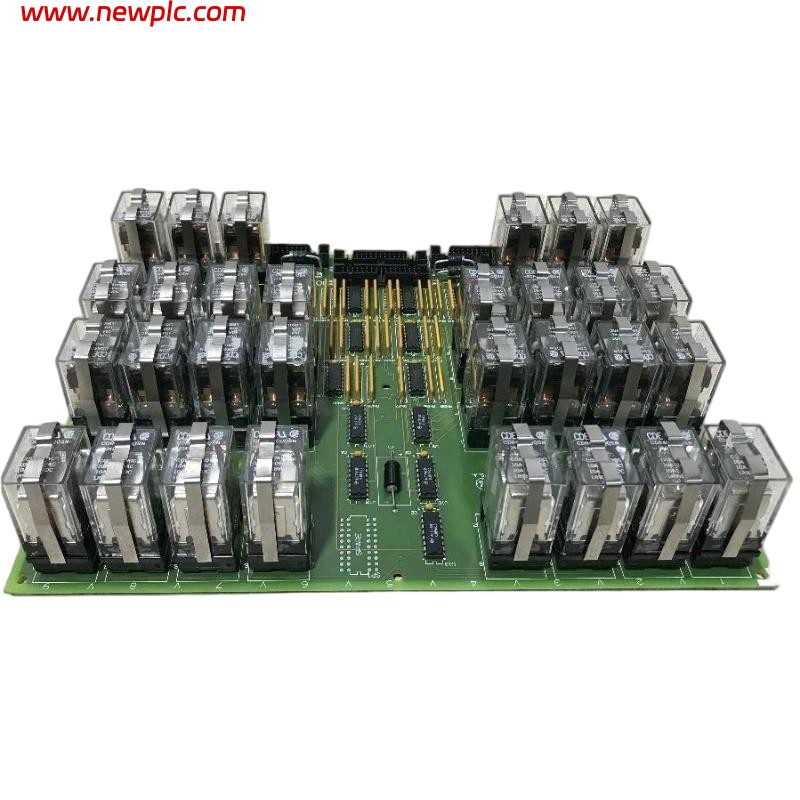

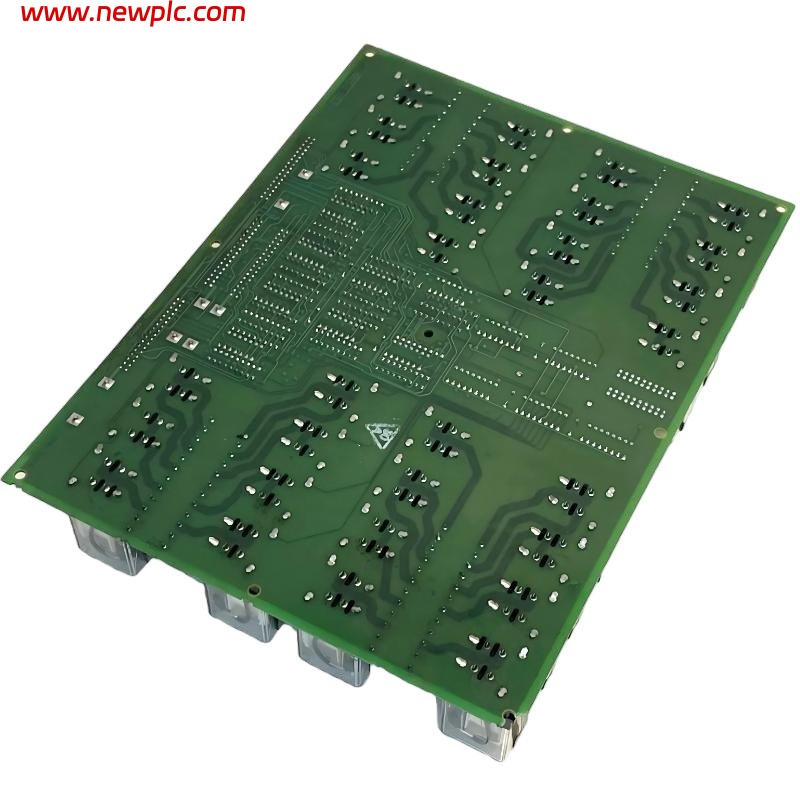

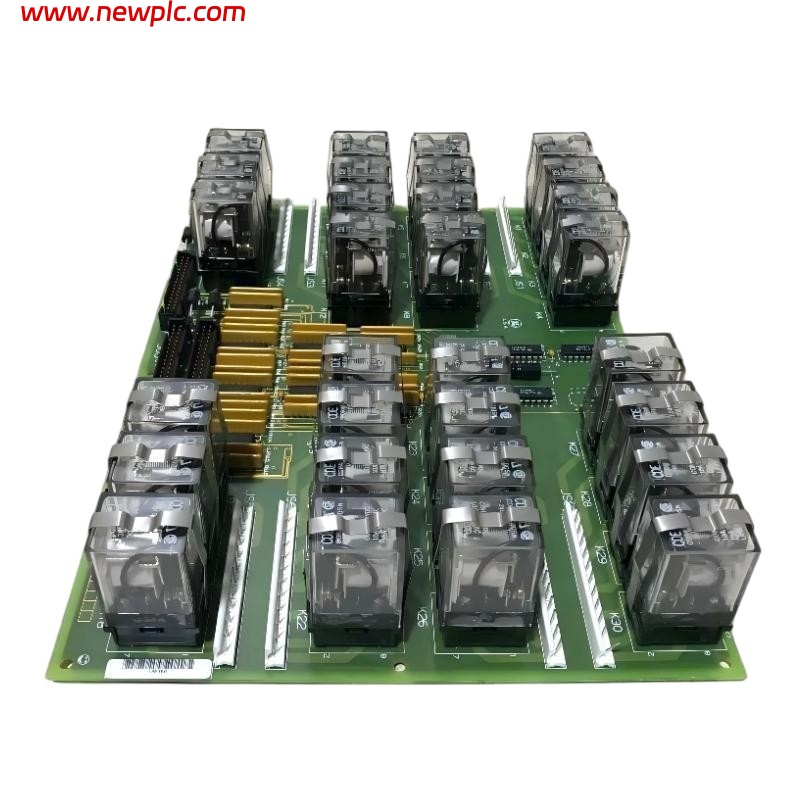

| Product Type | Relay Output Board |
| Series | Speedtronic Mark V (DS200 / Mark V turbine control system) |
| Function | Provides relay output switching for discrete control signals in turbine automation and industrial control environments; converts digital commands into physical relay actuations. |
| Relay Count | 30 plug‑in relays (standard configuration) |
| Connectors | 4 × 34‑pin connectors (JOR, JOS, JOT, JO) and 4 × 12‑pin connectors (JS3, JS4, JS5, JS6) |
| Contact Rating | ~0.5 A per relay contact (mark V typical) |
| Backplane Interface | Rack‑mount printed circuit board connecting to Mark V I/O digital cores |
| Operating Voltage | 24 V DC logic (system bus typical) |
| Status Indicators | Relay status indicated via connector logic (local LEDs may be present depending on revision) |
| Operating Temperature | Typical industrial range (e.g., −20 °C to +70 °C) |
| Humidity | 5 %–95 % non‑condensing industrial tolerance |
| Mounting | Rack‑mount printed circuit board inside Mark V control cabinet |
| Dimensions (approx.) | 260 mm × 160 mm × 40 mm (board board‑level footprint) |
| Weight | ~1.3 kg (estimated based on typical Mark V relay board weight) |
| Status | Legacy industrial control board often available as surplus/refurbished parts |
FAQ
FAQ
Q1. What does the DS200TCRAG1ACC board do?
It is a relay output board that translates digital logic signals from the turbine control system into physical relay energization for external devices.
Q2. What control system family uses this board?
This board is part of the GE Speedtronic Mark V series of control modules for turbines and industrial automation.
Q3. How many relays are on the DS200TCRAG1ACC?
It typically comes equipped with 30 plug‑in relays for discrete output switching.
Q4. What connectors does this board have?
It has four 34‑pin connectors labeled JOR, JOS, JOT, and JO, and four 12‑pin connectors labeled JS3 through JS6.
Q5. What voltage does it operate on?
It operates from a 24 V DC logic supply typical of Mark V system bus connections.
Q6. What are the physical size and weight of this board?
The approximate board size is 260 mm × 160 mm × 40 mm, and it weighs about 1.3 kg.
Q7. What environmental conditions can it operate in?
It is designed for typical industrial environments, with operating temperatures around −20 °C to +70 °C and non‑condensing humidity.
Q8. Is DS200TCRAG1ACC still manufactured?
No — this is a legacy Mark V relay output board and is generally available as surplus, refurbished, or stock on hand rather than new production.
