Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model Number | DS200UPLAG1BDA |

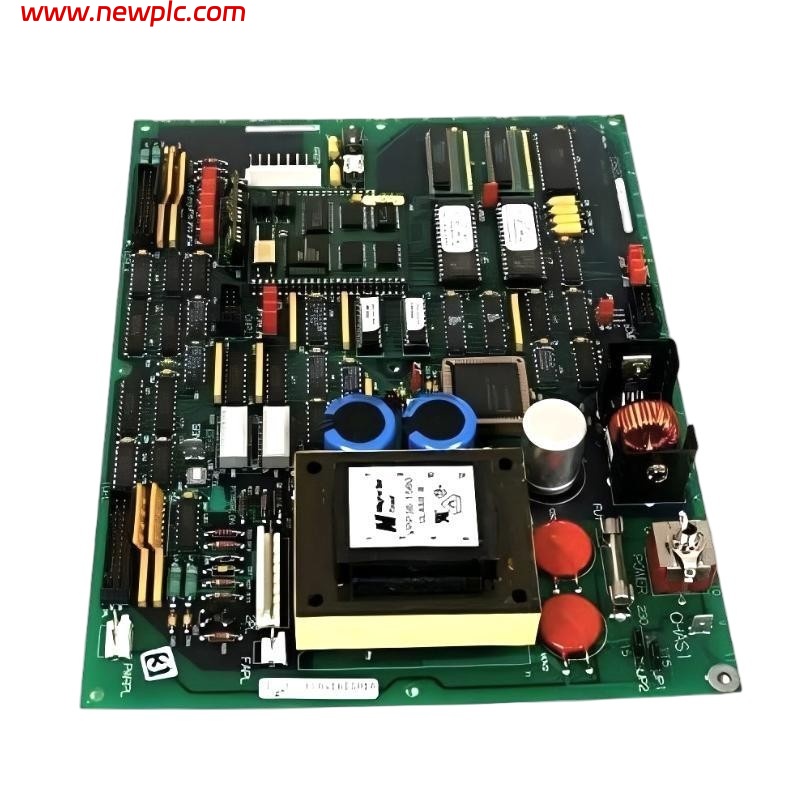

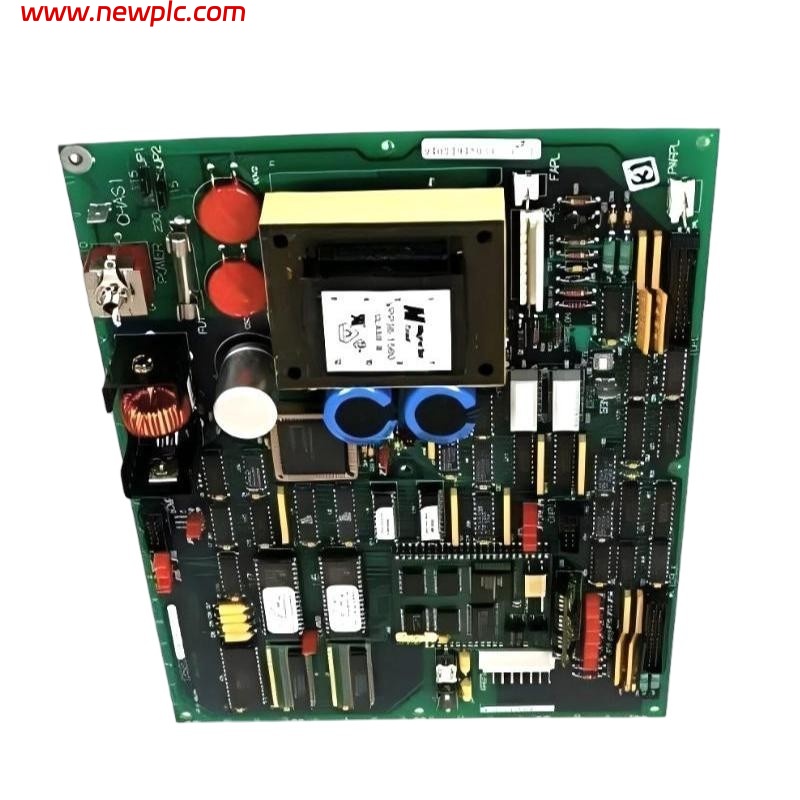

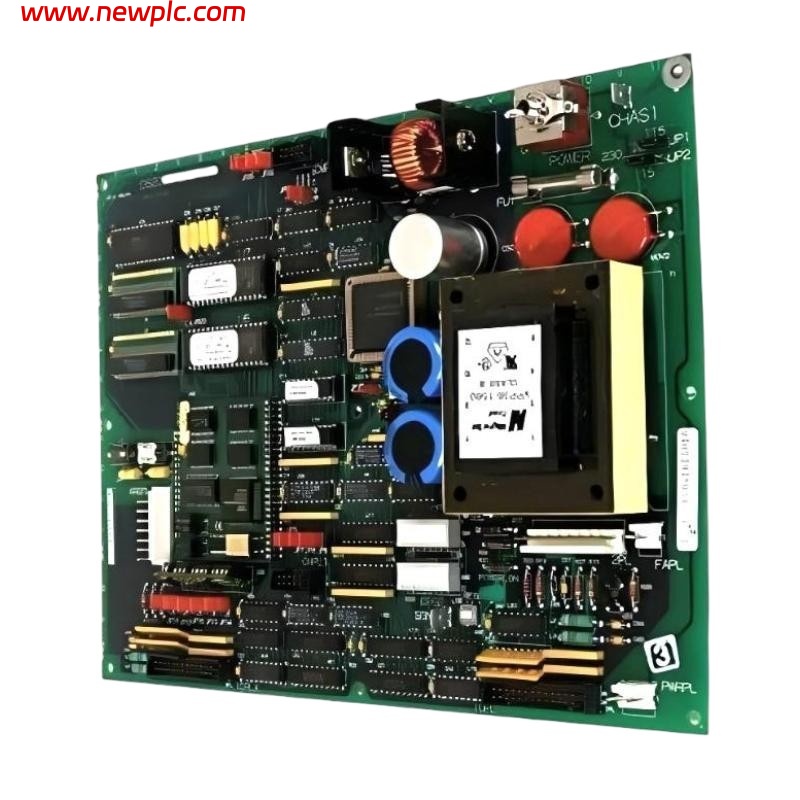

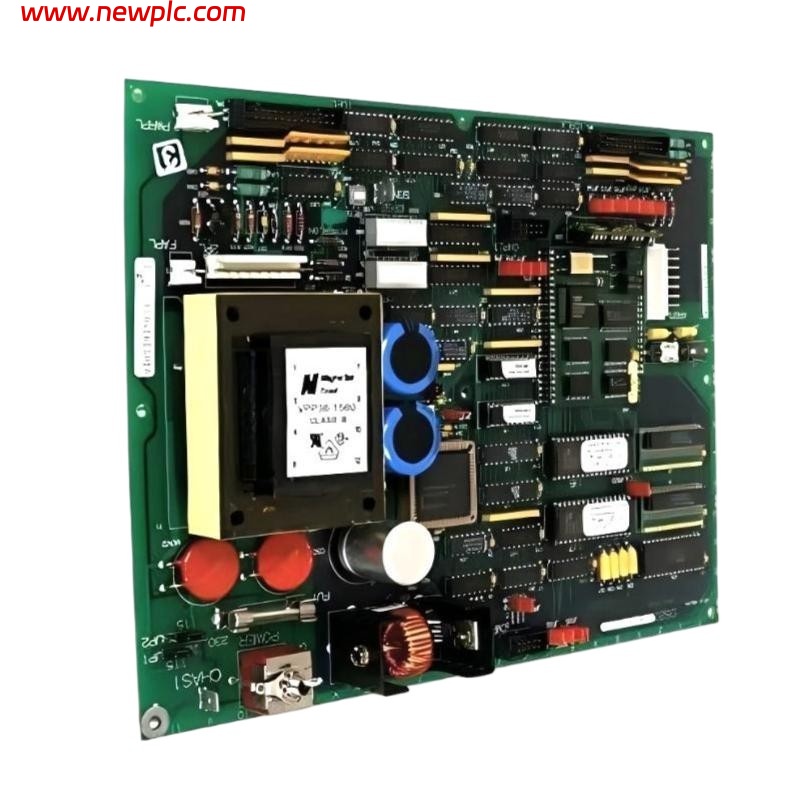

| Product Type | LAN Power Supply Board |
| Series | Mark V DS200 series power/communication boards |
| Functional Description | Provides LAN power supply and power distribution to network components within the control rack |
| Functional Acronym | UPLA |
| PCB Coating Type | Standard coating |
| Assembly Type | Normal assembly |
| Connectors | Two 26‑pin connectors, one 8‑pin connector |
| Additional Hardware | One fuse, one toggle switch, one reset button |
| Jumper & Switch Config | Multiple jumpers (≈17) and switches (≈16) for configuration |
| Mounting | Rack‑mount PCB type for Mark V cabinets |
| Operating Environment | Industrial control system environment |
| Typical Operating Temp | –20 °C to +70 °C (inferred typical industrial range) |
| Storage Temp | –40 °C to +85 °C (industry standard) |
| Humidity | 5 %–95 % non‑condensing (industry typical) |
| Dimensions (approx.) | ~216 mm × ~280 mm × ~25 mm (standard board rack‑mount format) |
| Weight | ~2.0 kg (board PCB with hardware) |
| Status | Legacy Mark V series module (obsolete/legacy but stocked as surplus) |
FAQ
FAQ
Q1. What is the main function of DS200UPLAG1BDA?
It’s a LAN power supply board that feeds power to communication/LAN components in Mark V turbine control systems, ensuring stable network operation.
Q2. Which GE series does this board belong to?
It is part of the Mark V DS200 series of turbine control system modules.
Q3. What connectors does the DS200UPLAG1BDA include?
It includes two 26‑pin connectors, one 8‑pin connector, plus one fuse and one toggle switch for configuration and access.
Q4. Are there any configuration options on this board?
Yes, it has multiple jumpers and switches (about 17 and 16 respectively) used for site‑specific and factory settings.
Q5. How do you mount this board?
It mounts inside a Mark V control rack as a printed circuit board, secured to the chassis or mounting points.
Q6. What type of environment is it designed for?
It’s engineered for industrial turbine and control system environments with standard temperature and humidity conditions.
Q7. Does this board have a reset option?
Yes, it has a physical reset button that can restart the board if needed.
Q8. Is DS200UPLAG1BDA still in production?
No — it is a legacy Mark V series module that is commonly available only as surplus or refurbished stock.
