Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model Number | DS215GASQG4AZZ01A |

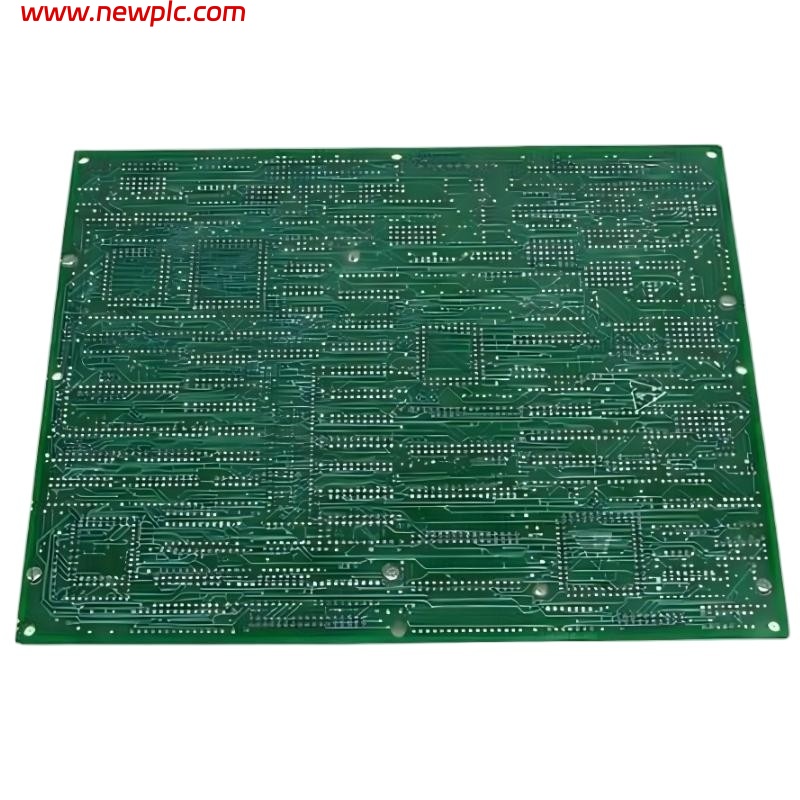

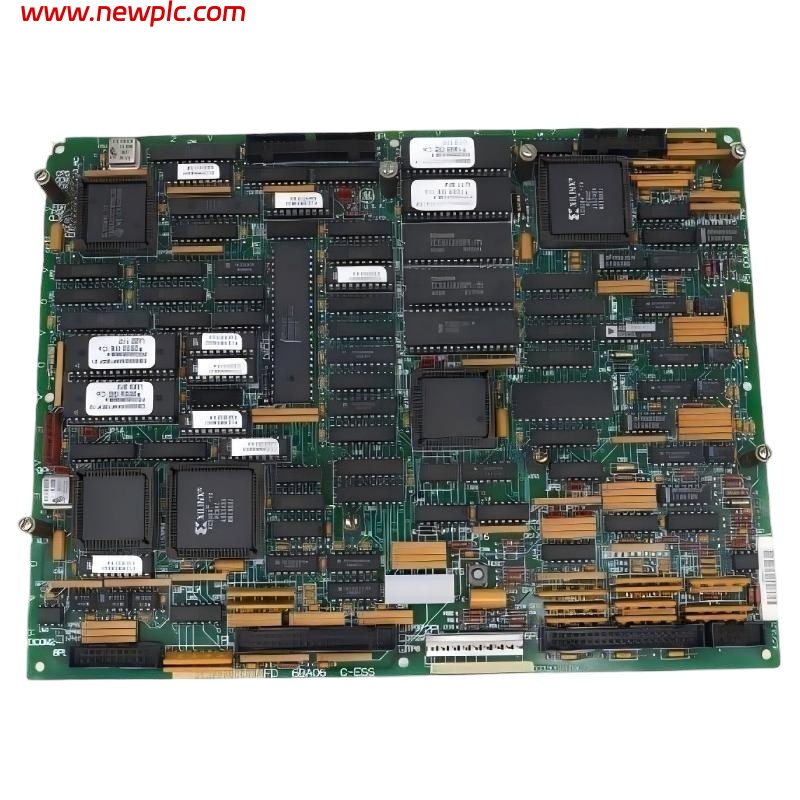

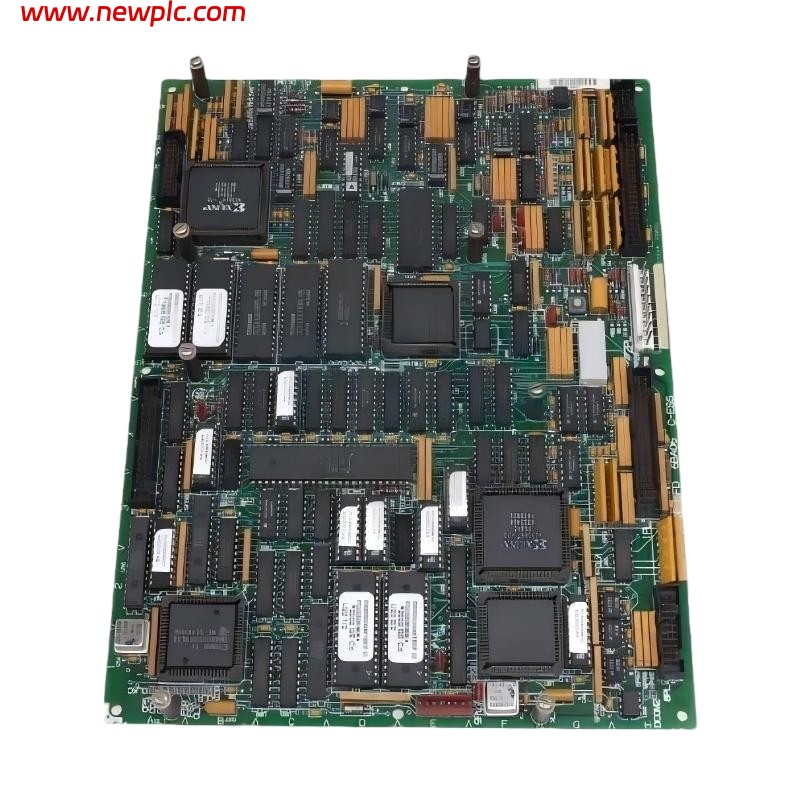

| Product Type | Integrated Turbine Control Card (DS215 Special Assembly) |
| Series | GE Speedtronic Mark V (DS200/DS215 family) |
| Function | Combines the main control processor module (DS200SDCCG4AEC) with LAN communications (DS200SLCCG3ACC) into a single control unit for turbine automation; centralizes core control, signal processing, and network communication. |
| Application | Gas and steam turbine control systems, turbine automation, and integration with plant control networks. |
| Core Processors | Multi‑processor architecture including main control and communication processors (DCP, MCP, CMP). |
| LAN Communication | Integrated LAN interface for data exchange and remote diagnostics. |
| Indicators | 10 front LEDs for status and fault codes. |
| Configurable Jumpers | JP/WJ jumpers for factory‑set options (no field changes recommended). |
| Operating Environment | Industrial turbine control environment; standard cabinet cooling and ventilation assumed. |
| Dimensions | Approx. 200 mm × 100 mm × 330 mm (height × width × depth). |
| Weight | Approx. 2.0 kg. |
| Power Requirements | Supplied from Mark V backplane power rails (typical 24 V DC logic and rack supplies). (Industry standard) |
| Status | Legacy control board; typically available as surplus, rebuilt, or refurbished part. |
FAQ
FAQ
Q1. What is the DS215GASQG4AZZ01A used for?
It is an integrated turbine control card that brings together main control processing and LAN communication in a Mark V Speedtronic system.
Q2. Which GE control system series does this board belong to?
This board is part of the GE Speedtronic Mark V (DS200/DS215) family used in turbine control applications.
Q3. What are its main functional components?
It includes core processing units for control logic and a LAN communications interface for networked data exchange.
Q4. Does it include status indicators?
Yes — the board has 10 LEDs on the front to show operational status and error codes.
Q5. What are the approximate physical dimensions of this module?
It measures about 200 mm in height, 100 mm in width, and 330 mm in depth.
Q6. How much does DS215GASQG4AZZ01A weigh?
The board weighs approximately 2 kg.
Q7. Where is this board installed?
It mounts inside a GE Mark V turbine control cabinet, typically in the core control slot.
Q8. Is the DS215GASQG4AZZ01A still manufactured?
No — it is a legacy Mark V control assembly and is generally available as surplus, refurbished, or rebuilt rather than new production.
