Technical Specifications
| Item | Specification |
|---|---|

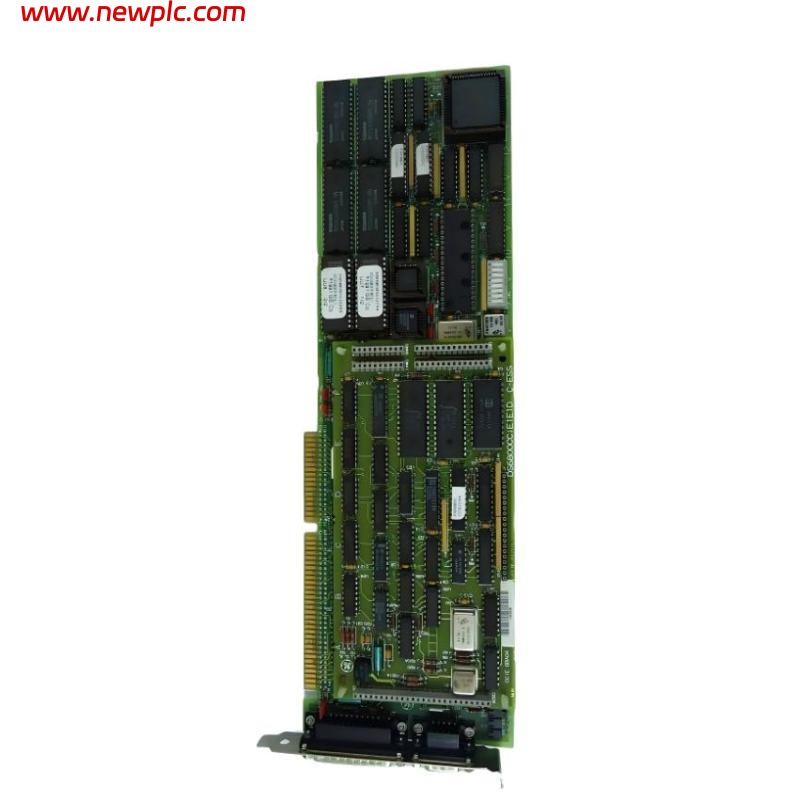

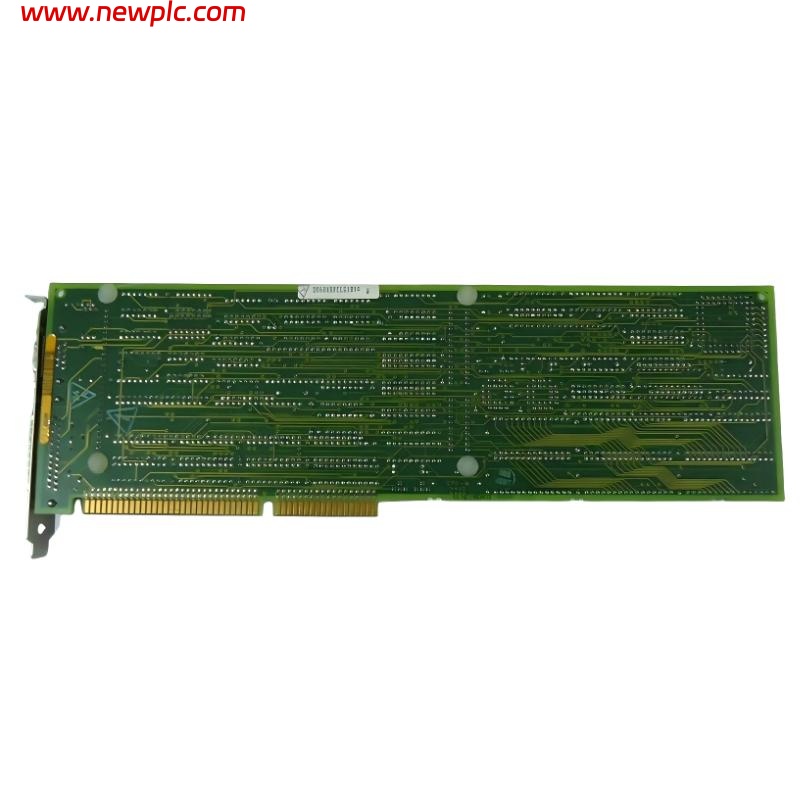

| Model | GE DS6815PCLG1B1A (DS6800CCIC1F1C + DS6800CCIE1E1D) |
| Product Type | Circuit Board |
| Function | Signal processing and interface for turbine and industrial control systems |
| Supported Signals | Analog, digital, and discrete inputs/outputs |
| Analog Input Range | 0–10 VDC |
| Analog Output Range | 0–10 VDC |
| Digital Input Voltage | 24 VDC |
| Digital Output | Relay contact 5 A @ 250 VAC / 30 VDC (resistive) |
| Isolation Type | Optical and reinforced isolation between input, output, and logic sections |
| Isolation Voltage | 1500 VAC |
| Response Time | < 5 ms (digital), < 20 ms (analog) |
| Accuracy | ±0.2% full scale (analog) |
| Interface | Backplane connector / ribbon cable |
| Mounting | Control rack slot |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH (non-condensing) |
| Power Consumption | < 7 W |
| PCB Material | Industrial FR-4 |
| Coating | Conformal coating |
| Dimensions (L × W × H) | 270 × 185 × 32 mm |
| Weight | 0.68 kg |
FAQ
FAQ
Q1: What types of signals does this circuit board handle?
A1: The board handles analog inputs/outputs, digital inputs/outputs, and discrete signals for integration with turbine and industrial control systems.
Q2: Is isolation provided between input and output sections?
A2: Yes, optical and reinforced isolation separates input, output, and logic sections to protect the control system and maintain signal integrity.
Q3: How fast can the board respond to input changes?
A3: Digital channels respond in under 5 ms, while analog channels respond in under 20 ms under typical conditions.
Q4: Can the analog channels accept current signals?
A4: This board is designed for voltage input (0–10 VDC); current signals must be converted externally.
Q5: What is the accuracy of analog outputs?
A5: Analog outputs provide ±0.2% full-scale accuracy with high-precision DACs and hardware filtering.
Q6: Are relay outputs protected against inductive spikes?
A6: Yes, integrated suppression circuitry protects the relay contacts from voltage spikes.
Q7: Can multiple boards be installed in a single control rack?
A7: Yes, multiple boards can operate in the same rack if slot allocation and power limitations are followed.
Q8: Does the board require firmware or local configuration?
A8: No onboard firmware or configuration is required; all logic and signal management are handled by the control system software.
