Technical Specifications
| Item | Specification |
|---|---|

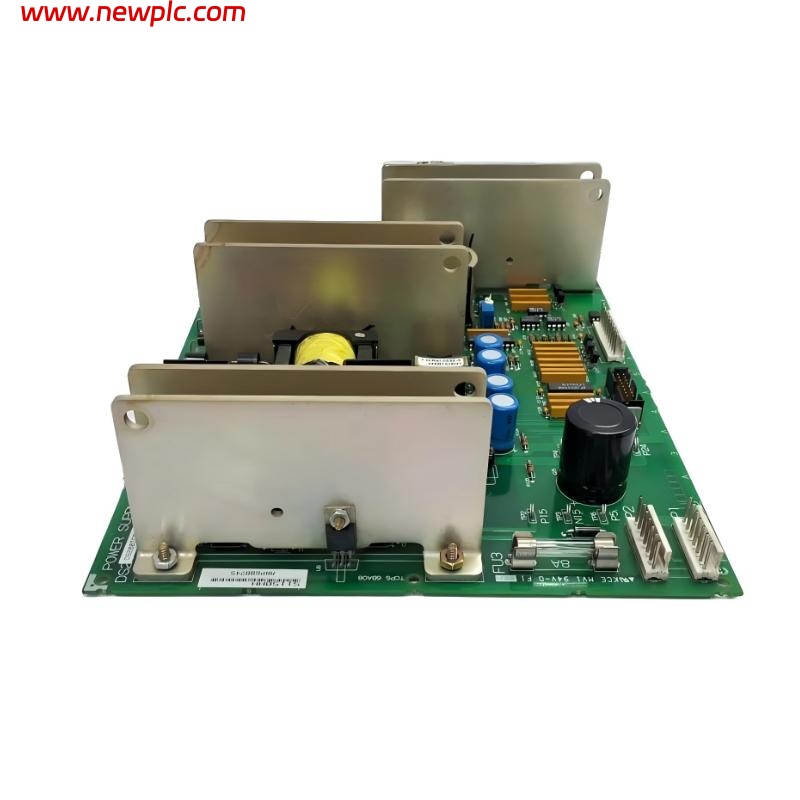

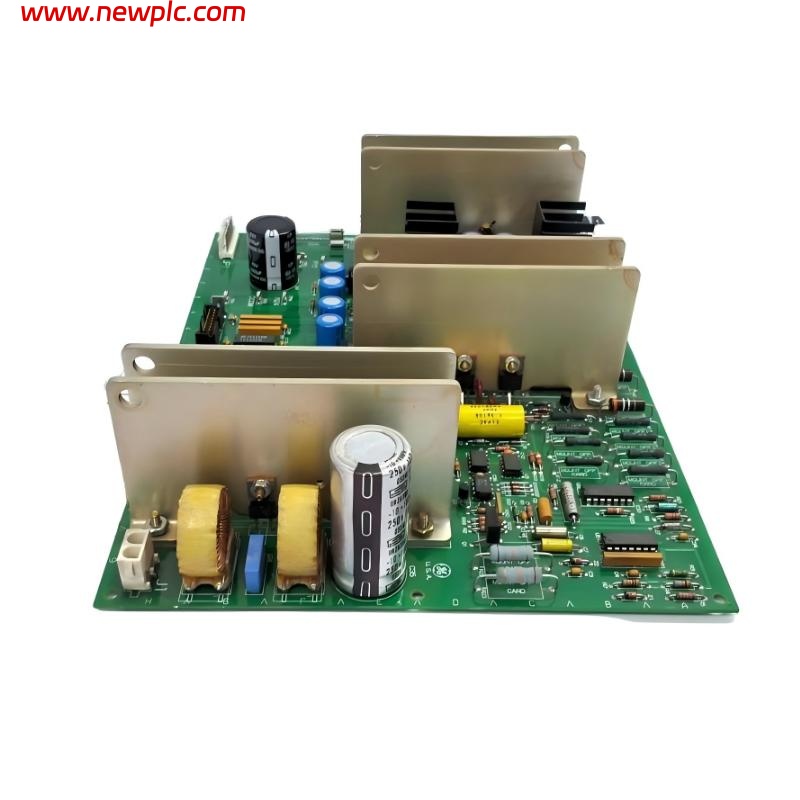

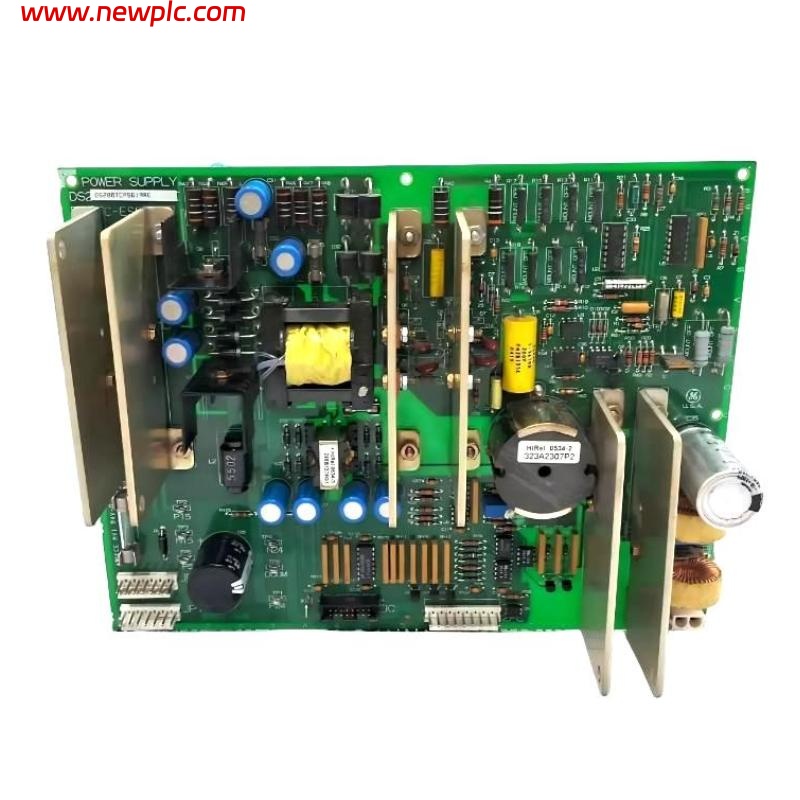

| Product Type | DC Power Input Board |
| Model | DS200TCPSG1ARE |
| Series | GE Fanuc |
| Function | Provides DC power input and distribution to control system modules |
| Input Voltage | 24 VDC / 48 VDC |
| Max Current | 15 A |
| Operating Temperature | 0℃ ~ 55℃ |
| Storage Temperature | -20℃ ~ 70℃ |
| Dimensions | 300 x 120 x 45 mm |
| Weight | 1.45 kg |
| Mounting | Plug-in / rack mount |
FAQ
FAQ
Q1: What is the main function of the DS200TCPSG1ARE?
A1: Provides DC power input and distribution for GE Fanuc control systems, ensuring stable power to modules.
Q2: What input voltages are supported?
A2: Supports 24 VDC and 48 VDC.
Q3: What is the maximum output current?
A3: Maximum output current is 15 A.
Q4: What is the operating temperature range?
A4: Operating temperature is 0℃ to 55℃.
Q5: What is the storage temperature range?
A5: Storage temperature is -20℃ to 70℃.
Q6: What are the board dimensions and weight?
A6: Dimensions are 300 x 120 x 45 mm, weight approx. 1.45 kg.
Q7: How is the DC power input board mounted?
A7: Can be plug-in or rack-mounted, suitable for fixed installation inside control cabinets.
Q8: Which systems is this module mainly used in?
A8: Mainly used in GE Fanuc automation control systems and PLC modules.
