Technical Specifications
| Item | Specification |
|---|---|

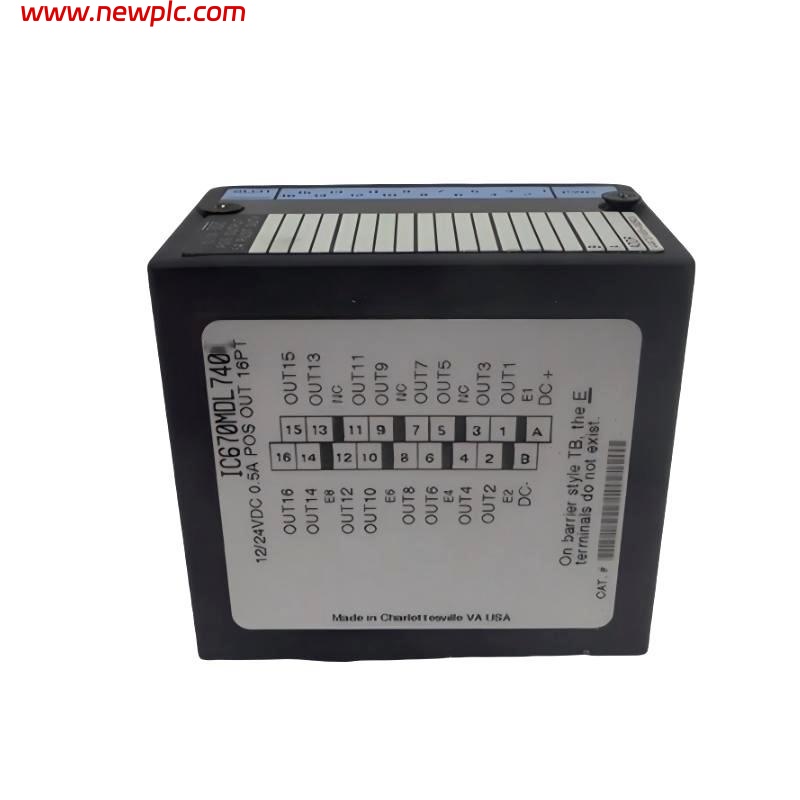

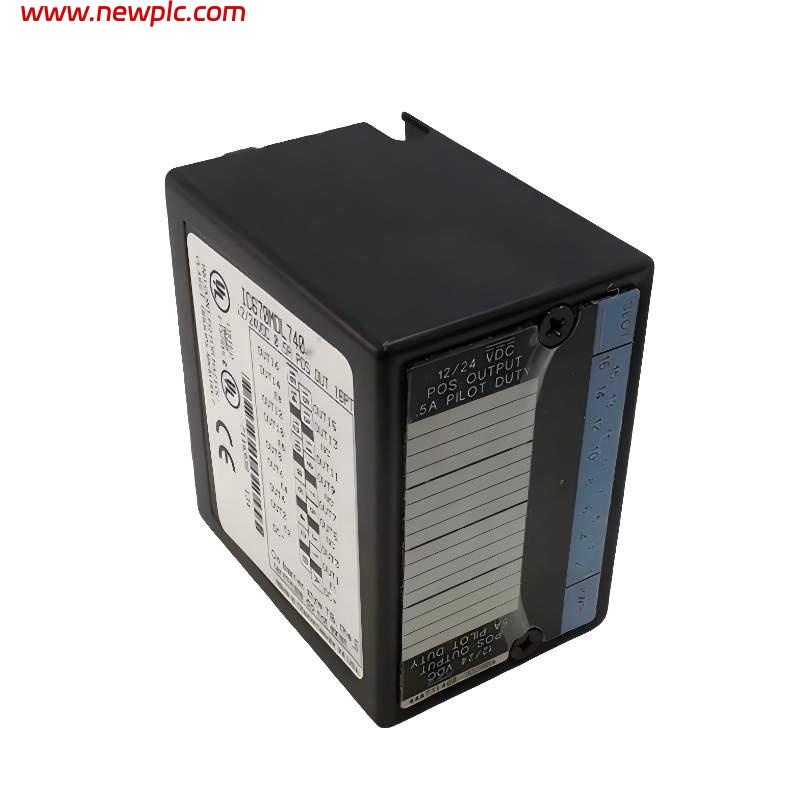

| Product Model | GE Fanuc IC670MDL740 |
| Product Type | Discrete Output Module |
| Series | GE Fanuc Genius I/O Series |
| Function | Provides digital control signals for operating relays, lamps, valves, and motors |
| Output Channels | 16 channels |
| Output Type | Transistor (sourcing) |
| Rated Output Voltage | 24 VDC |
| Allowable Voltage Range | 10–30 VDC |
| Max Current per Channel | 0.5 A |
| Total Module Current | Max 8 A |
| Output Status Indication | Individual LED per channel |
| Isolation | Optical isolation between field and logic circuits |
| Short Circuit Protection | Built-in overcurrent protection |
| Communication Interface | Genius I/O bus |
| Power Supply | Via I/O rack |
| Current Consumption | Max 120 mA |
| Diagnostic Function | Channel status and fault detection |
| Dimensions | 103.9 × 50.3 × 150 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What is the main function of the GE Fanuc IC670MDL740 module?
A1: It provides digital output control to operate field devices such as solenoid valves, contactors, and indicator lamps.
Q2: How many output channels does it offer?
A2: The module offers 16 independent discrete output channels.
Q3: What is the output type?
A3: It uses a sourcing transistor output, suitable for 24VDC control systems.
Q4: What is the maximum current per channel?
A4: Each output channel can deliver up to 0.5 A.
Q5: What are the module’s dimensions and weight?
A5: The dimensions are 103.9 × 50.3 × 150 mm, and the weight is 0.3 kg.
Q6: Does it provide short-circuit protection?
A6: Yes, it includes built-in short-circuit and overcurrent protection.
Q7: How is output status indicated?
A7: Each output channel has an individual LED indicator for real-time status display.
Q8: In which industries is this module commonly used?
A8: It is widely used in power control, process automation, machinery manufacturing, and industrial production systems.
