Technical Specifications
| Item | Description |
|---|---|

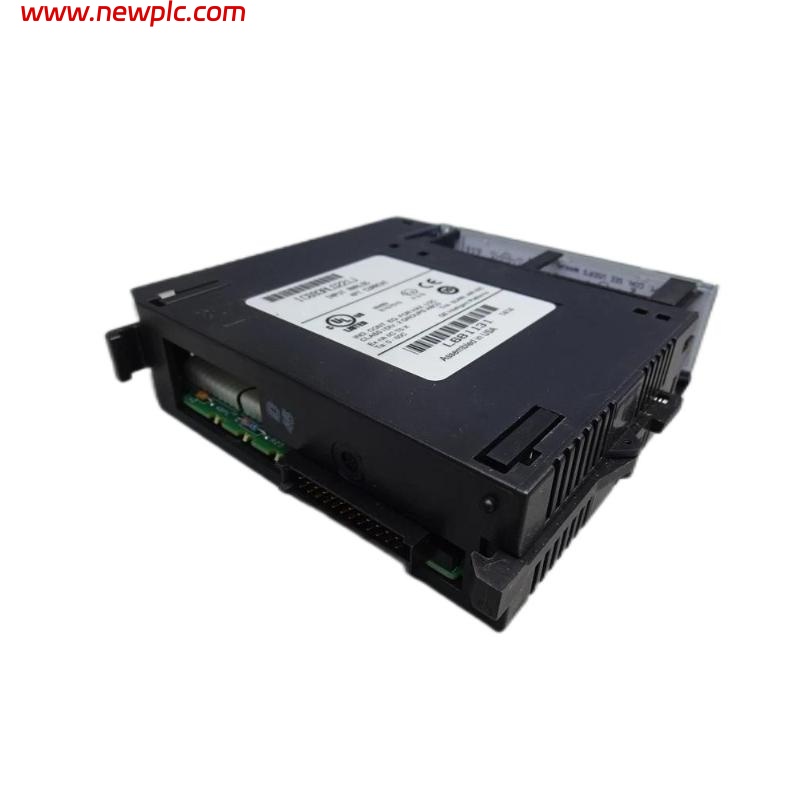

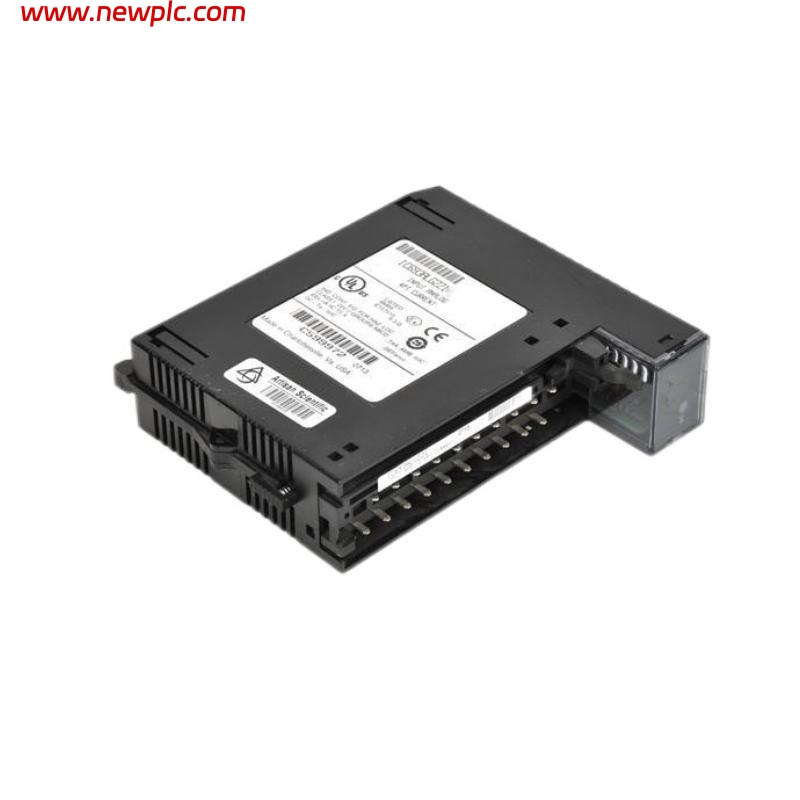

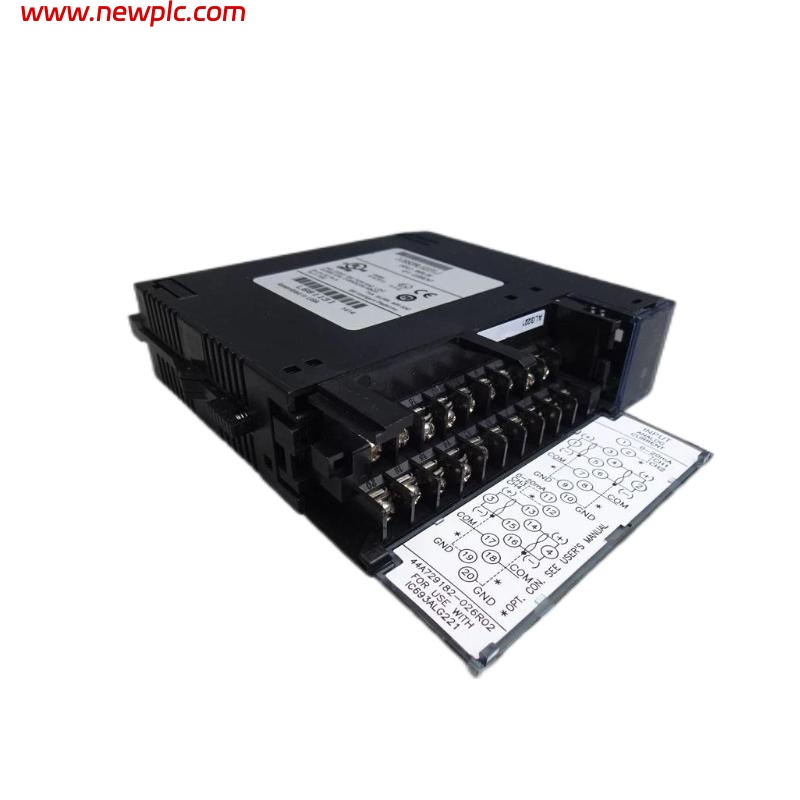

| Model | IC693ALG221 |
| Product Name | Analog Input Module |
| Manufacturer | GE Fanuc Automation |
| Channels | 4 differential analog input channels |
| Input Type | Voltage or current (configurable) |
| Range | 0–10 V, ±10 V, 0–20 mA, or 4–20 mA |
| Input Impedance | Voltage ≥ 100 kΩ, Current 250 Ω |
| Resolution | 16-bit A/D converter |
| Sampling Rate | 250 μs per channel |
| Isolation Voltage | 1500 VAC channel-to-ground |
| Accuracy | ±0.1% full scale (typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Power Consumption | Approx. 2.5 W |
| Mounting Method | DIN rail or modular backplane mounting |
| Protection Rating | IP20 (for cabinet installation) |
| Housing Material | Engineering plastic, flame-retardant UL94V-0 |
| Dimensions | 120 x 40 x 100 mm |
| Weight | 0.25 kg |
FAQ
FAQ
Q1: What is the main function of the IC693ALG221?
A1: It collects field analog signals (voltage or current) and converts them into digital signals for use by GE Fanuc control systems.
Q2: How many analog input channels does the module have?
A2: The module provides 4 differential analog input channels.
Q3: What types of input signals are supported?
A3: 0–10 V, ±10 V voltage inputs, and 0–20 mA, 4–20 mA current inputs.
Q4: What is the resolution of the module?
A4: 16-bit A/D conversion for high-precision measurement.
Q5: Is the input isolated?
A5: Yes, channel-to-ground isolation voltage is up to 1500 VAC.
Q6: What is the sampling rate?
A6: 250 μs per channel.
Q7: How is the module mounted?
A7: It can be mounted on a DIN rail or modular backplane for easy cabinet integration.
Q8: What are the advantages of using this module?
A8: High accuracy, high isolation, support for multiple input types, ensuring stable and reliable analog signal acquisition.
