Technical Specifications
| Item | Specification |
|---|---|

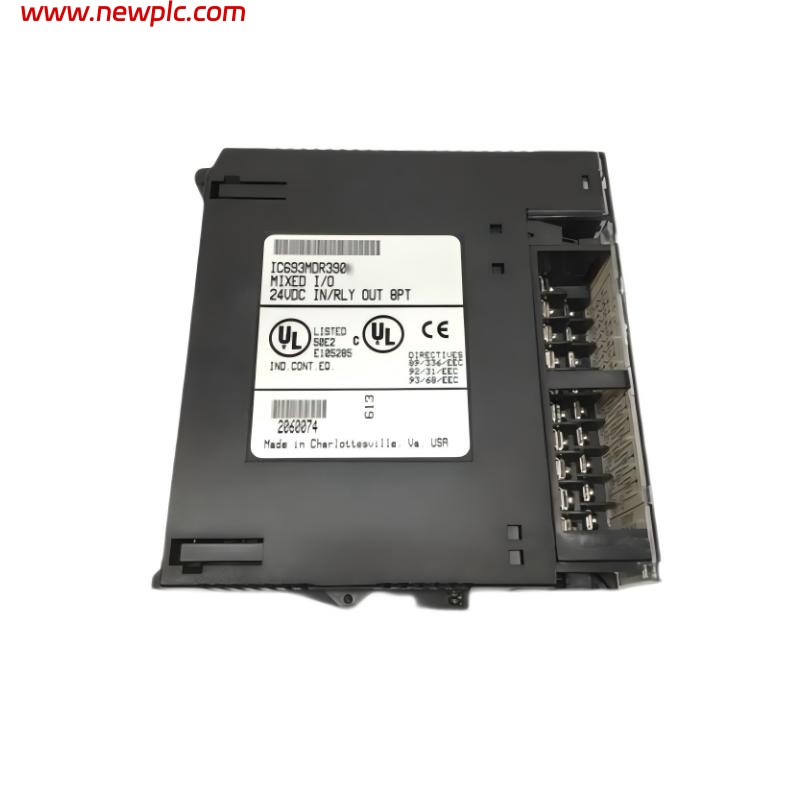

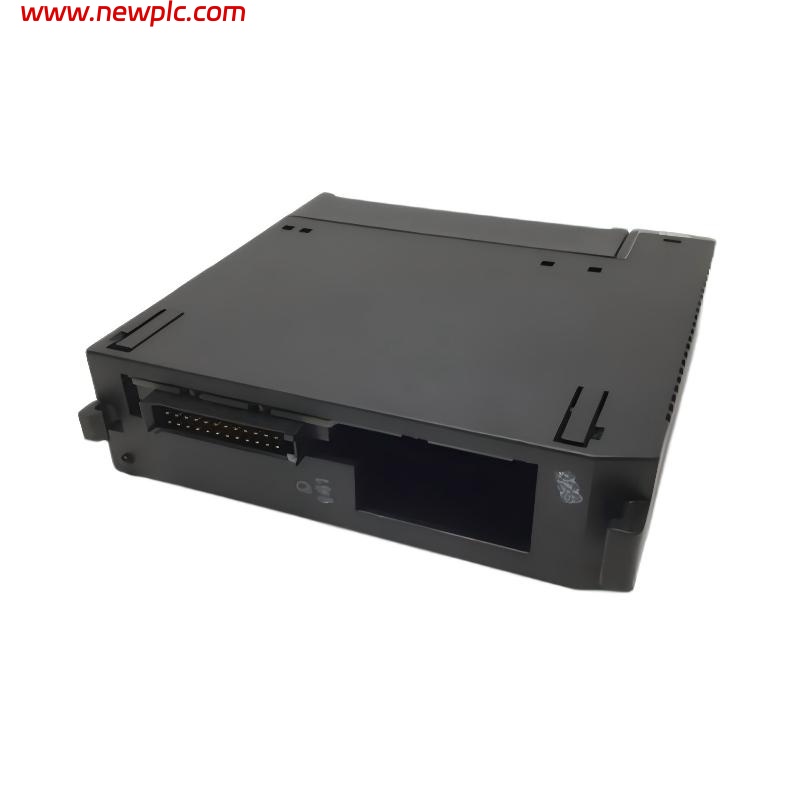

| Product Model | GE Fanuc IC693MDR390 |
| Product Type | Relay I/O Module |
| Input Points | 16 points |
| Output Points | 16 points |
| Output Type | SPST relay output |
| Input Type | Relay input or dry contact input |
| Input Voltage Range | 24–250 VAC / 24–30 VDC |
| Output Voltage Range | 24–250 VAC / 24–30 VDC |
| Maximum Output Current | 2 A per point |
| Response Time | Output: OFF < 5 ms, ON < 10 ms |
| Channel Grouping | 8 points per group for input/output, 2 groups total |
| Isolation | Optical isolation (1500 V between logic and I/O) |
| Power Supply Voltage | 5 VDC (logic) |
| Power Consumption | 3 W (typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 122 × 82 × 60 mm |
| Weight | 1.36 kg |
FAQ
FAQ
Q1: What is the primary function of the IC693MDR390 module?
A1: Provides relay input and output interfaces, converting PLC signals into electrical signals to control external devices.
Q2: How many input and output points does the module provide?
A2: 16 input points and 16 output points, for a total of 32 points.
Q3: What type of output does it use?
A3: SPST relay output, suitable for both AC and DC loads.
Q4: What is the maximum output current per point?
A4: 2 A per point.
Q5: What is the response time of the outputs?
A5: Turn-on time < 10 ms, turn-off time < 5 ms.
Q6: What should be considered during installation?
A6: Ensure the module is securely seated in the rack and protected from static, overvoltage, or high current surges.
Q7: What are the module’s dimensions and weight?
A7: Dimensions are 122 × 82 × 60 mm, weight is 1.36 kg.
Q8: In which industries is this module typically used?
A8: Commonly used in automation, process control, manufacturing systems, and power systems.
