Technical Specifications
| Item | Specification |
|---|---|

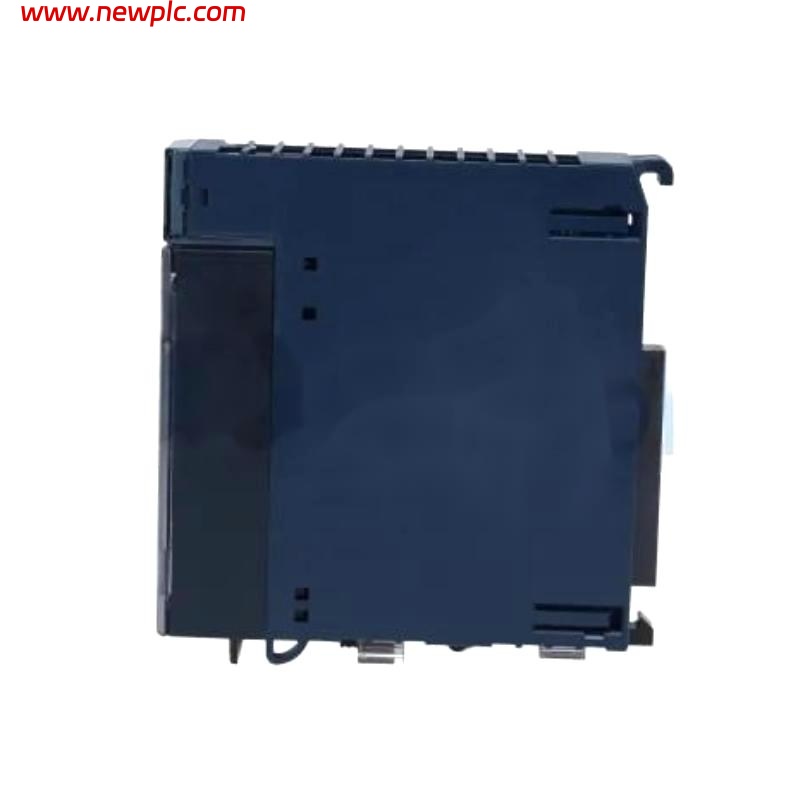

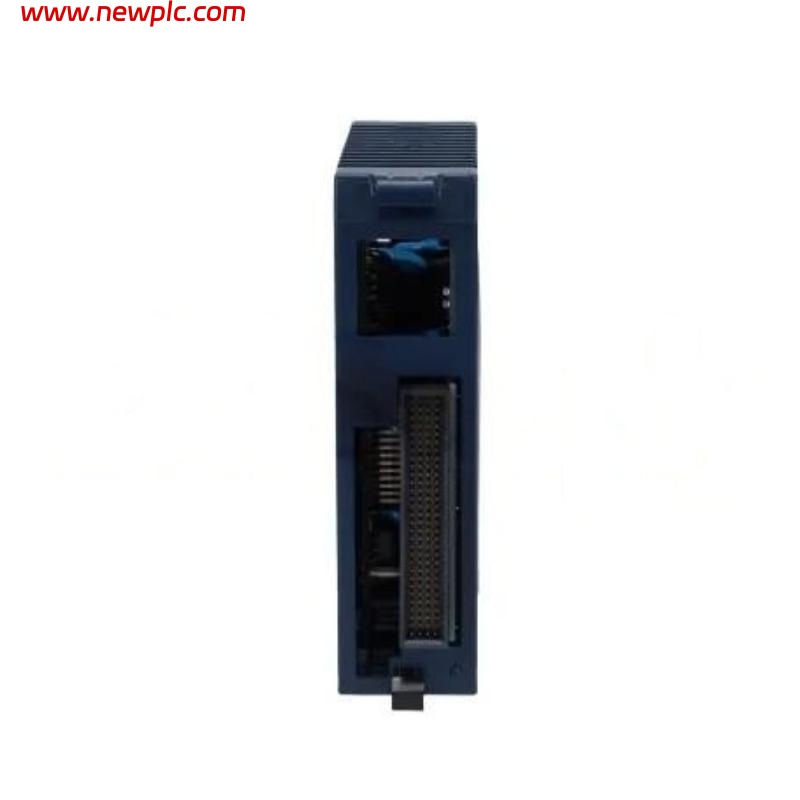

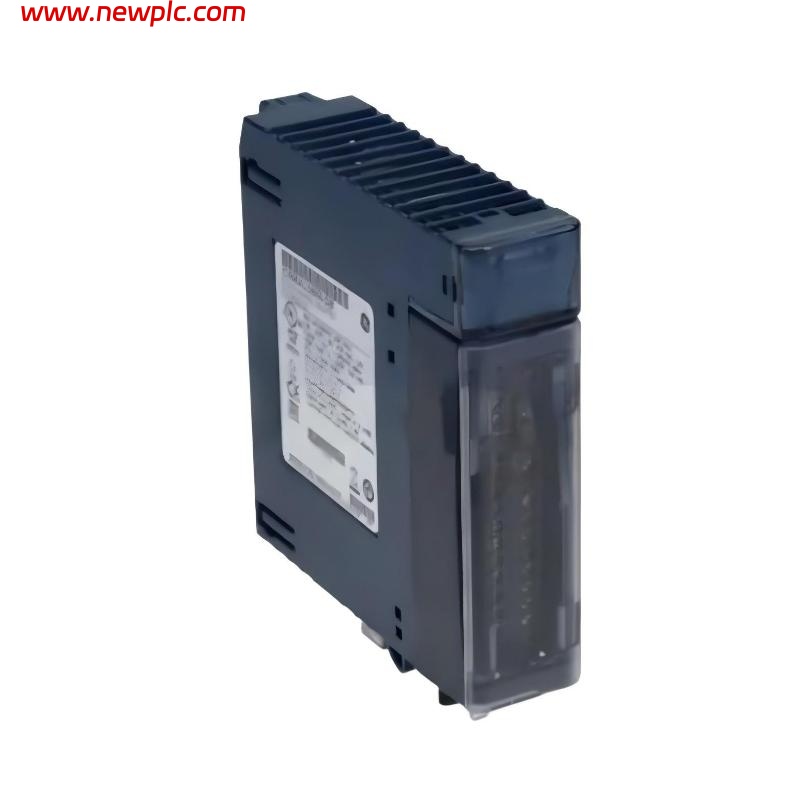

| Model | GE Fanuc IC695ALG508 RX3i Analog Input Module |
| Function | Provides high-precision analog signal acquisition supporting multiple current and voltage types |
| Module Type | Analog Input Module |
| Channels | 8 differential input channels |
| Input Type | Configurable for voltage or current |
| Input Range | ±10V, 0–10V, 0–20mA, 4–20mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-bus isolation |
| Update Rate | 5 ms per channel (typical) |
| Power Supply | 24 V DC (±10%) |
| Power Consumption | 2.5 W (typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Method | RX3i rack-mounted slot |
| Protection Rating | IP20 |
| Dimensions | 34 x 140 x 145 mm |
| Weight | 0.41 kg |
FAQ
FAQ
Q1: What is the main function of the IC695ALG508 module?
A1: It converts analog field signals (current or voltage) into digital data for processing by the PLC, enabling accurate signal monitoring.
Q2: How many input channels does the module have?
A2: The module provides 8 differential analog input channels.
Q3: Can it support both current and voltage signals?
A3: Yes, each channel can be individually configured for current or voltage input.
Q4: What is the input accuracy of this module?
A4: The module provides ±0.1% full-scale accuracy.
Q5: Does the module offer electrical isolation?
A5: Yes, there is isolation between the input channels and the bus for signal integrity and system safety.
Q6: How is the module installed?
A6: It installs easily into an RX3i rack-mounted slot.
Q7: What is the resolution of the IC695ALG508?
A7: It features 16-bit resolution for precise analog measurements.
Q8: What is the operating temperature range?
A8: The operating temperature range is 0°C to +60°C, suitable for industrial environments.
