Technical Specifications
| Item | Specification |
|---|---|

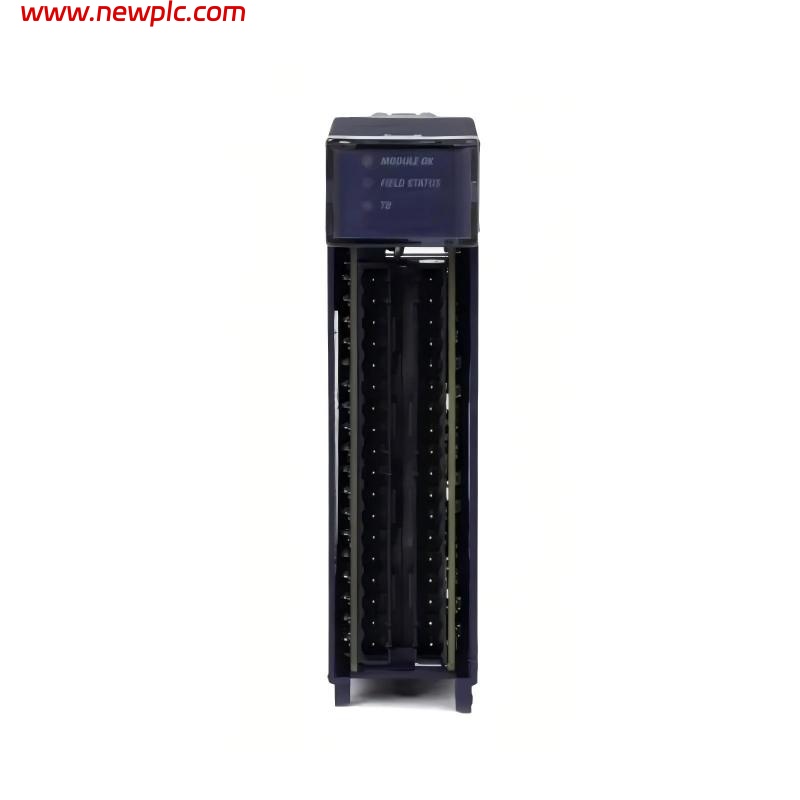

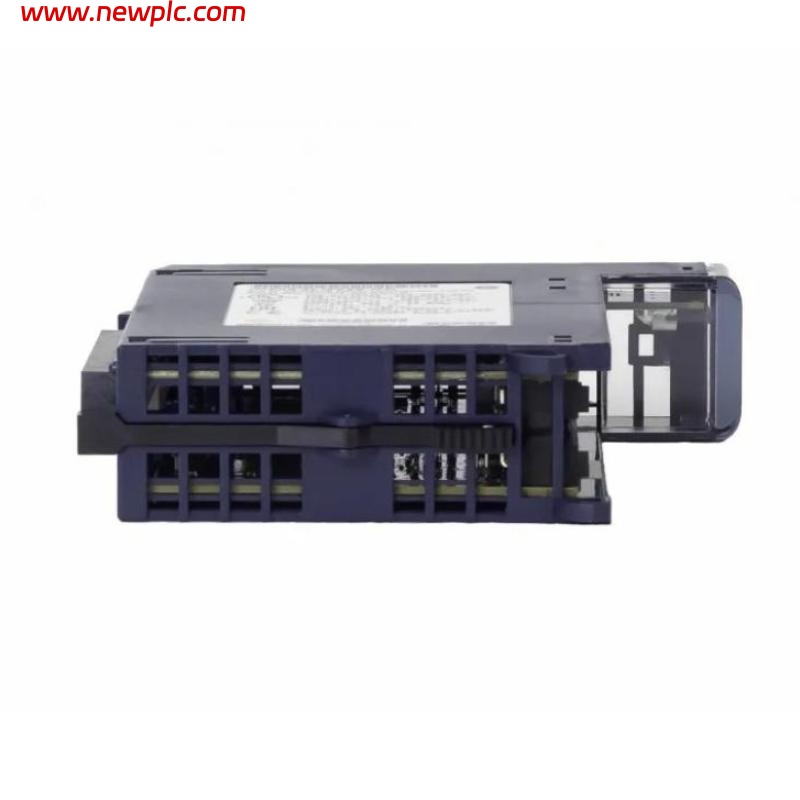

| Model | GE Fanuc IC695ALG626 RX3i Analog Input Module |
| Function | Provides high-accuracy analog signal acquisition for voltage and current inputs in industrial control systems |
| Module Type | Analog Input Module |
| Channels | 16 single-ended or 8 differential (configurable) |
| Input Type | Configurable for voltage or current |
| Input Range | ±10V, 0–10V, 0–20mA, 4–20mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-bus electrical isolation |
| Update Rate | 5 ms per channel (typical) |
| Power Supply | 24 V DC (±10%) |
| Power Consumption | 3.0 W (typical) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Method | RX3i rack-mounted slot |
| Protection Rating | IP20 |
| Dimensions | 34 x 140 x 145 mm |
| Weight | 0.227 kg |
FAQ
FAQ
Q1: What is the main function of the IC695ALG626 module?
A1: It collects analog voltage or current signals from field devices and converts them into digital data for the PLC to process.
Q2: How many input channels does the module support?
A2: It supports 16 single-ended or 8 differential channels, depending on configuration.
Q3: Can voltage and current inputs be mixed?
A3: Yes, each channel can be individually configured for voltage or current input.
Q4: What is the resolution of the IC695ALG626?
A4: The module provides 16-bit resolution for high-precision analog measurements.
Q5: Does the module provide electrical isolation?
A5: Yes, there is channel-to-bus isolation for improved system safety and signal integrity.
Q6: What is the power supply requirement?
A6: It operates on 24 V DC with a tolerance of ±10%.
Q7: How is the module installed?
A7: It is mounted in a GE RX3i rack slot for easy installation and integration.
Q8: What is the operating temperature range?
A8: The module operates between 0°C and +60°C, suitable for industrial environments.
