Technical Specifications
| Item | Specification |
|---|---|

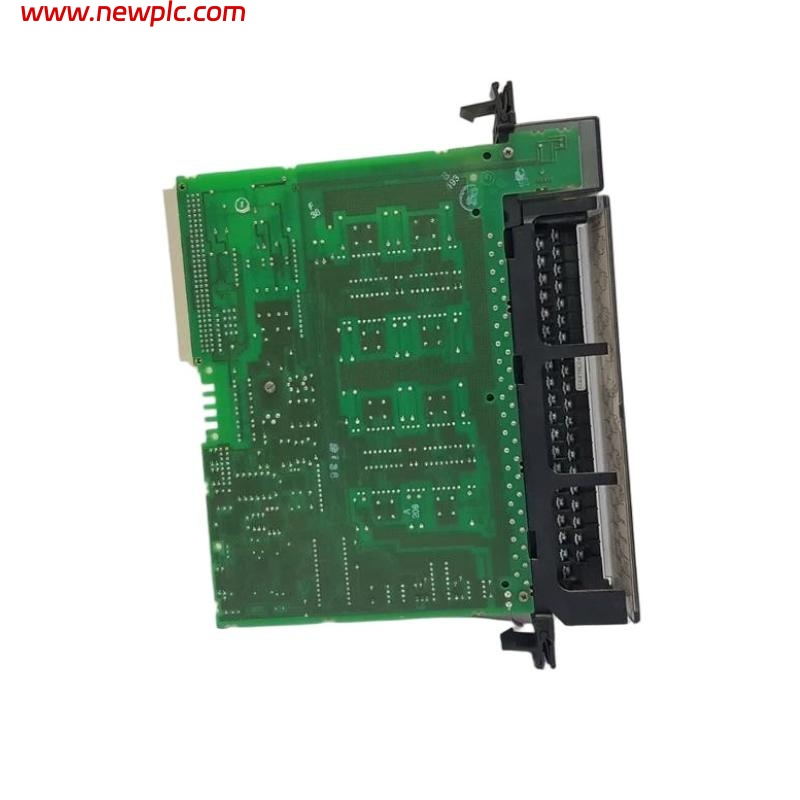

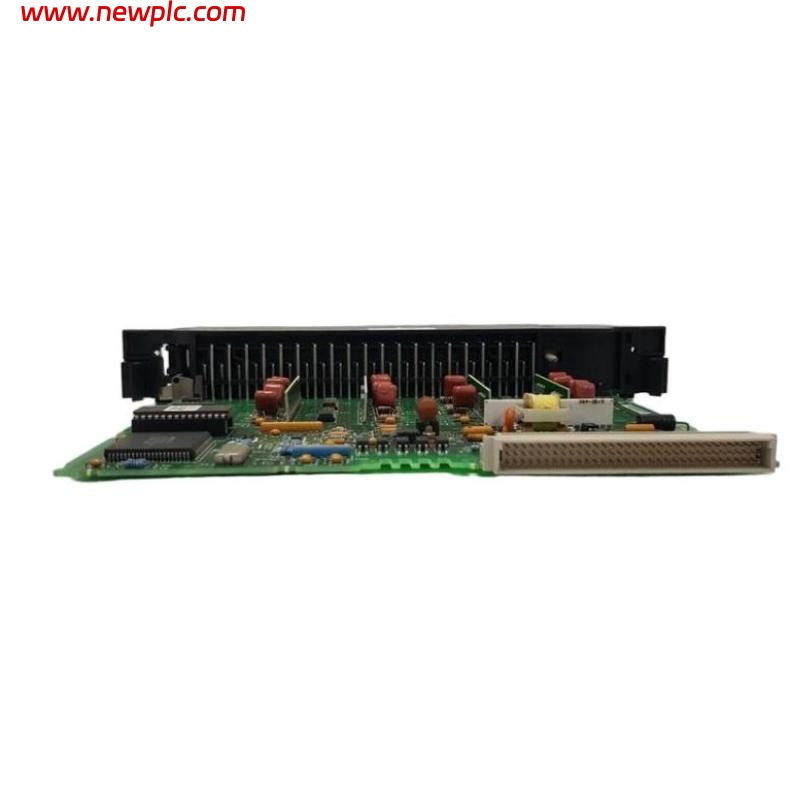

| Model | GE Fanuc IC697ALG440 |
| Type | Analog Input Current Expansion Module |
| Series | IC697 Series |
| Manufacturer | GE Fanuc |
| Input Channels | 16 channels |
| Input Type | Current (4–20 mA) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Input Impedance | 250 Ω |
| Sampling Rate | 10 ms per channel |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | –40°C to +85°C (–40°F to 185°F) |
| Power Requirements | 5 VDC ±5%, 250 mA typical |
| Dimensions | 138 × 70 × 25 mm |
| Weight | 0.64 kg |
FAQ
FAQ
Q1: What is the primary purpose of this module?
It is used to expand the analog current input channels of GE Fanuc PLC systems, capable of monitoring 4–20 mA signals.
Q2: How many input channels does it have?
The module provides 16 independent analog input channels.
Q3: What input signal range is supported?
Supports 4–20 mA current input signals.
Q4: What is the resolution and accuracy of the module?
16-bit resolution with ±0.1% full-scale accuracy.
Q5: Does it provide isolation protection?
Yes, channel-to-channel and channel-to-backplane isolation are provided.
Q6: What is the operating temperature range?
Operating temperature is 0°C to 60°C (32°F to 140°F).
Q7: What are the module dimensions?
Dimensions are 138 × 70 × 25 mm, compatible with standard IC697 series racks.
Q8: What is the power consumption?
Requires 5 VDC ±5%, typical current 250 mA.
