Technical Specifications
| Item | Specification |
|---|---|

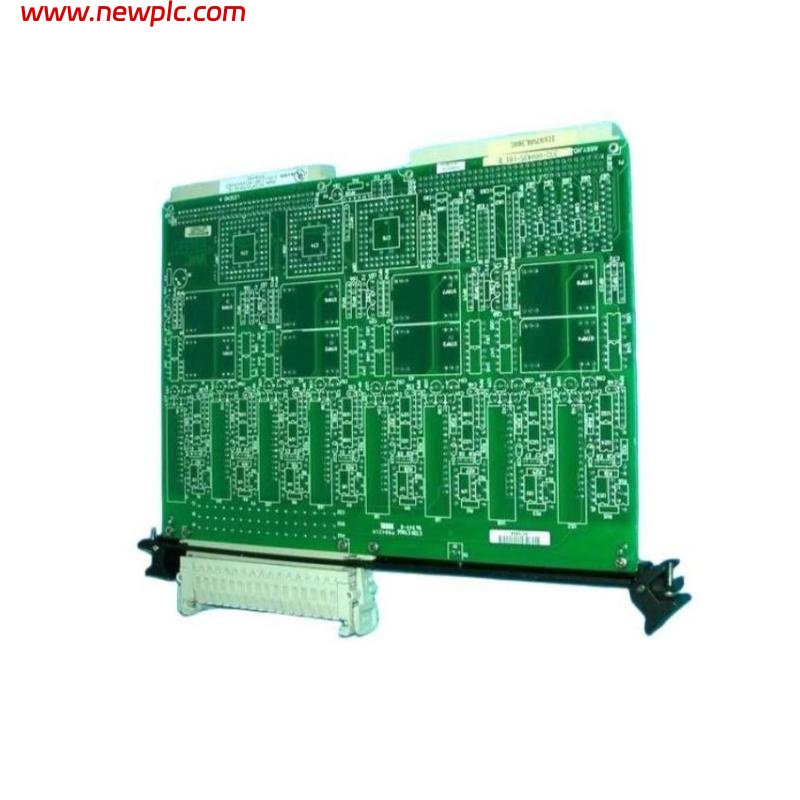

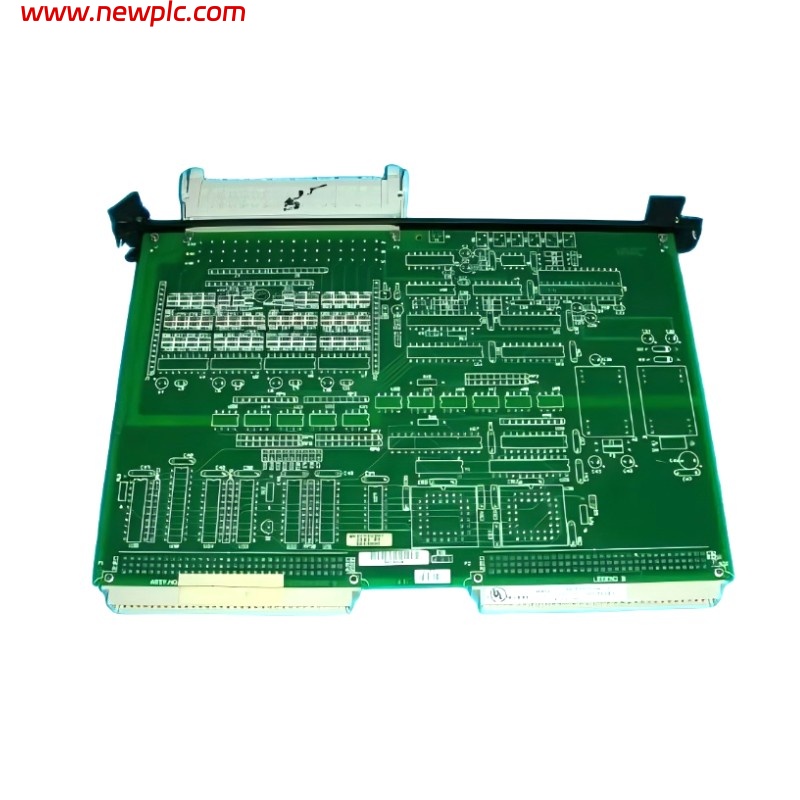

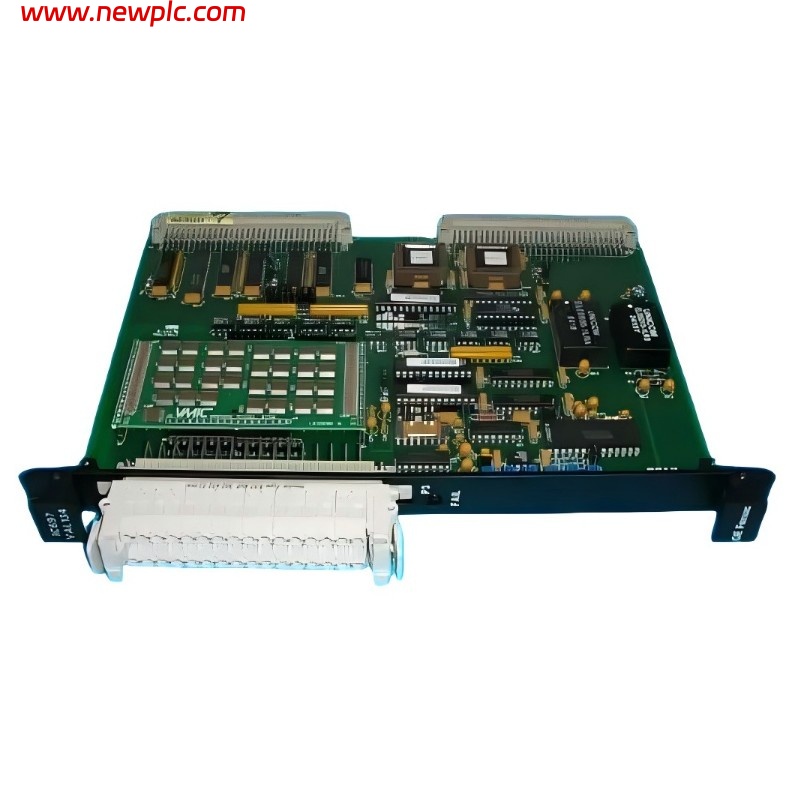

| Model | GE Fanuc IC697VAL134 |
| Product Type | Analog Input Module for Series 90-70 PLC |
| Channels | 8 differential analog input channels |
| Input Range | ±10 V, 0–20 mA, or 4–20 mA (software selectable) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Sampling Rate | 10 ms per channel |
| Isolation | Optical isolation between channels and bus |
| Power Supply | Powered by PLC rack backplane |
| Weight | 1.36 kg |
| Dimensions | 180 × 41 × 152 mm |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –25 °C to +70 °C |
| Protection Class | IP20 |
FAQ
FAQ
Q1: What is the main function of the IC697VAL134?
A1: It provides 8 differential analog inputs to Series 90-70 PLCs, supporting voltage and current signals.
Q2: What input ranges are supported?
A2: ±10 V, 0–20 mA, and 4–20 mA, selectable via software.
Q3: How many channels does it have?
A3: 8 differential channels.
Q4: What is the resolution and accuracy?
A4: 16-bit resolution with ±0.1% full-scale accuracy.
Q5: What is the sampling rate?
A5: 10 ms per channel.
Q6: Is there isolation between channels and bus?
A6: Yes, optical isolation is provided for safety and signal integrity.
Q7: What are the dimensions and weight?
A7: Dimensions: 180 × 41 × 152 mm; Weight: 1.36 kg.
Q8: What is the operating temperature range?
A8: 0 °C to +60 °C; Storage: –25 °C to +70 °C.
