Technical Specifications
| Parameter | Details |
|---|---|

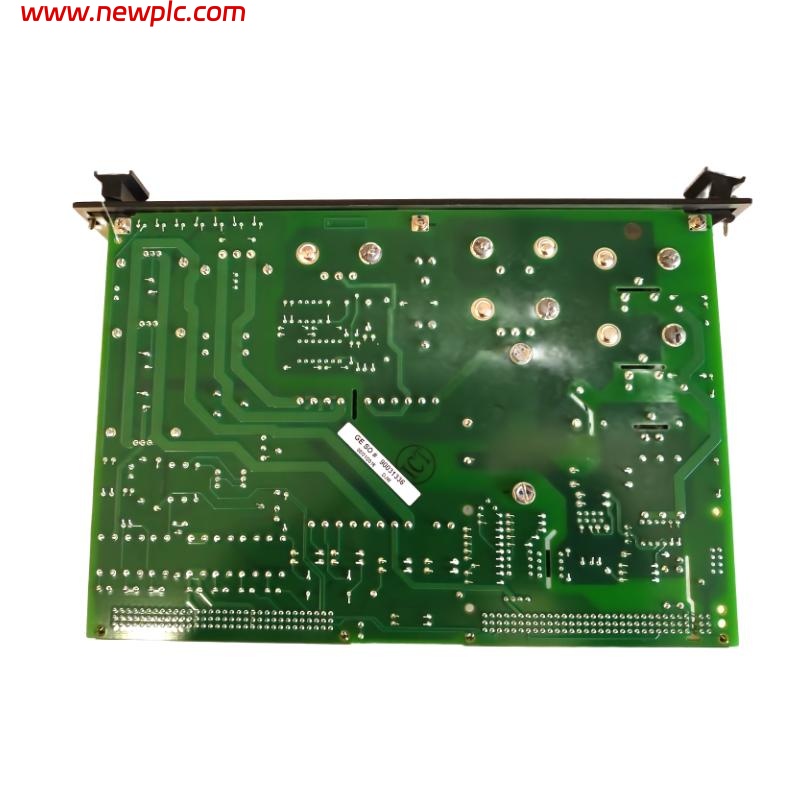

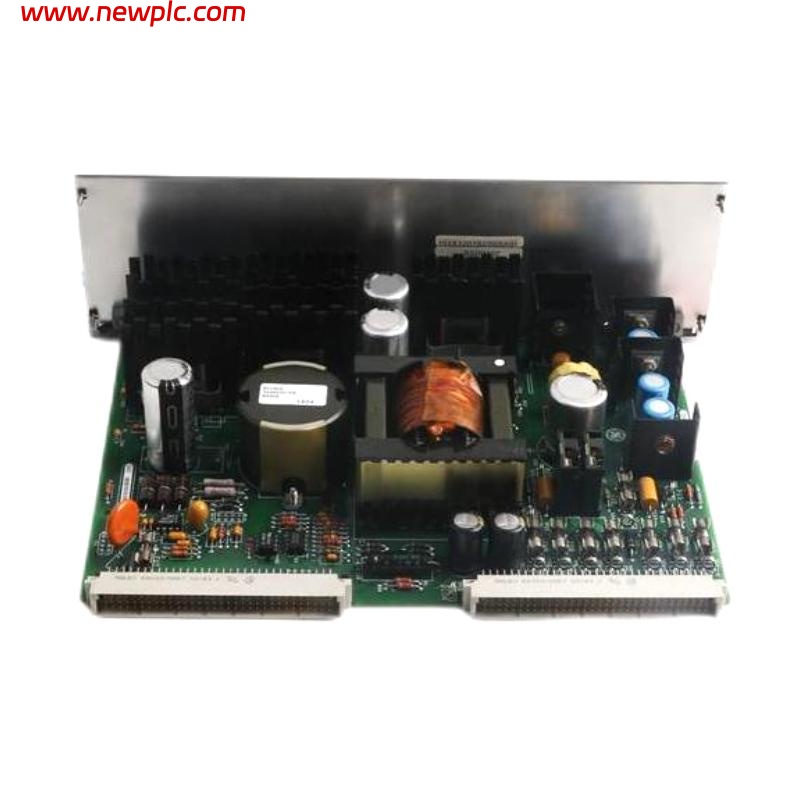

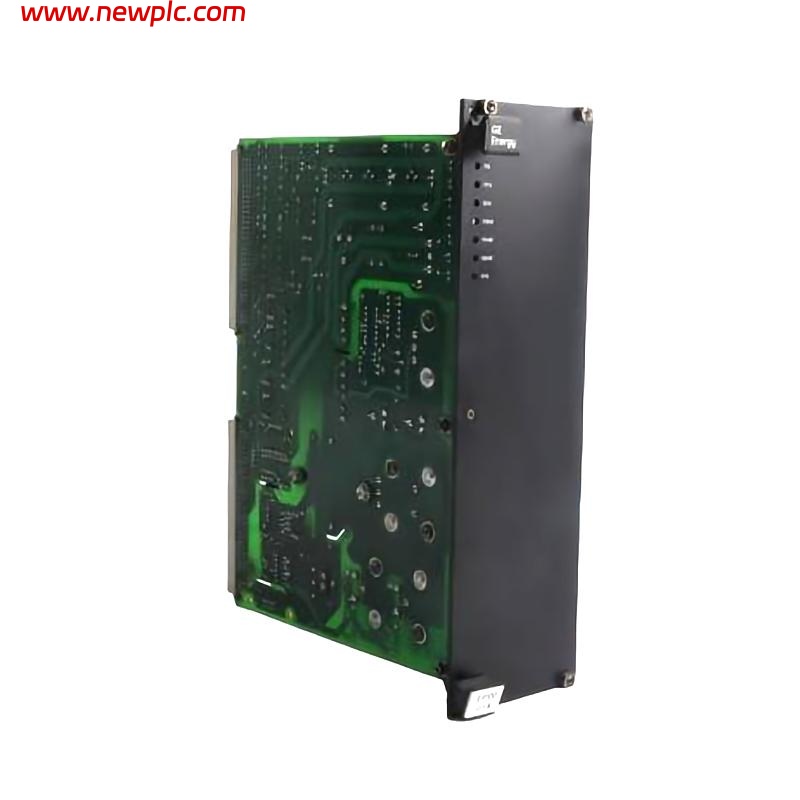

| Model | IS200EPSMG1A |
| Module Type | Exciter Power Supply Module |
| Application | GE EX2100 / Excitation Control System |
| Input Voltage | 125 V DC supplied from the exciter distribution module |
| Output Voltages | +5 V DC, +15 V DC, +24 V DC control power |
| Additional Outputs | +24 V DC for auxiliary devices; isolated +70 V DC for terminal-board contact wetting |
| Function | Converts 125 V DC to regulated control voltages for exciter controllers and external modules |
| Supported Loads | Control processors (M1 / M2 / C), fan modules, crowbar circuits, detection modules, TB contact circuits |
| Installation | Plugs into EPBP backplane in the exciter control cabinet |
| Dimensions | 285 × 205 × 45 mm |
| Weight | 1.1 kg |
FAQ
FAQ
Q1: What is the purpose of the IS200EPSMG1A module?
A1: It provides the regulated control voltages required by the exciter control system and powers both internal and external auxiliary modules.
Q2: What input power does the module use?
A2: It operates from a 125 V DC supply provided through the exciter’s power distribution system.
Q3: What output voltages does it generate?
A3: It supplies +5 V, +15 V, and +24 V DC for control logic, plus additional auxiliary voltages including isolated +70 V DC.
Q4: Where is the module installed?
A4: It is inserted into the EPBP backplane located inside the exciter control cabinet.
Q5: Which components are powered by this module?
A5: It powers the exciter control processors, fan assemblies, protective modules like crowbar circuits, and terminal-board contact circuits.
Q6: How heavy is the IS200EPSMG1A?
A6: The module weighs approximately 1.1 kg.
Q7: Is this module interchangeable with older versions?
A7: Interchangeability is not guaranteed; version compatibility should be checked before replacement.
Q8: What happens if this module fails?
A8: Loss of this module results in loss of control voltages, causing the exciter controller and auxiliary modules to shut down.
