Technical Specifications
| Parameter | Description |
|---|---|

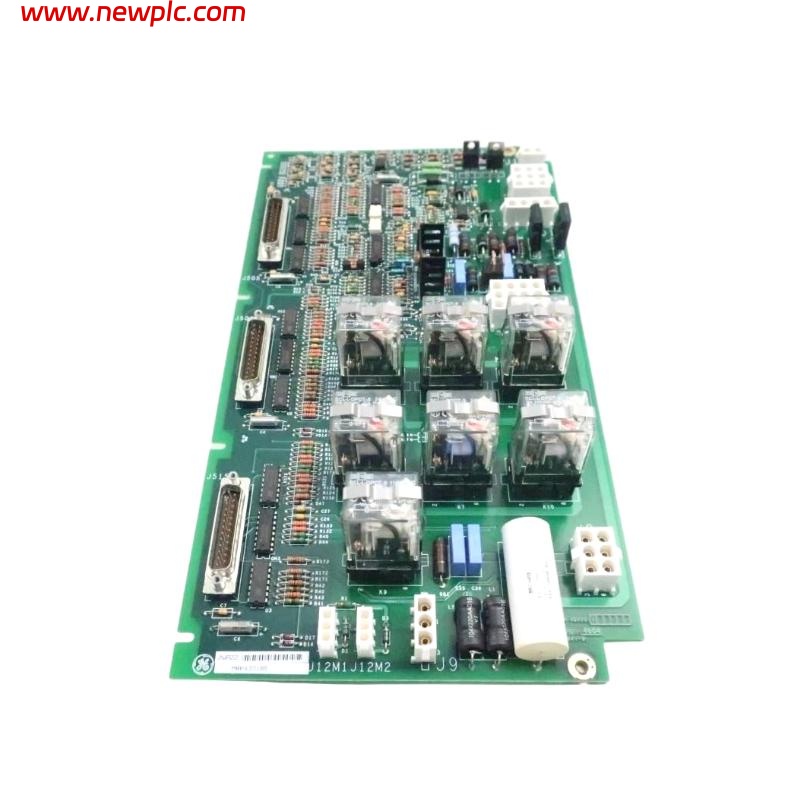

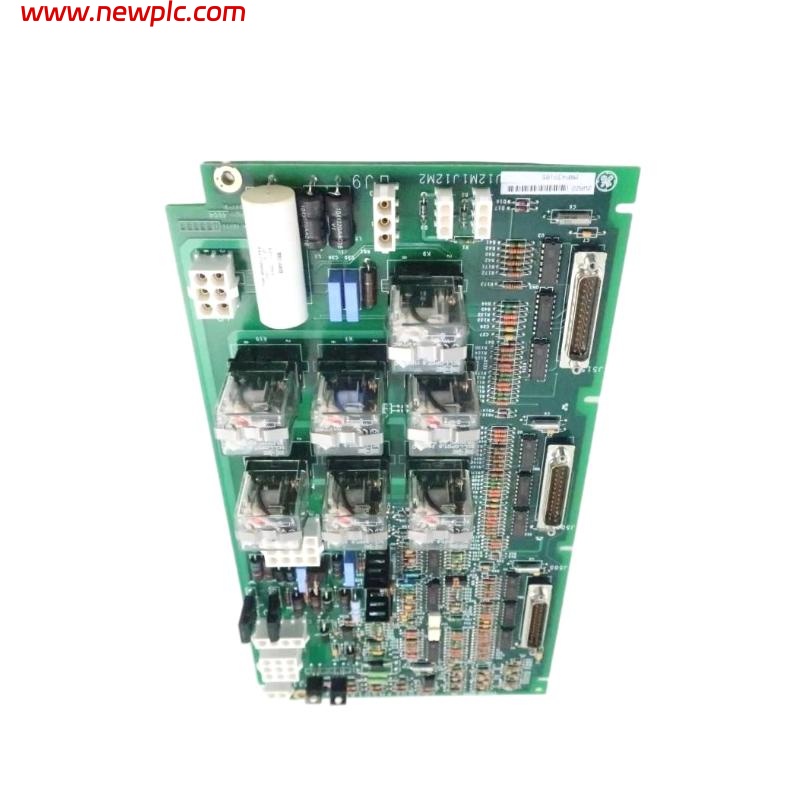

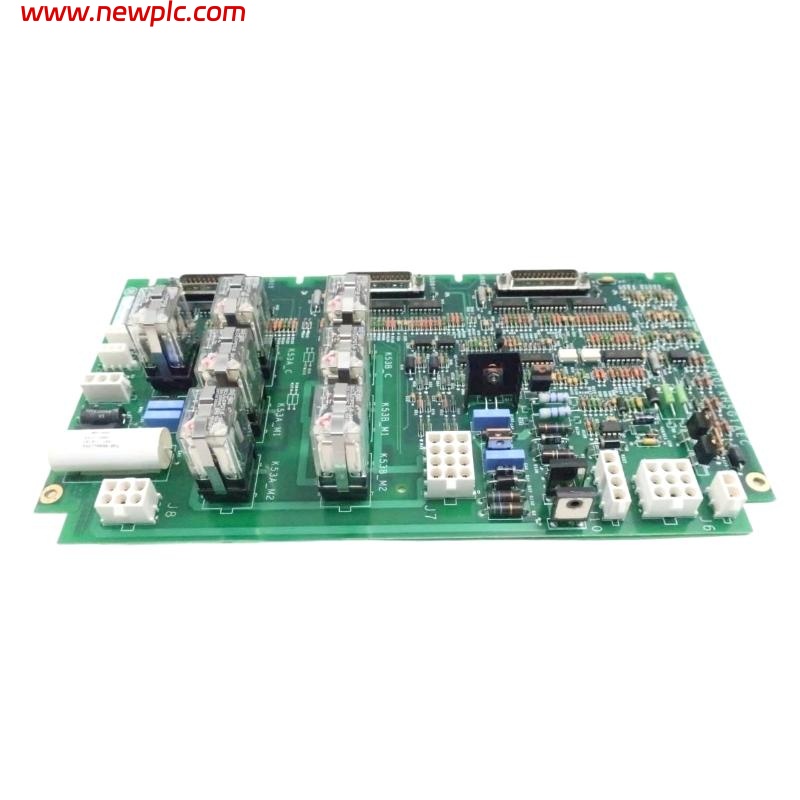

| Model | GE Fanuc IS200EXHSG4A |
| Product Name | Exciter High-speed Relay Driver Board |
| Application | Mark VI / EX2100 excitation control systems |
| Function | Provides high-speed relay driving for protection and control tasks |
| Power Requirement | Powered by the system backplane or controller (typically 24 VDC or internal low-voltage bus) |
| Interfaces | Relay drive outputs, system backplane interface |
| Response Time | Millisecond-level fast switching (system-dependent) |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Mounting | Plug-in card design |
| Dimensions | 230 x 191 x 30 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What is the main function of the IS200EXHSG4A board?
A1: It provides high-speed relay driving to ensure fast execution of protection and control logic in excitation systems.
Q2: Can it replace other versions of the same series?
A2: It can replace boards with the same model and version; different revisions require compatibility verification.
Q3: Does the board need an external power supply?
A3: No, it is normally powered through the system backplane or master controller.
Q4: What are common failure symptoms?
A4: Relay not operating, abnormal LED indicators, alarms in the control system, or slow response.
Q5: Does it require periodic maintenance?
A5: Yes, mainly checking connectors, backplane contacts, and ensuring the board remains clean.
Q6: Can it operate in high-temperature environments?
A6: Yes within the specified industrial temperature range; exceeding limits may cause malfunction.
Q7: What should be considered during installation?
A7: Use ESD protection and ensure backplane connectors are clean and properly aligned.
Q8: Is board replacement required during system upgrades?
A8: Not always; replacement depends on the upgrade scope and system compatibility.
