Technical Specifications
| Item | Specification |
|---|---|

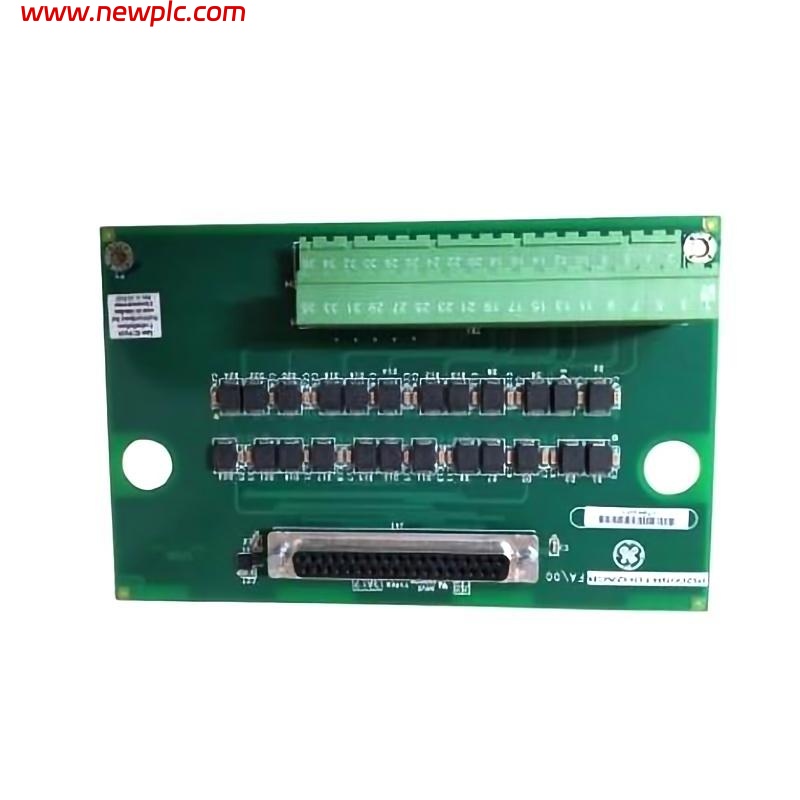

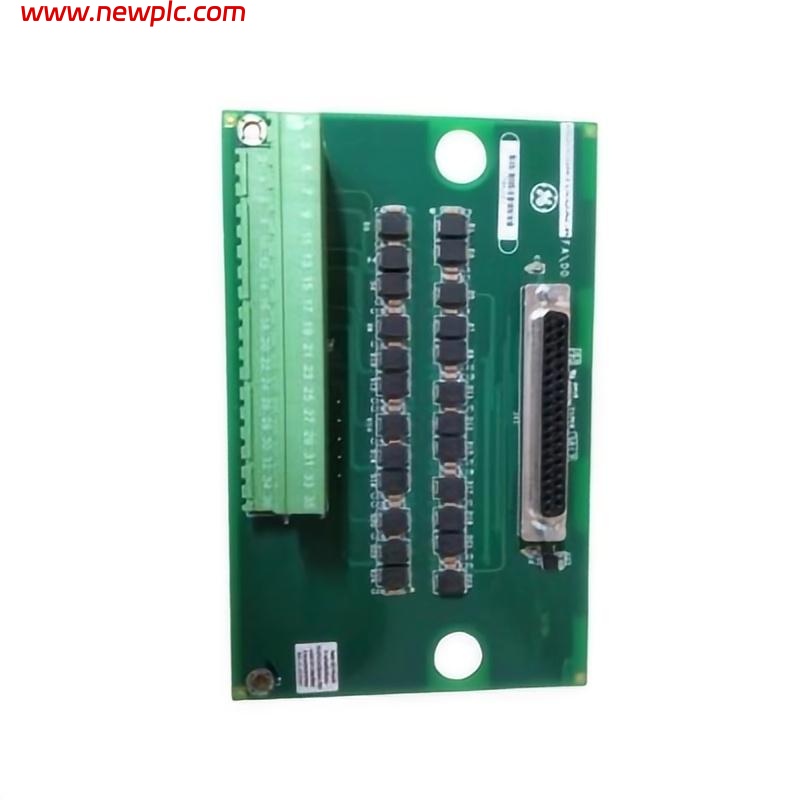

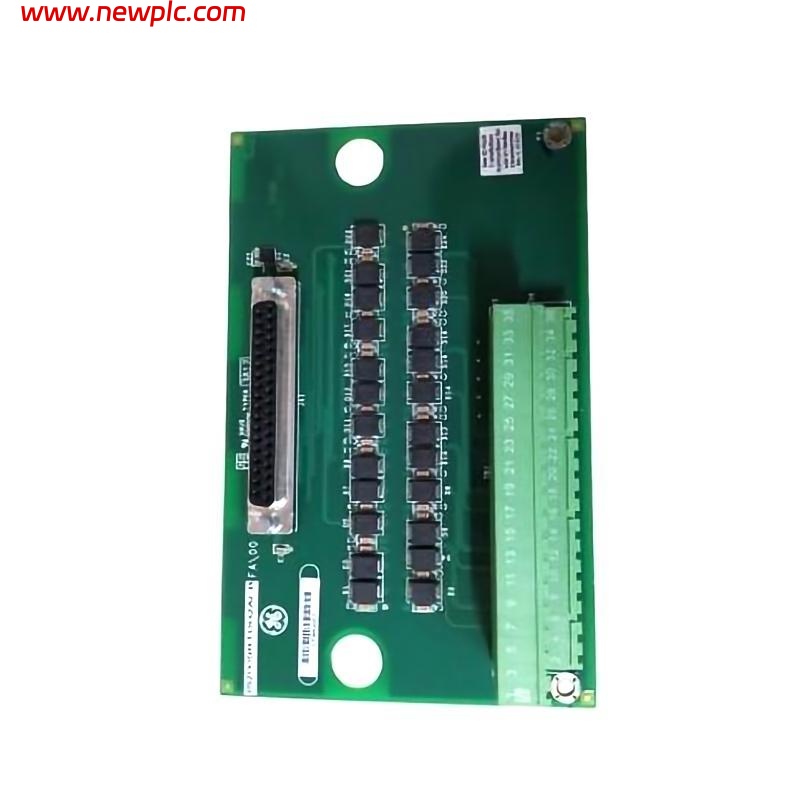

| Product Name | GE Fanuc IS200PRTDH1A RTD Terminal Block |
| Compatible System | Mark VI / Turbine Control series |
| Function | Provides terminal connections for RTD input signals |
| Channels | Multiple RTD connection terminals |
| Wiring Type | Screw terminals, supports shielded cables |
| Mounting Method | Plug-in installation with corresponding I/O board |
| Operating Temperature | 0–60°C |
| Housing Material | Industrial-grade flame-retardant material |
| Dimensions | 260 × 120 × 35 mm |
| Weight | 0.8 kg |
FAQ
FAQ
Q1: What is the main function of the IS200PRTDH1A?
A1: It provides wiring terminals for RTD temperature sensors and interfaces with the main I/O board.
Q2: Which system is it used with?
A2: It is mainly used in GE Mark VI turbine control systems.
Q3: Does it support shielded cables?
A3: Yes, it supports shielded wiring using screw terminals.
Q4: Is it field-replaceable?
A4: Yes, it can be replaced independently without modifying the main board.
Q5: Does the terminal block require calibration?
A5: No, calibration is handled by the associated I/O module.
Q6: What type of sensors does it connect?
A6: It connects RTD temperature sensors such as PT100.
Q7: How is it mounted?
A7: It is plugged onto the corresponding I/O interface board.
Q8: What is its operating temperature range?
A8: Typically 0°C to 60°C.
