Technical Specifications
| Item | Specification |
|---|---|
| Model | G60C00HCHF8AH6LM8AP5EUXXWXX |

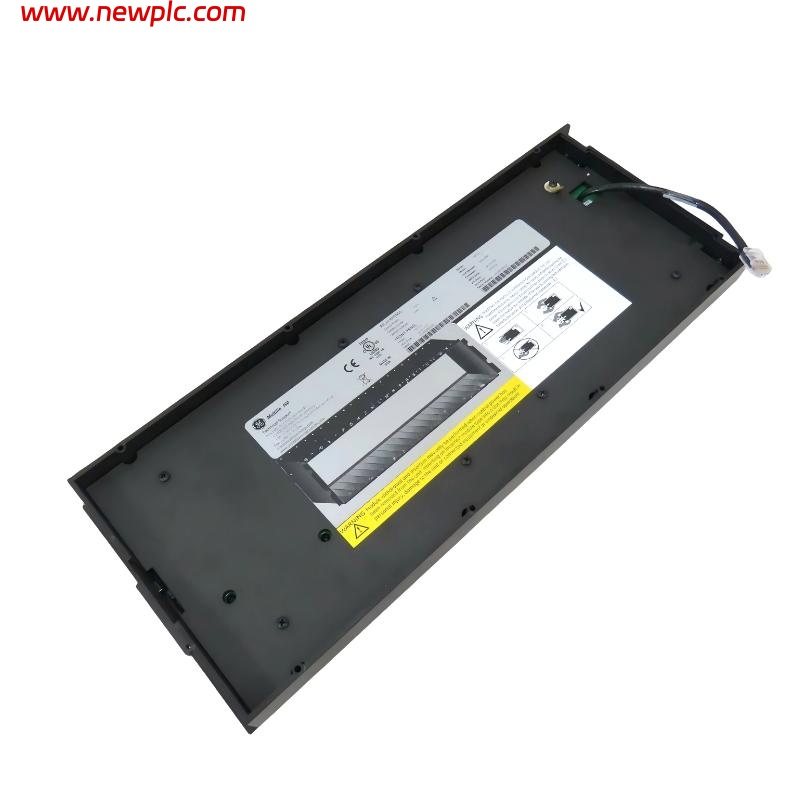

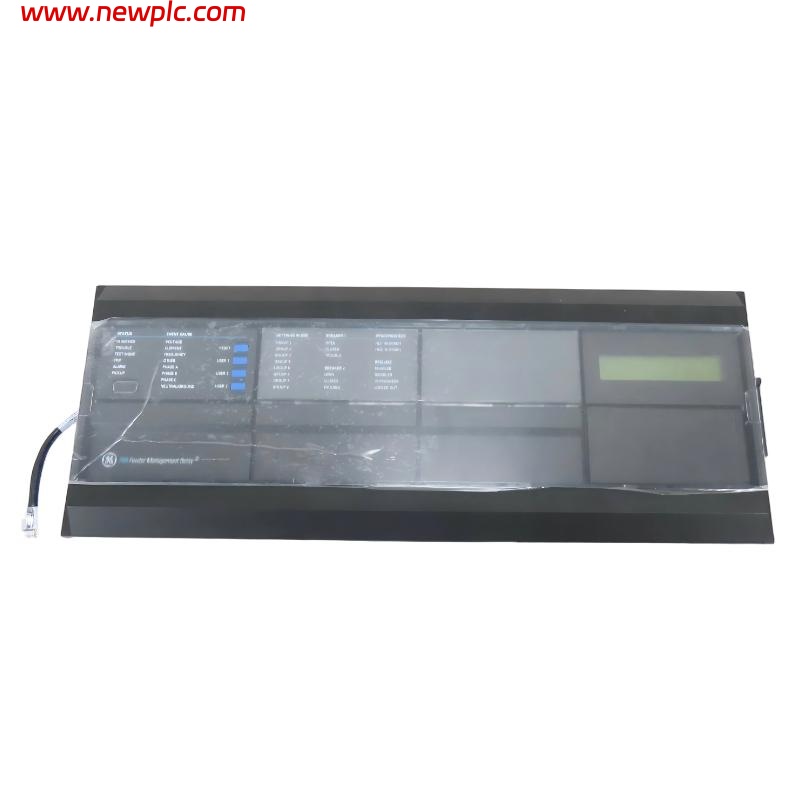

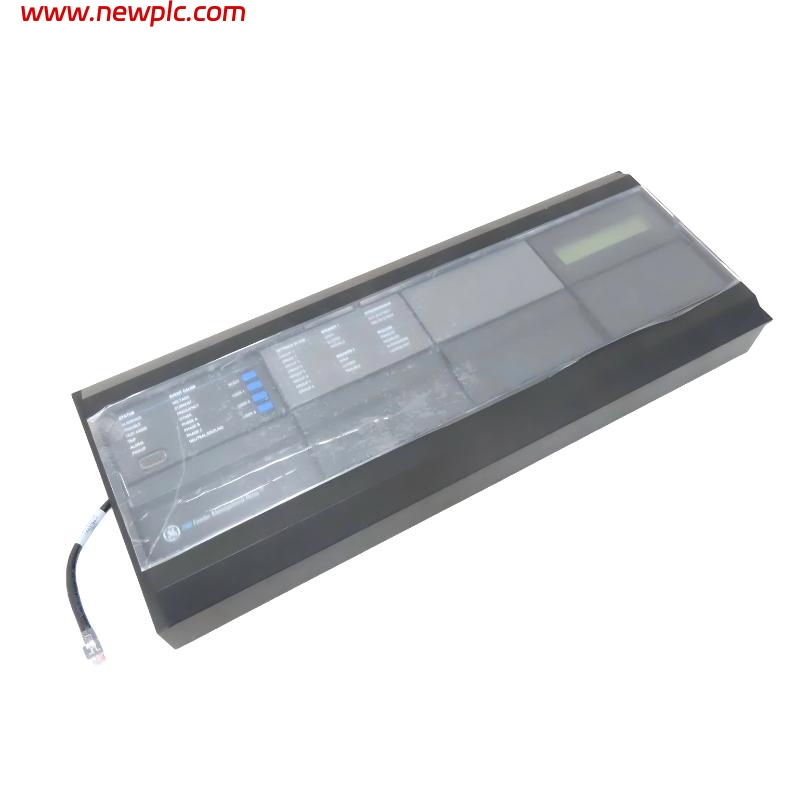

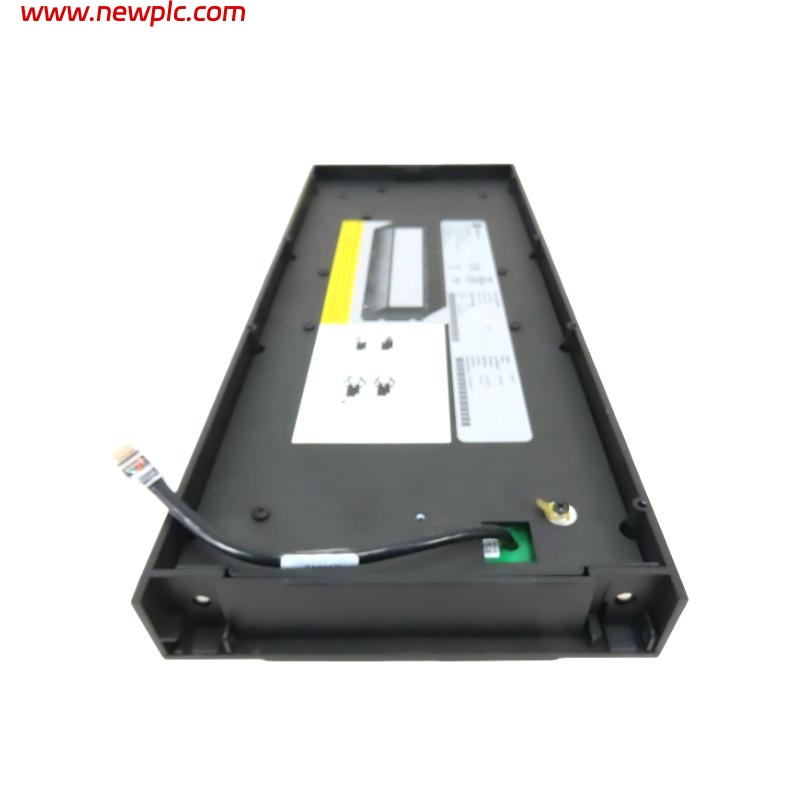

| Product Name | Multilin G60 Generator Management Relay |
| Manufacturer | GE |
| Device Type | Generator protection and management relay |
| Protection Functions | Differential protection, overcurrent, over/under voltage, over/under frequency, loss of excitation, reverse power |
| Control Functions | Generator synchronization, breaker control, load control |
| Measurement Inputs | 3-phase current and voltage inputs |
| Current Input Rating | 1 A / 5 A selectable |
| Voltage Input Rating | Up to 300 V AC (line-to-line) |
| Frequency Range | 45 – 65 Hz |
| Communication Interfaces | Ethernet, RS485, RS232 |
| Supported Protocols | Modbus RTU, Modbus TCP, IEC 61850 |
| Event Recording | SOE and disturbance recording |
| Human Interface | LCD display with keypad |
| Power Supply Options | Wide-range DC / AC auxiliary supply |
| Mounting Type | Panel mounting |
| Environmental Rating | Industrial grade |
| Operating Temperature | –20 °C to +60 °C |
| Dimensions | 348.5 x 177.8 x 181.1 mm |
| Weight | 1.2 kg |
FAQ
FAQ
Q1: What is the main purpose of the Multilin G60 relay?
A1: It provides comprehensive protection, monitoring, and control for medium and large generators.
Q2: Can the relay be integrated into a digital substation system?
A2: Yes, it supports IEC 61850, enabling seamless integration into digital substations.
Q3: Does the relay support generator differential protection?
A3: Yes, it includes stator differential protection as a standard function.
Q4: Can this relay perform generator synchronization?
A4: Yes, it supports automatic and manual synchronization functions.
Q5: How are events and faults recorded?
A5: The relay stores sequence-of-events logs and waveform records for fault analysis.
Q6: Is remote monitoring supported?
A6: Yes, communication ports enable remote configuration and monitoring through a network.
Q7: Does it support multiple communication protocols simultaneously?
A7: Yes, it can operate multiple protocols depending on configuration and firmware support.
Q8: How is firmware updated?
A8: Firmware updates are applied via the communication interface using authorized service tools.
