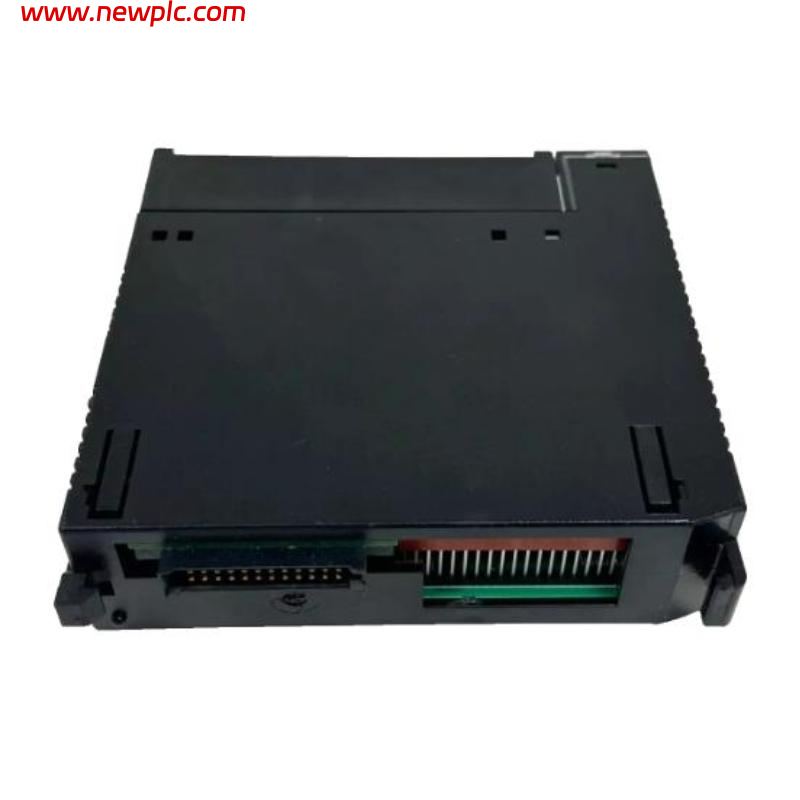

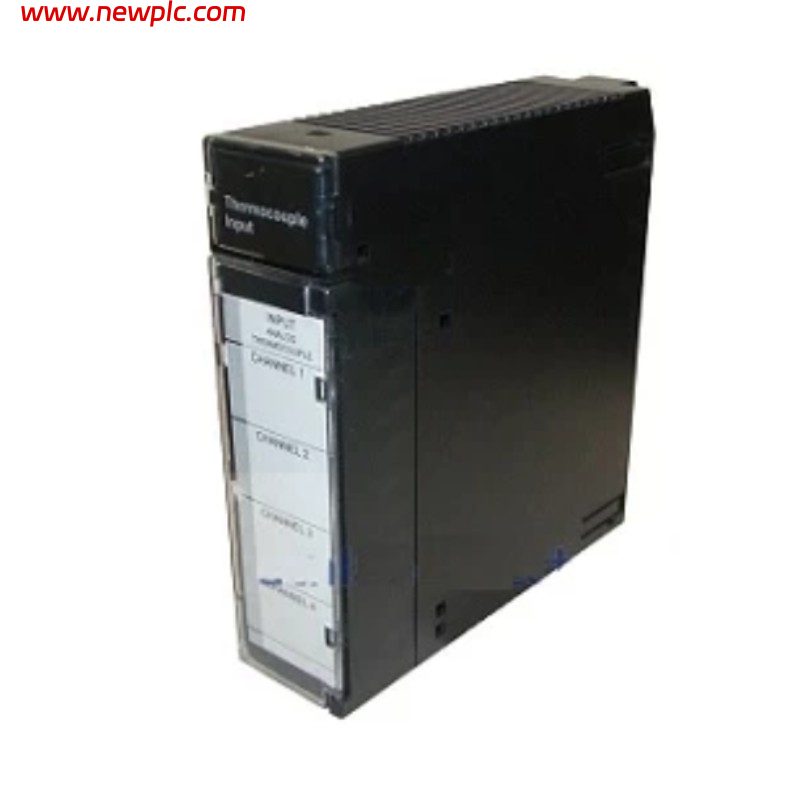

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Horner APG / GE Fanuc compatible |
| Product Model | HE693THM449C |
| Product Type | Thermocouple Temperature Input Module |
| Series Compatibility | GE Fanuc Series 90-30 PLC |
| Function | Provides thermocouple temperature measurement inputs and transfers converted temperature data to the PLC system |
| Input Channels | 4 channels |
| Input Type | Thermocouple Input |
| Supported Thermocouple Types | J, K, T, E, R, S, B thermocouples |
| Temperature Measurement Range | Depends on selected thermocouple type |
| Temperature Units | Celsius (°C) / Fahrenheit (°F) selectable |
| Resolution | 0.1°C to 0.5°C (depending on configuration) |
| Conversion Method | Analog-to-digital conversion |
| Cold Junction Compensation | Built-in automatic compensation |
| Sensor Fault Detection | Thermocouple open circuit detection |
| Input Filtering | Digital filtering supported |
| Accuracy | Approximately ±0.5°C (typical, depending on sensor type and range) |
| Number of Input Groups | 4 independent thermocouple inputs |
| Isolation | Thermocouple inputs isolated from PLC backplane |
| PLC Interface | Series 90-30 backplane communication |
| Compatible PLC Systems | GE Fanuc Series 90-30 PLC |
| Installation Position | Any available Series 90-30 I/O slot |
| Power Supply | Supplied through PLC backplane |
| Backplane Voltage | 5 VDC |
| Power Consumption | Approx. 250 mA @ 5 VDC |
| Status Indicators | Module status LED and diagnostic indication |
| Terminal Connection | Removable terminal block |
| Mounting Method | Rack-mounted module |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 130 × 35 × 127 mm (5.12 × 1.38 × 5.00 in.) |
| Weight | Approx. 0.30 kg (0.66 lb) |
| Hardware Revision | C |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the HE693THM449C used for?
The HE693THM449C is used to measure temperature signals from thermocouple sensors and provide digital temperature data to a GE Fanuc Series 90-30 PLC for monitoring and control applications.
Q2: How many thermocouple channels does the HE693THM449C provide?
The module provides 4 independent thermocouple input channels, allowing multiple temperature points to be monitored within one PLC system.
Q3: Which thermocouple types are supported by the HE693THM449C?
The module supports common industrial thermocouple types, including J, K, T, E, R, S, and B types, depending on configuration.
Q4: Does the HE693THM449C provide cold junction compensation?
Yes. The module includes built-in cold junction compensation to improve temperature measurement accuracy when using thermocouple sensors.
Q5: Is the HE693THM449C compatible with GE Fanuc Series 90-30 PLCs?
Yes. The HE693THM449C is designed as a Series 90-30 compatible thermocouple input module and installs directly into compatible PLC racks.
Q6: Does the HE693THM449C require an external power supply?
No. The module receives operating power from the PLC backplane and does not require a separate external power source.
Q7: What applications commonly use the HE693THM449C?
The module is commonly used in industrial applications such as ovens, furnaces, heating systems, process equipment, and temperature-controlled manufacturing systems.
Q8: What should be checked before replacing an HE693THM449C module?
Before replacement, verify PLC rack compatibility, thermocouple type settings, sensor wiring, terminal connections, PLC configuration, and temperature scaling parameters to ensure proper operation.
