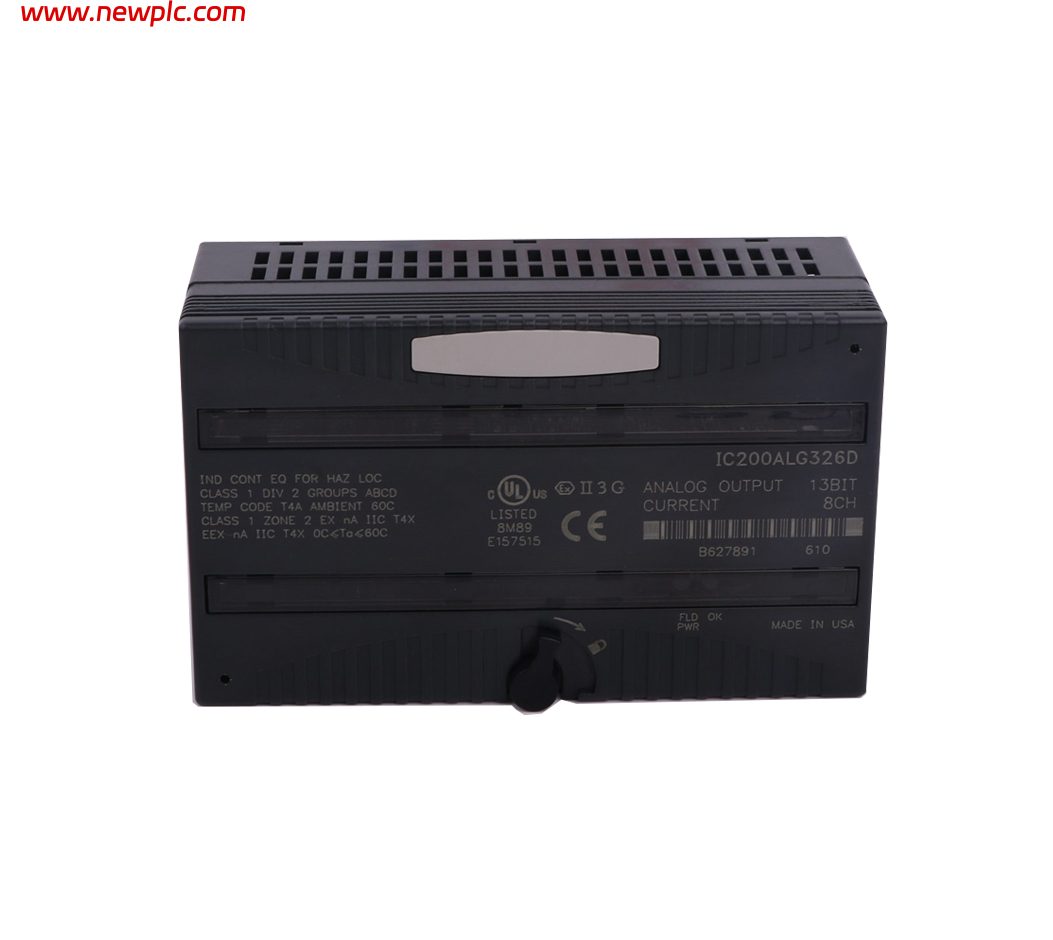

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC200ALG326F |
| Product Type | Analog Output Module |
| Series | VersaMax I/O |
| Function | Converts digital PLC data into analog current signals for controlling field devices |
| Output Type | Analog Current Sourcing Output |
| Number of Output Channels | 8 channels |
| Output Configuration | 8 single-ended outputs, 1 group |
| Output Range | 4–20 mA (default) / 0–20 mA (configured by jumper) |
| Resolution | 13-bit |
| Resolution (4–20 mA) | 5 counts = 2.5 µA (~12.7 bits) |
| Resolution (0–20 mA) | 4 counts = 2.5 µA (13 bits) |
| Output Load Resistance | 0–800 Ω maximum (resistive load) |
| Capacitive Load | 0.1 µF maximum |
| Inductive Load | 0.5 H maximum |
| Output Accuracy @ 25°C | ±0.3% typical, ±0.5% maximum of full scale |
| Output Accuracy (0–60°C) | ±1% maximum of full scale |
| Update Rate | 15 ms maximum per module |
| Channel-to-Channel Crosstalk Rejection | 70 dB minimum |
| External Power Supply | 18–30 VDC (including ripple) |
| External Current Consumption | 100 mA maximum (no load) / 185 mA maximum (all outputs full scale) |
| Inrush Current | 2 A maximum |
| Backplane Current Consumption | 50 mA maximum @ 5 VDC |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute (field side to logic and frame ground) |
| Channel Isolation | No channel-to-channel isolation |
| Diagnostic Functions | Loss of user-side field power detection |
| Output Default Setting | Hold last state or configurable default value |
| LED Indicators | FLD PWR LED (field power), OK LED (backplane power) |
| Module ID | FFFF9480 |
| Carrier Requirement | Requires VersaMax IC200CHSxxx series carrier |
| Mounting Method | DIN rail mounting |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC and VersaMax Distributed I/O |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (W × H × D) | Approx. 66.8 × 110 × 50 mm (2.63 × 4.33 × 1.97 in.) |
| Weight | Approx. 0.16 kg (0.35 lb) |
| Hardware Revision | F |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200ALG326F used for?
The IC200ALG326F is used in VersaMax PLC systems to generate analog current signals for field devices such as control valves, variable speed drives, actuators, and process control equipment.
Q2: How many analog output channels does the IC200ALG326F provide?
The module provides 8 single-ended analog current output channels arranged in one output group.
Q3: What current output ranges are supported by the IC200ALG326F?
The module supports 4–20 mA output as the default range and can be configured for 0–20 mA output using a jumper setting.
Q4: What is the resolution of the IC200ALG326F?
The module provides 13-bit analog output resolution. For 4–20 mA operation, the resolution is approximately 2.5 µA per count, while 0–20 mA operation provides full 13-bit resolution.
Q5: Does the IC200ALG326F require an external power supply?
Yes. The output circuitry requires an external 18–30 VDC field power supply. The module also receives logic power from the VersaMax backplane.
Q6: What type of loads can be connected to the IC200ALG326F outputs?
The module can drive current-loop devices with resistive loads up to 800 Ω, including proportional valves, signal converters, controllers, and industrial actuators.
Q7: What diagnostic features are available on the IC200ALG326F?
The module provides field power monitoring through the FLD PWR LED and module power status through the OK LED. It also supports detection of loss of user-side field power.
Q8: What should be checked before replacing an IC200ALG326F module?
Before replacement, verify the VersaMax carrier compatibility, external 24 VDC field power supply, output current range configuration, jumper settings, field wiring, load resistance, and PLC hardware configuration to ensure correct operation.
