Technical Specifications
| Parameter | Description |
|---|---|

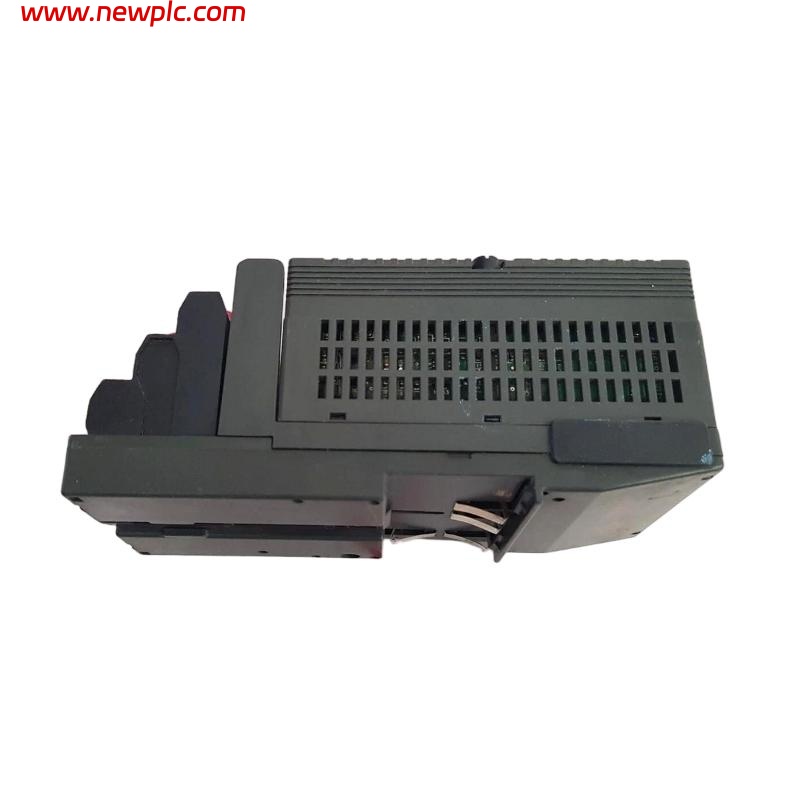

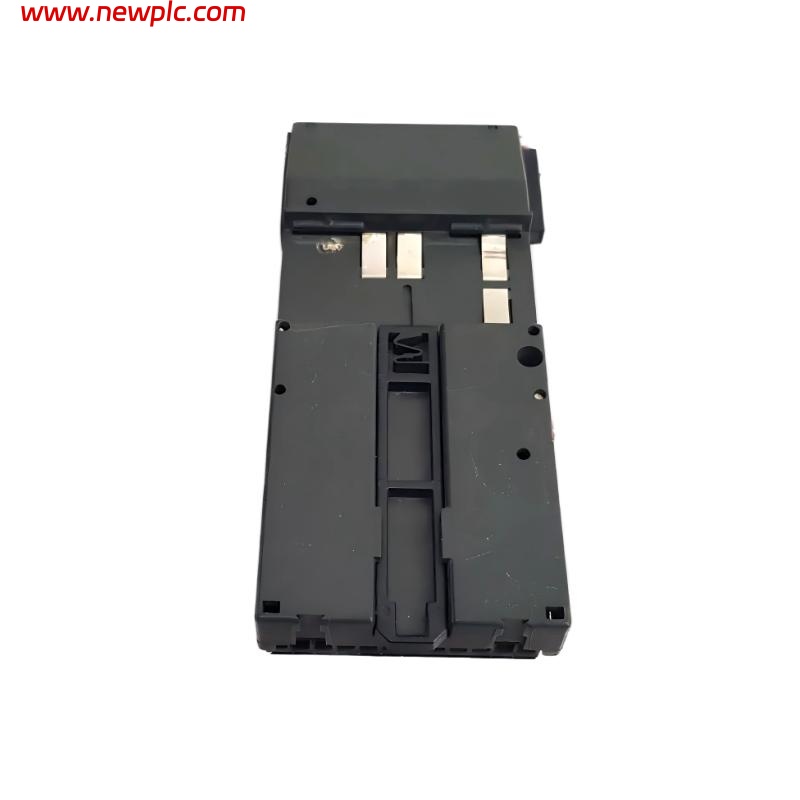

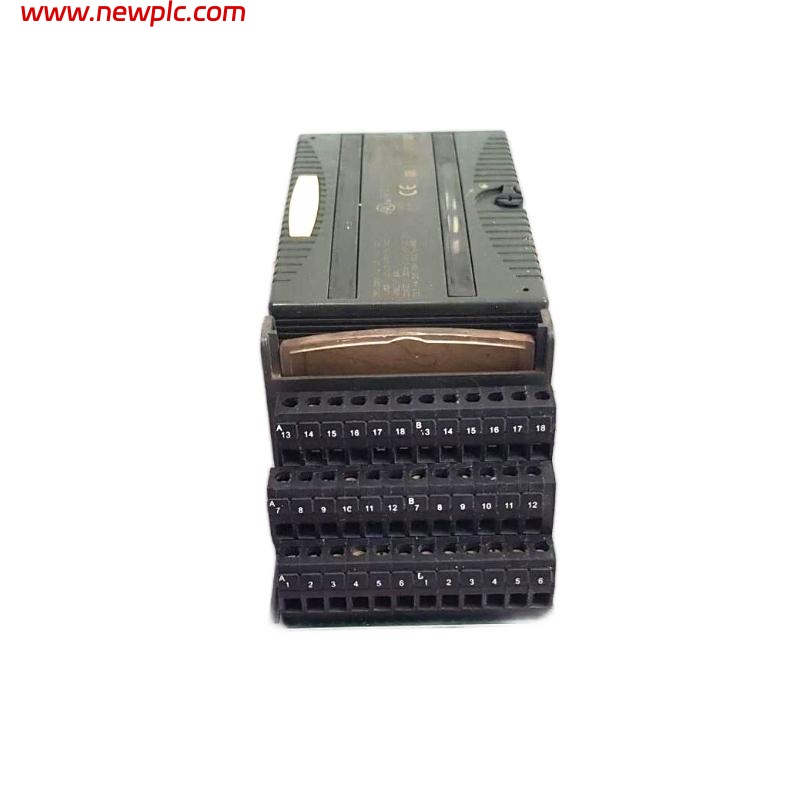

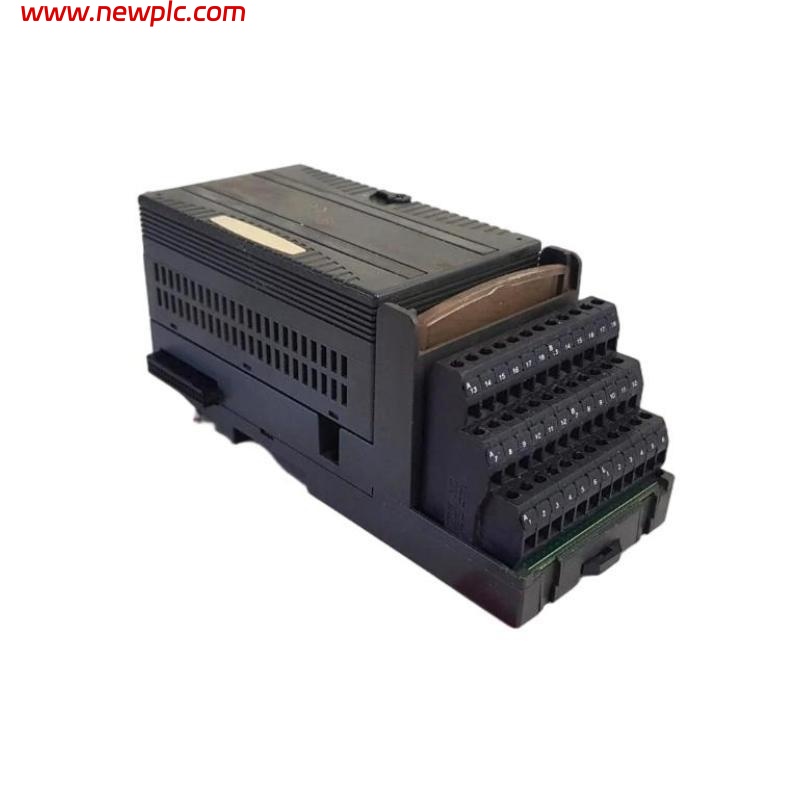

| Product Name | GE IC200ALG431 Analog Hybrid Module |
| Type | Analog Hybrid Module |
| Dimensions | 110 x 66.8 x 50 mm |
| Weight | 0.33 kg |
| Number of Input Channels | 4 Input Channels |
| Number of Output Channels | 4 Output Channels |
| Input Type | Current or Voltage Input |
| Output Type | Current or Voltage Output |
| Current Input Range | 0-20 mA, 4-20 mA |
| Voltage Input Range | 0-10 V, 2-10 V |
| Current Output Range | 0-20 mA, 4-20 mA |
| Voltage Output Range | 0-10 V, 2-10 V |
| Isolation Level | 2500 V DC |
| Operating Temperature Range | -20°C to +60°C |
| Module Type | Analog Hybrid Module, capable of handling both current and voltage signals simultaneously |
FAQ
FAQ
Q1: What types of input and output signals does the GE IC200ALG431 Analog Hybrid Module support?
A1: The module supports current (0-20 mA, 4-20 mA) and voltage (0-10 V, 2-10 V) input and output signals.
Q2: What is the input and output accuracy of the module?
A2: The input and output signal accuracy meets industrial standards, ensuring stability and precision.
Q3: What is the operating temperature range of the GE IC200ALG431 Analog Hybrid Module?
A3: The operating temperature range is from -20°C to +60°C, suitable for most industrial environments.
Q4: How many input and output channels does the module have?
A4: The GE IC200ALG431 module provides 4 input channels and 4 output channels.
Q5: Does the module provide electrical isolation?
A5: Yes, the GE IC200ALG431 module offers 2500 V DC electrical isolation for enhanced system safety.
Q6: What is the power supply requirement for the module?
A6: The module requires a 24 V DC power supply.
Q7: How does the GE IC200ALG431 module handle both current and voltage signals?
A7: The module can simultaneously process both current and voltage signals and supports configuring different input and output ranges.
Q8: How is the GE IC200ALG431 module installed?
A8: The module can be installed using standard DIN rail mounting and integrated with controllers via communication links.
