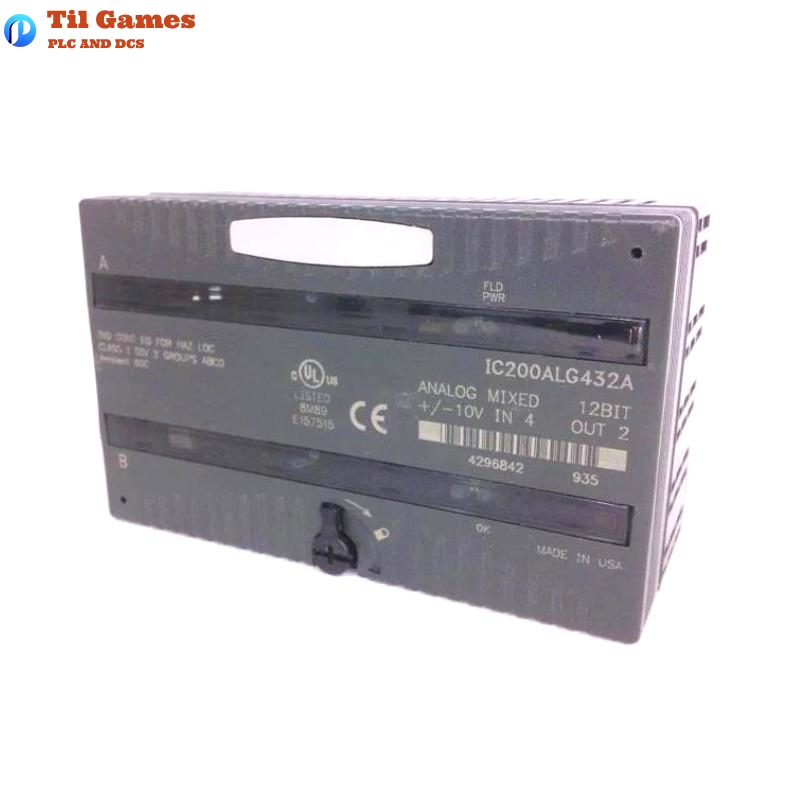

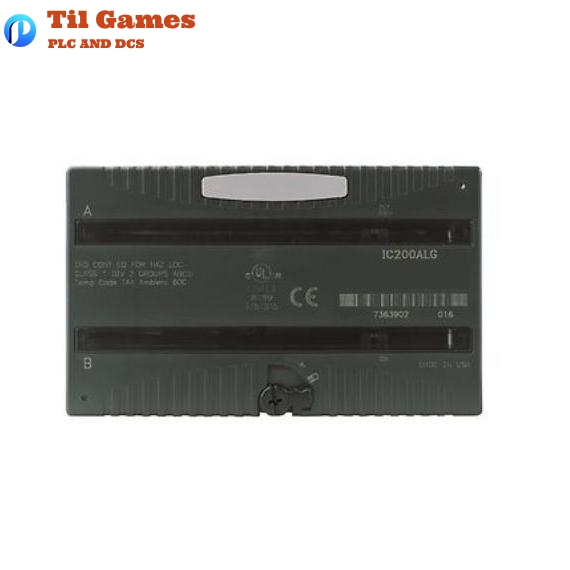

GE IC200ALG432B VersaMax Analog Mixed Module

Frequently Asked Questions (FAQ)

Q1: What is the input voltage range supported by the IC200ALG432B?
A1: The module supports analog input voltage in the range of -10V to +10V DC.

Q2: What is the resolution of the analog signals?
A2: The module provides a resolution of 12 bits, with a voltage resolution of 2.5 mV = 8 counts for inputs and 5 mV = 16 counts for outputs.

Q3: How many channels does the module provide?
A3: It has 4 differential analog input channels and 2 single-ended analog output channels.

Q4: What is the required power supply for the outputs?
A4: An external power supply of +18 to +30 VDC is required to power the output channels.

Q5: Can the outputs be configured to hold the last value if communication is lost?
A5: Yes, the output behavior is configurable via a jumper. It can either hold the last value or default to 0V.

Q6: What isolation is provided between user input and logic circuitry?
A6: The isolation rating is 250 VAC continuous, and 1500 VAC for 1 minute between user input and logic/frame ground.

Q7: How is the field power status indicated?
A7: A green LED labeled “FLD PWR” indicates the presence of field-side power.

Q8: What are the dimensions and weight of the IC200ALG432B module?
A8: The module dimensions are 110 mm x 66.8 mm x 50 mm, and it weighs 0.159 kg.
