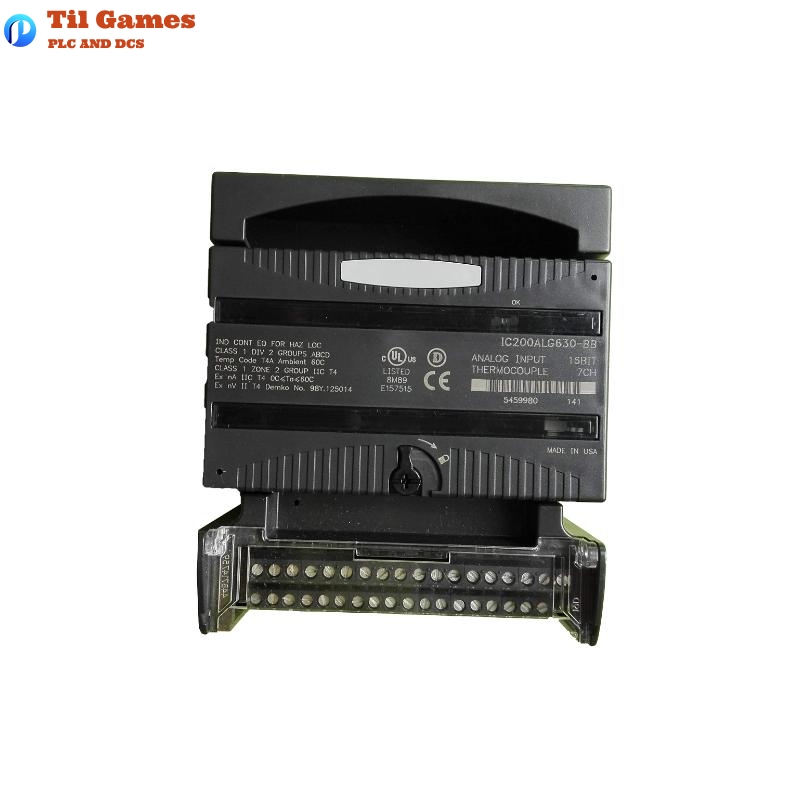

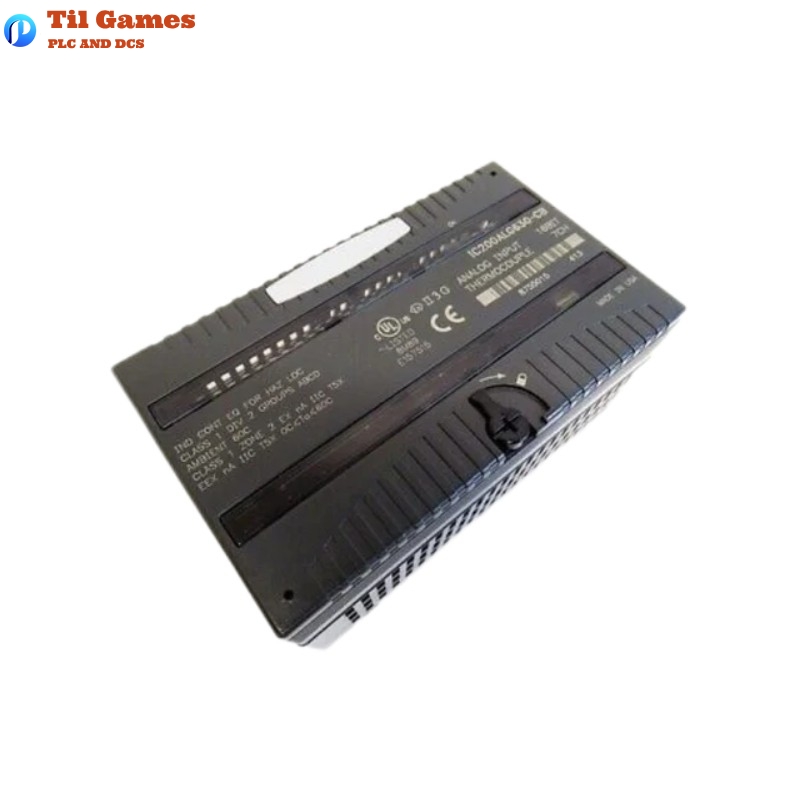

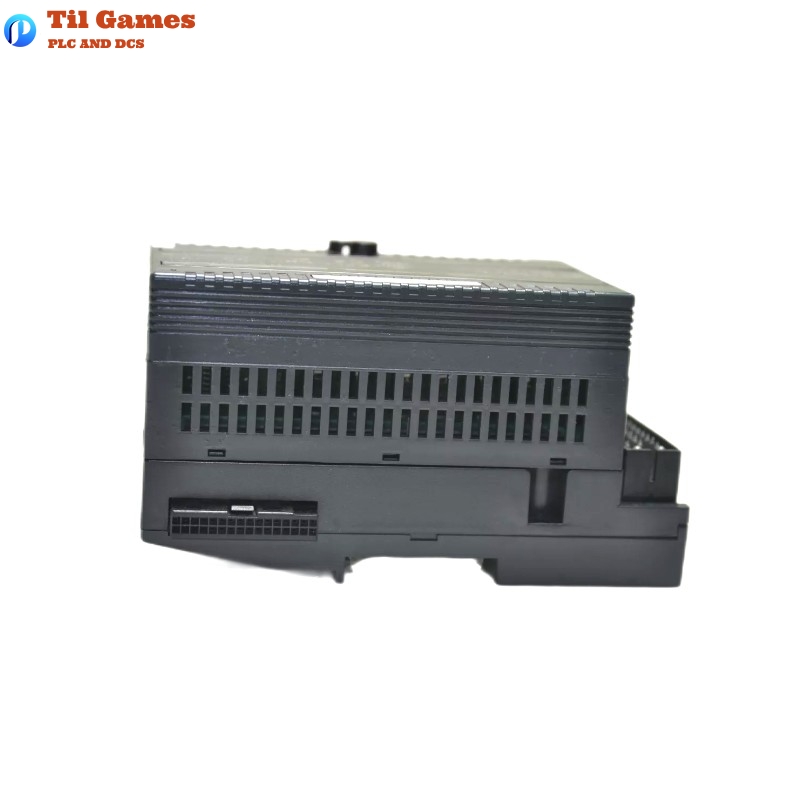

GE IC200ALG630-BB VersaMax Analog Input Module

FAQ

Q1: What is the main application of the IC200ALG630-BB module?
A1: The IC200ALG630-BB is used for reading signals from thermocouples, making it ideal for industrial applications where temperature monitoring is necessary.

Q2: How many channels does this module support?
A2: This module supports 7 channels for analog input.

Q3: What types of thermocouples are supported by this module?
A3: The module supports J, K, T, S, R thermocouples, and also mV inputs.

Q4: What is the update rate of the IC200ALG630-BB module?
A4: The update rate is approximately 230 milliseconds per channel at 50 Hz.

Q5: What is the accuracy of the module?
A5: The accuracy is ±0.2% for voltage measurements and ±0.15% for temperature measurements at 25°C.

Q6: What is the power consumption of the IC200ALG630-BB module?
A6: The module consumes 125 mA maximum from the 5V backplane and 125 mA from the 3.3V backplane.

Q7: What are the physical dimensions of the module?
A7: The module measures 110 mm (width) x 66.8 mm (height) x 50 mm (depth), excluding the carrier height and mating connectors.

Q8: How does the LED indicator system work?
A8: The OK LED shows green when backplane power is present and amber when there is a module fault. The FLD PWR LED indicates whether the field power is present.

Analog Input Module GE IC200ALG630-BB VersaMax
