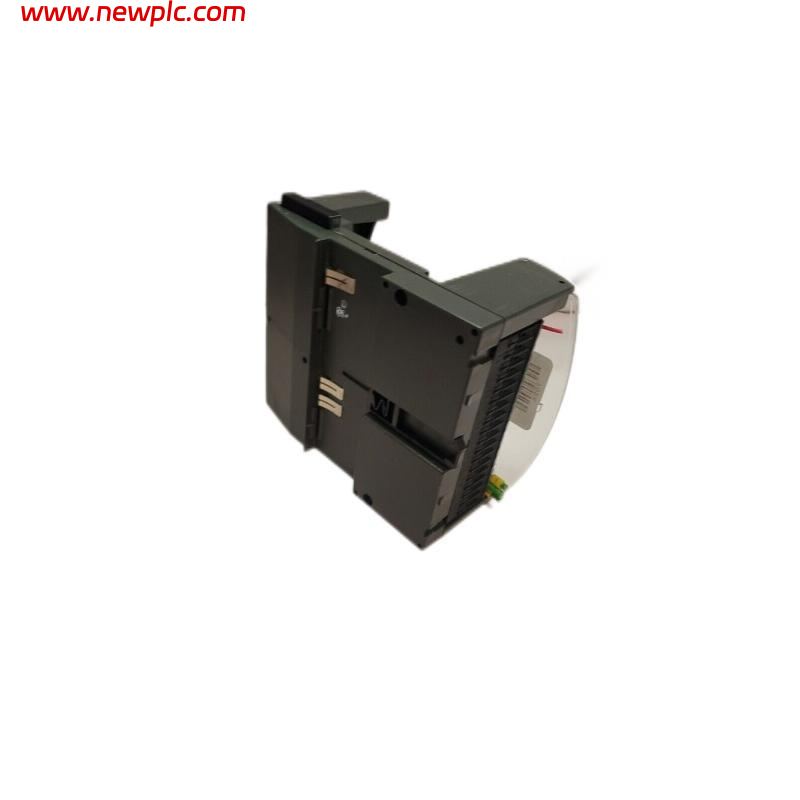

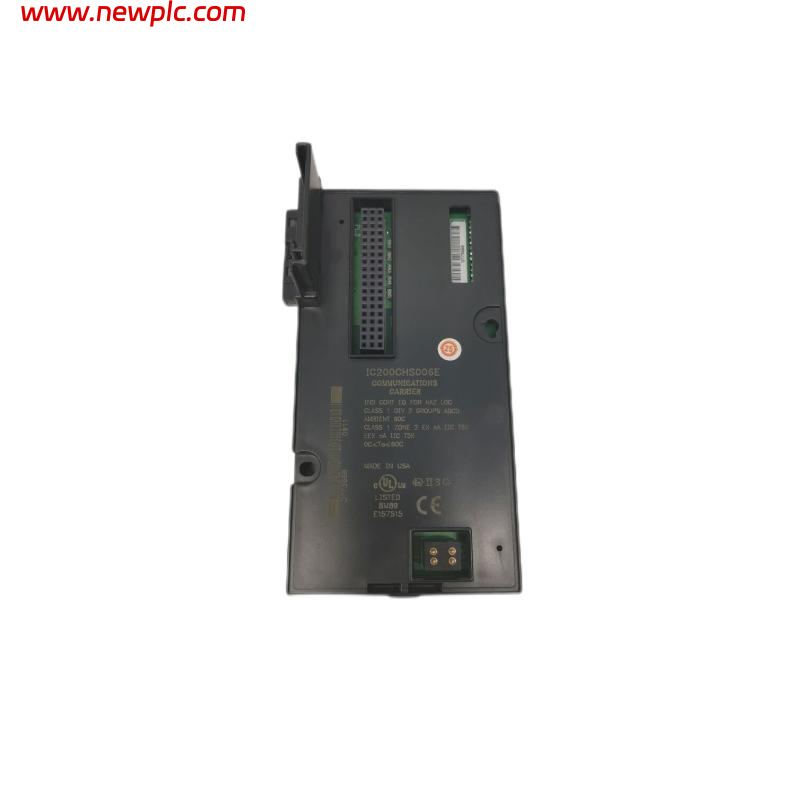

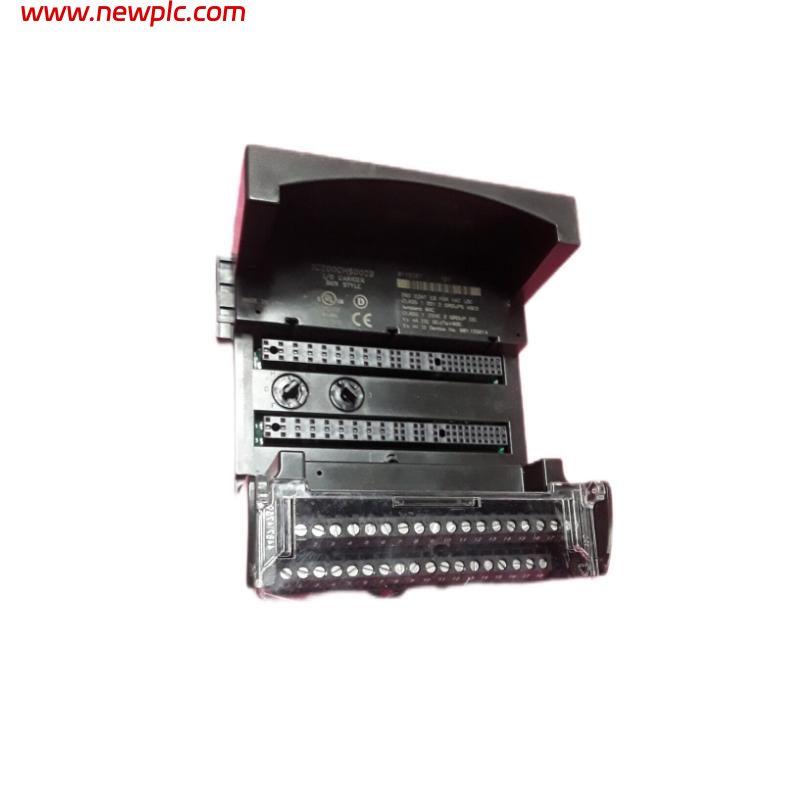

GE IC200CHS003C Connector-Style I/O Carrier

FAQ

Q1: What is the GE Fanuc IC200CHS003C used for?
The IC200CHS003C serves as the mounting base for a single VersaMax I/O module. It provides the mechanical support, backplane communication, and field wiring interface required for normal module operation.

Q2: Does the IC200CHS003C contain any I/O electronics?
No. The IC200CHS003C is a passive carrier and contains no processing or I/O electronics. The installed VersaMax I/O module performs all signal processing.

Q3: How many I/O points does the carrier support?
The carrier accommodates one VersaMax I/O module and provides connections for 32 I/O points plus four common power terminals through its integrated 36-pin connector.

Q4: Which VersaMax modules are compatible with the IC200CHS003C?
The carrier is compatible with most VersaMax I/O modules. However, certain 240 VAC high-isolation input and mixed I/O modules require different carrier types due to their isolation requirements.

Q5: How is the IC200CHS003C installed?
The carrier snaps onto a 35 mm DIN rail or can be panel-mounted for applications requiring greater resistance to vibration and mechanical shock. A properly grounded DIN rail is recommended for EMC protection.

Q6: What cable is used with the IC200CHS003C?
The carrier is designed for use with IC200CBL1xxx Series I/O cables, which connect the 36-pin field connector to external wiring or terminal assemblies.

Q7: What does the “C” revision indicate?
The “C” suffix identifies the hardware revision of the IC200CHS003 carrier. Revision updates generally reflect manufacturing improvements while maintaining compatibility with VersaMax I/O modules.

Q8: What should be checked before replacing an IC200CHS003C carrier?
Before replacement, verify the installed I/O module compatibility, field wiring connector condition, DIN rail grounding, mechanical keying settings, connector alignment, and cable integrity to ensure reliable operation after installation.
