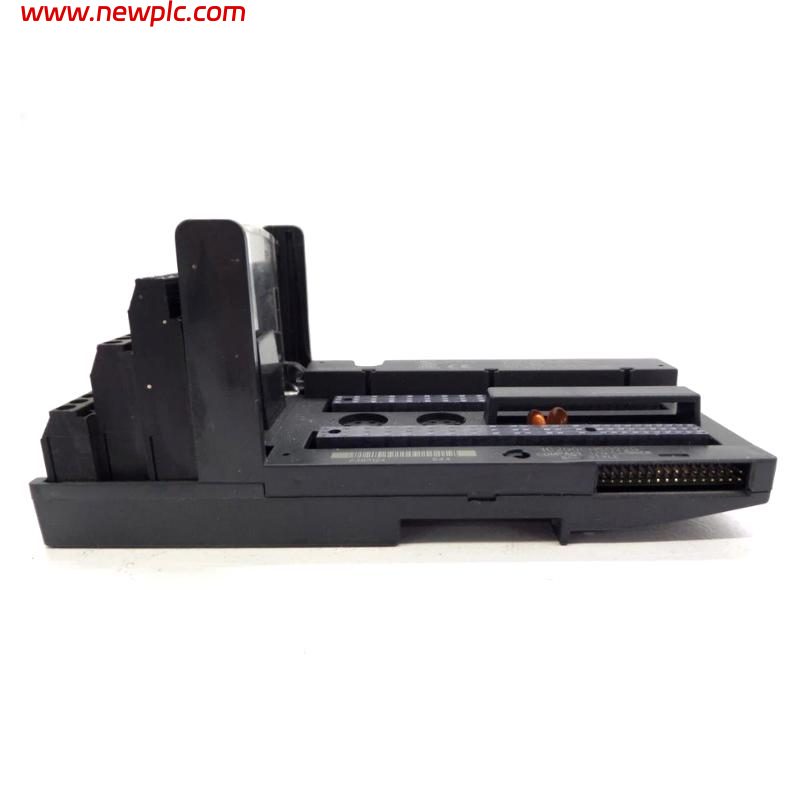

Technical Specifications

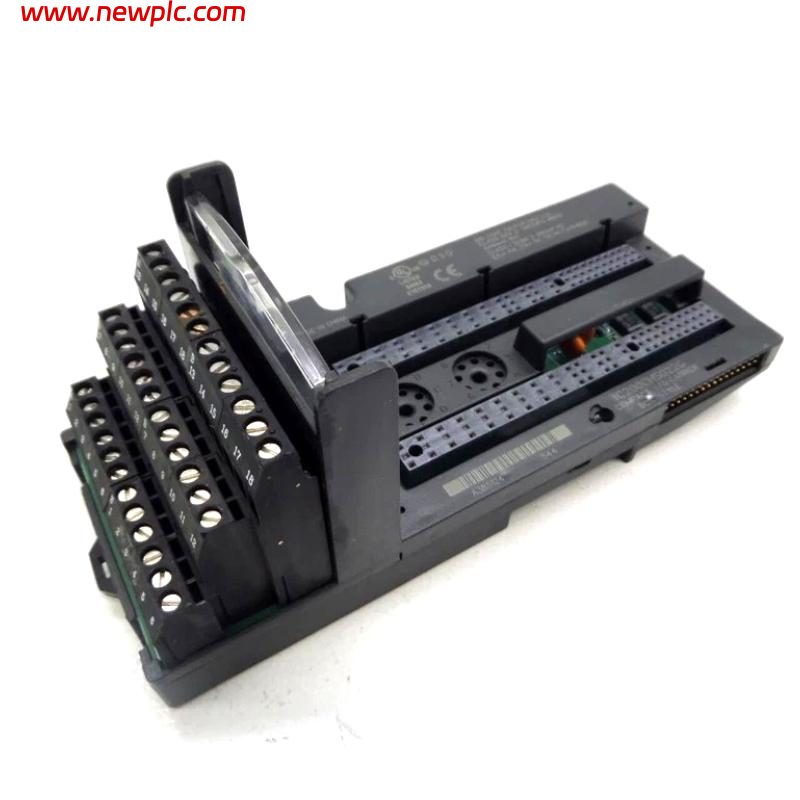

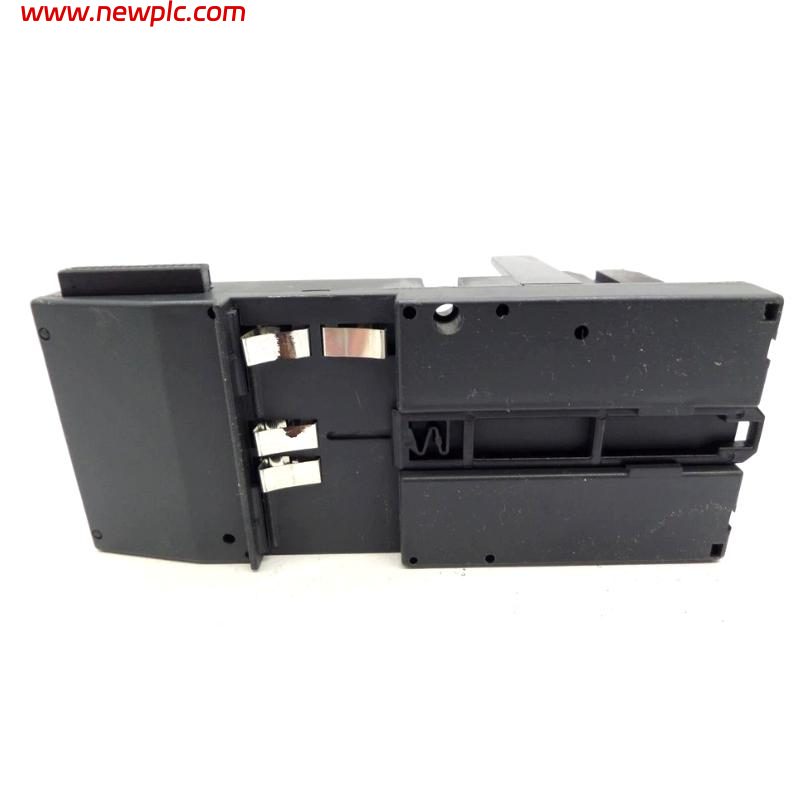

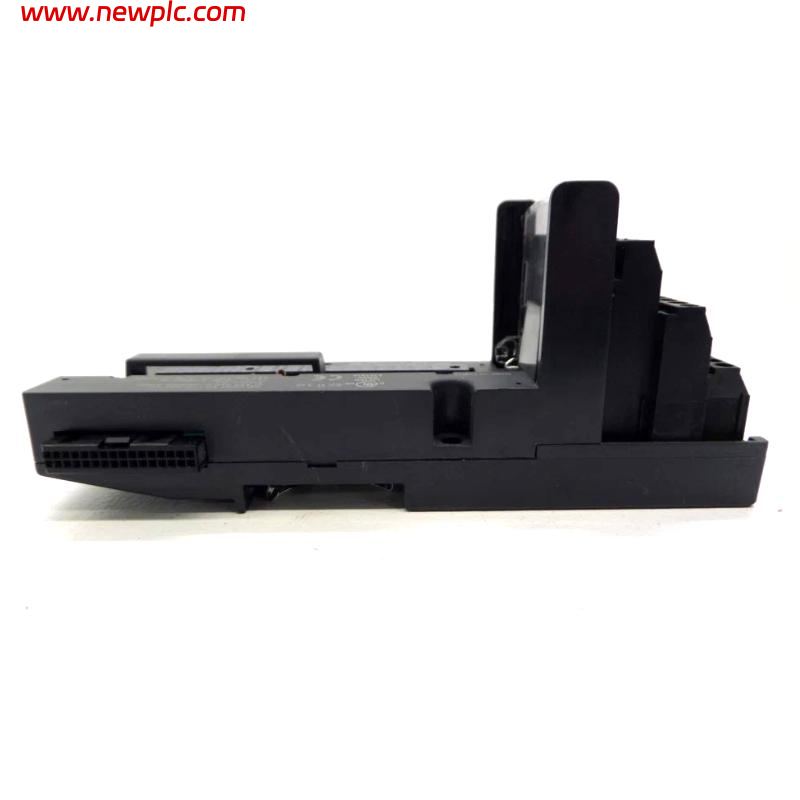

| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC200CHS022J |
| Product Type | Compact Box-Style I/O Carrier |
| Series | VersaMax I/O |
| Function | Provides mechanical mounting, backplane communication, and field wiring for one VersaMax I/O module |
| Carrier Type | Compact Integrated Box-Style Carrier |
| Module Capacity | 1 VersaMax I/O module |
| Supported I/O Points | Up to 32 I/O points plus 4 common connections |
| Terminal Type | 36 IEC box-style screw terminals (A1–A18, B1–B18) |
| Number of Terminal Blocks | 3 |
| Mounting Method | 35 mm DIN rail or panel mounting |
| Orientation | Vertical |
| Backplane Communication | Integrated VersaMax backplane connector |
| Carrier-to-Carrier Connection | Integrated side connectors (no additional cables required) |
| Voltage Rating | 0–264 VAC |
| Current Rating per I/O Point | 2 A |
| Current Rating per Power/Ground Terminal | 8 A |
| Single-Wire Size | 0.36–2.1 mm² (AWG 22–14) |
| Two-Wire Size | Up to 0.86 mm² (AWG 18) |
| Compatible Modules | GE Fanuc / Emerson VersaMax Digital, Analog, Communication, and Specialty I/O Modules |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (Non-condensing) |
| Dimensions (H × W × D) | Approx. 168 × 67 × 72 mm (6.61 × 2.63 × 2.83 in.) |
| Weight | Approx. 0.20 kg (0.44 lb) |
| Hardware Revision | J |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200CHS022J used for?
The IC200CHS022J is a compact box-style I/O carrier used in the VersaMax I/O system. It provides the mechanical support, backplane communication, and field wiring interface required to install a single VersaMax I/O module.
Q2: How many I/O modules can the IC200CHS022J accommodate?
The carrier is designed to hold one VersaMax I/O module and supports field wiring for up to 32 I/O points plus four common connections, making it suitable for compact distributed I/O installations.
Q3: What type of terminals does the IC200CHS022J provide?
The carrier features 36 IEC box-style screw terminals, identified as A1–A18 and B1–B18, providing secure wiring connections for industrial control applications.
Q4: How is the IC200CHS022J installed?
The carrier can be mounted directly on a 35 mm DIN rail. For applications subject to high vibration or shock, panel mounting is also recommended to improve mechanical stability.
Q5: Which modules are compatible with the IC200CHS022J?
The IC200CHS022J is compatible with most VersaMax digital I/O, analog I/O, communication, and specialty modules, making it a versatile carrier for distributed automation systems.
Q6: What are the electrical ratings of the carrier?
The carrier is rated for 0–264 VAC, supports 2 A per I/O point, and allows 8 A per power or ground terminal, meeting the requirements of most VersaMax field wiring applications.
Q7: What does the “J” revision indicate?
The “J” suffix identifies a specific hardware revision of the IC200CHS022 carrier. Revision J maintains compatibility with VersaMax systems while incorporating manufacturing and reliability improvements introduced during the product lifecycle.
Q8: What should be checked before replacing an IC200CHS022J?
Before replacement, verify the carrier orientation, DIN rail or panel mounting method, field wiring, terminal assignments, compatible VersaMax I/O module, and overall backplane configuration. Confirming these items helps ensure reliable installation and uninterrupted operation.
