Product Parameters
| Parameter | Value |
|---|---|

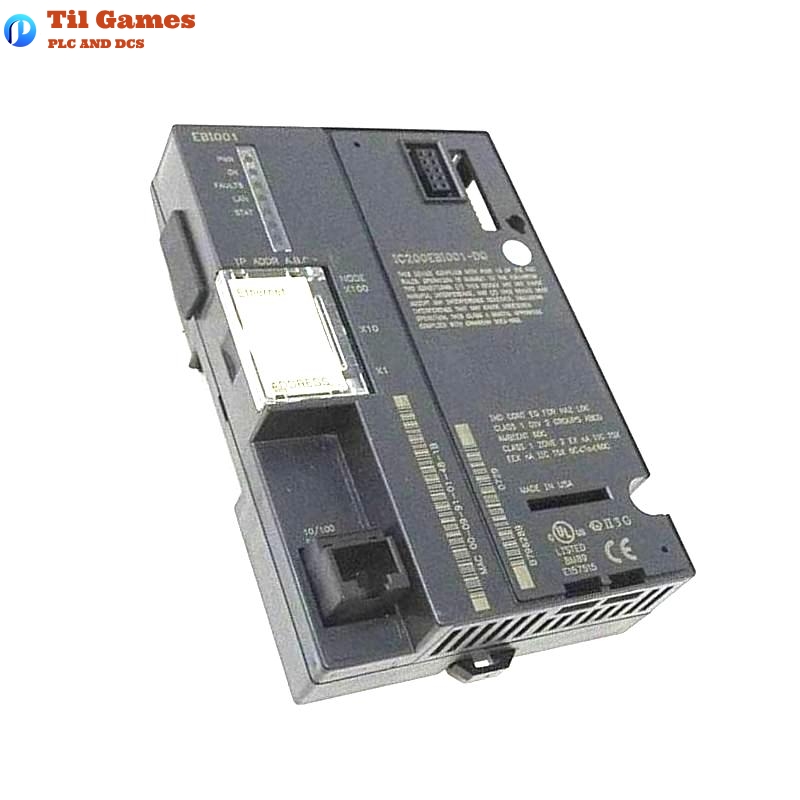

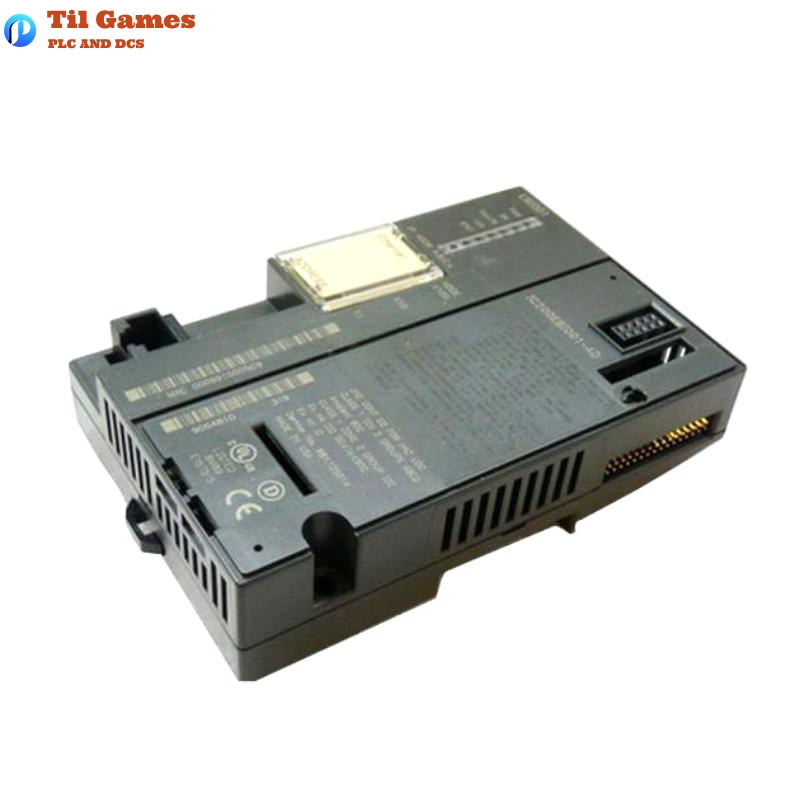

| Product Name | VersaMax Remote I/O Ethernet Network Interface Unit |
| Protocols Supported | EGD, Modbus TCP Server |
| Network Topology | Linear bus (trunkline/dropline) |
| Transmission Media | Ethernet twisted pair |
| Connector | RJ-45 |
| I/O Discrete Points | Up to 2048 points |
| I/O Analog Words | Up to 128 channels |
| I/O Data | Max 256 bytes |
| 5V Backplane Current Consumption | 175 mA |
| 3.3V Backplane Current Consumption | 425 mA |
| Dimensions | 133.4mm x 85.9mm x 32.8mm |
| Weight | 0.3 kg |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% – 95% Non-condensing |
FAQ
FAQ
Q1: How many modules can the GE IC200EBI001-DE Network Interface Unit support?
A1: The unit can support up to 8 modules per station.
Q2: What protocols are supported by the GE IC200EBI001-DE Network Interface Unit?
A2: It supports EGD and Modbus TCP Server protocols.
Q3: What is the current consumption for the GE IC200EBI001-DE Network Interface Unit?
A3: The 5V backplane current consumption is 175mA, and the 3.3V backplane current consumption is 425mA.
Q4: What are the dimensions of the GE IC200EBI001-DE Network Interface Unit?
A4: The dimensions are 133.4mm (W) x 85.9mm (H) x 32.8mm (D).
Q5: What network topology does the GE IC200EBI001-DE Network Interface Unit support?
A5: It supports a linear bus topology (trunkline/dropline).
Q6: What is the operating temperature range for the GE IC200EBI001-DE Network Interface Unit?
A6: The operating temperature range is 0 to 60°C (32 to 140°F).
Q7: What is the storage temperature range for the GE IC200EBI001-DE Network Interface Unit?
A7: The storage temperature range is -20 to 70°C (-4 to 158°F).
Q8: What is the maximum number of discrete I/O points the GE IC200EBI001-DE Network Interface Unit can support?
A8: It can support up to 2048 discrete I/O points.
