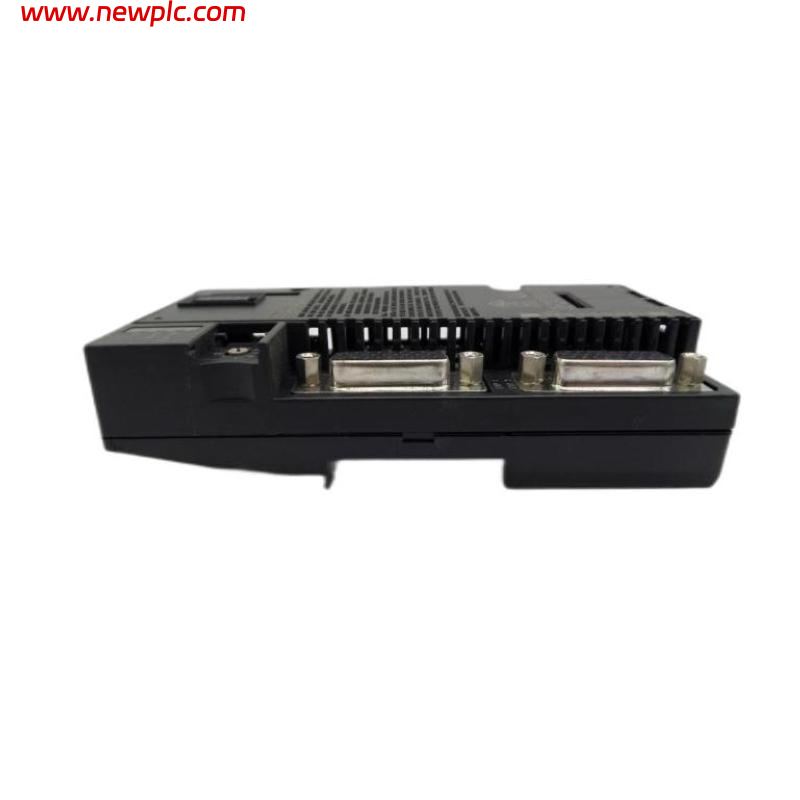

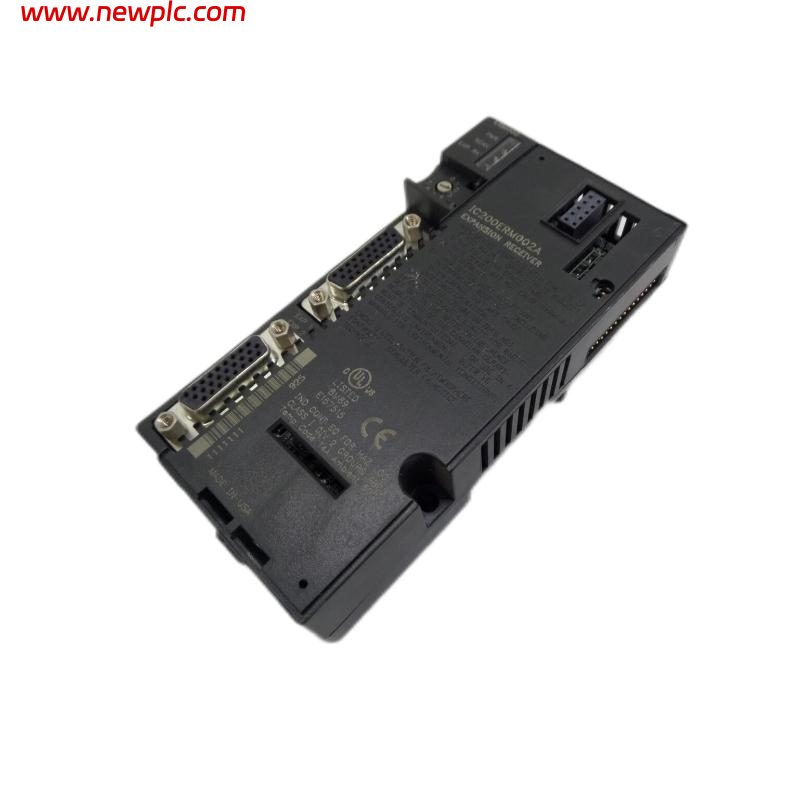

GE IC200ERM002F Expansion Receiver Module

FAQ

Q1: What is the GE Fanuc IC200ERM002F used for?
The IC200ERM002F is a VersaMax Expansion Receiver Module that connects an expansion I/O rack to a VersaMax PLC or NIU I/O station. It allows users to increase the number of available I/O modules without replacing the main controller.

Q2: How many expansion racks does the IC200ERM002F support?
The module supports up to seven expansion racks, with each expansion rack accommodating up to eight VersaMax I/O or specialty modules. This provides a flexible and scalable distributed I/O architecture.

Q3: Does the IC200ERM002F provide electrical isolation?
No. The IC200ERM002F is a non-isolated expansion receiver. It supports both differential and single-ended communication over the VersaMax expansion bus.

Q4: When is the IC200ETM001 Expansion Transmitter required?
An IC200ETM001 Expansion Transmitter is required when the system contains more than one expansion rack or when the expansion cable length exceeds 1 meter. For a single expansion rack with a cable length of 1 meter or less, the transmitter is not required.

Q5: What communication interfaces are available on the IC200ERM002F?
The module features two 26-pin female D-sub expansion ports. One port receives communication from the upstream transmitter or receiver, while the second port is used for daisy-chaining another expansion rack or connecting the terminator plug at the end of the network.

Q6: What status indicators are provided on the module?

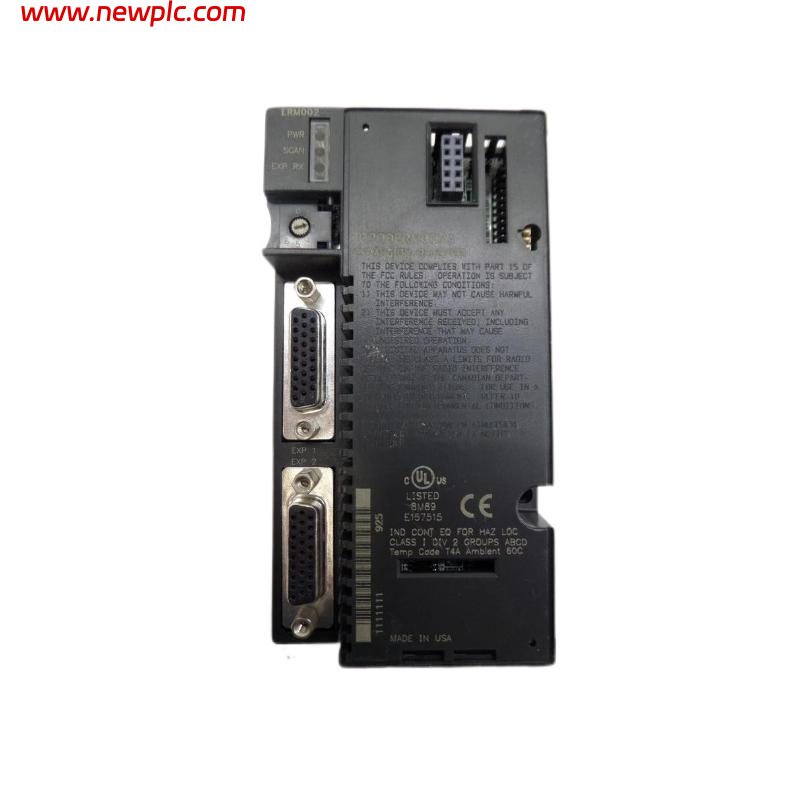

The IC200ERM002F includes three LEDs: PWR indicates module power, SCAN shows whether the CPU or NIU is actively scanning the expansion rack, and EXP RX indicates the status of expansion bus communication.

Q7: What does the “F” revision indicate?
The “F” suffix identifies the hardware revision of the IC200ERM002 module. It maintains compatibility with VersaMax systems while incorporating manufacturing and reliability improvements introduced during the product lifecycle.

Q8: What should be checked before replacing an IC200ERM002F module?
Before replacing the module, verify the VersaMax carrier base, power supply installation, expansion cable length, communication topology, terminator placement, and compatibility with the existing PLC or NIU configuration. Confirming these items helps ensure reliable communication across the entire expansion I/O system.
