Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

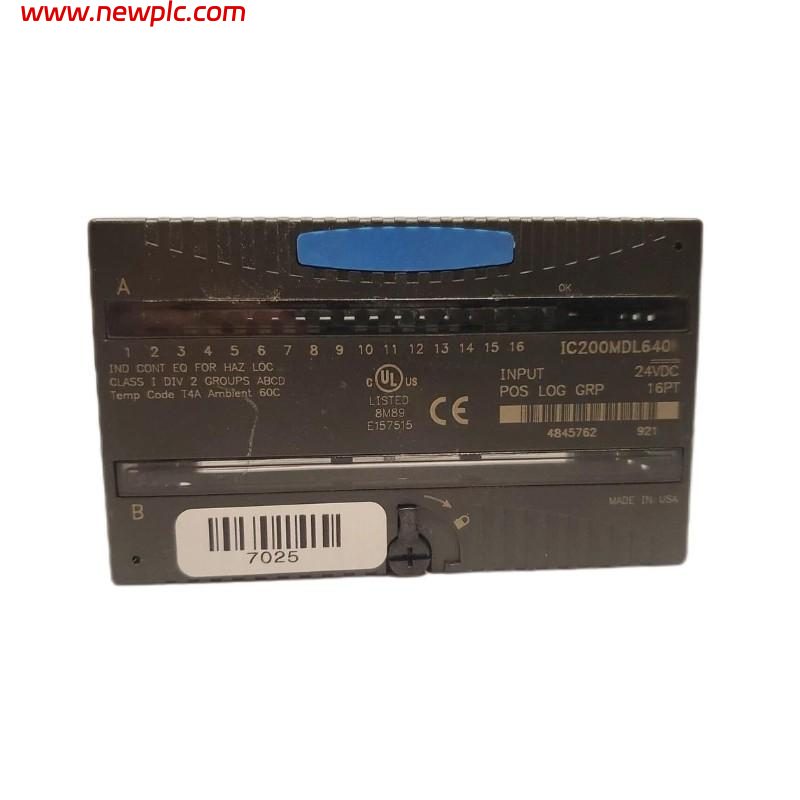

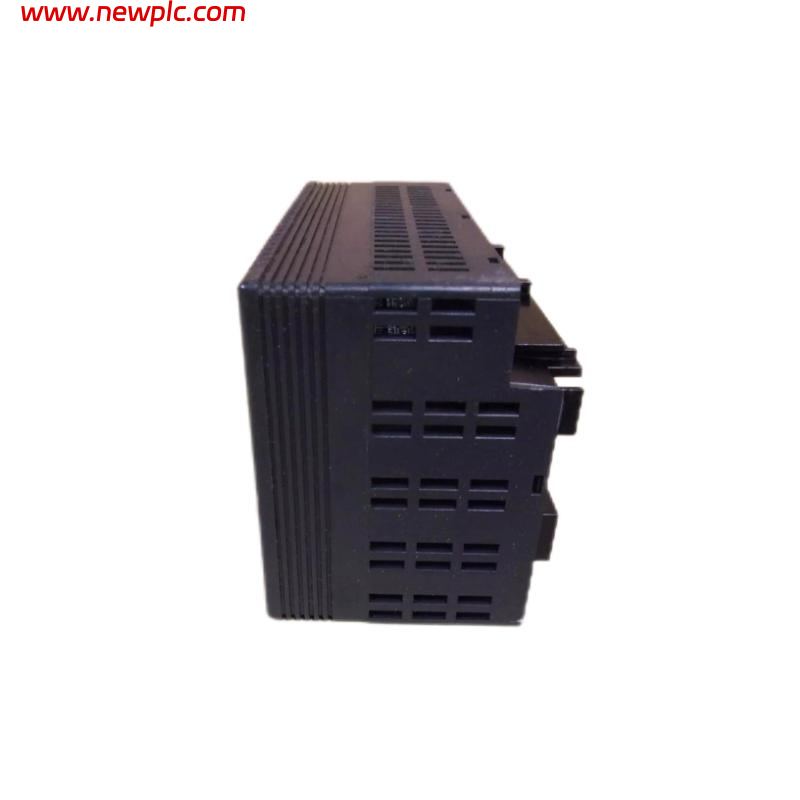

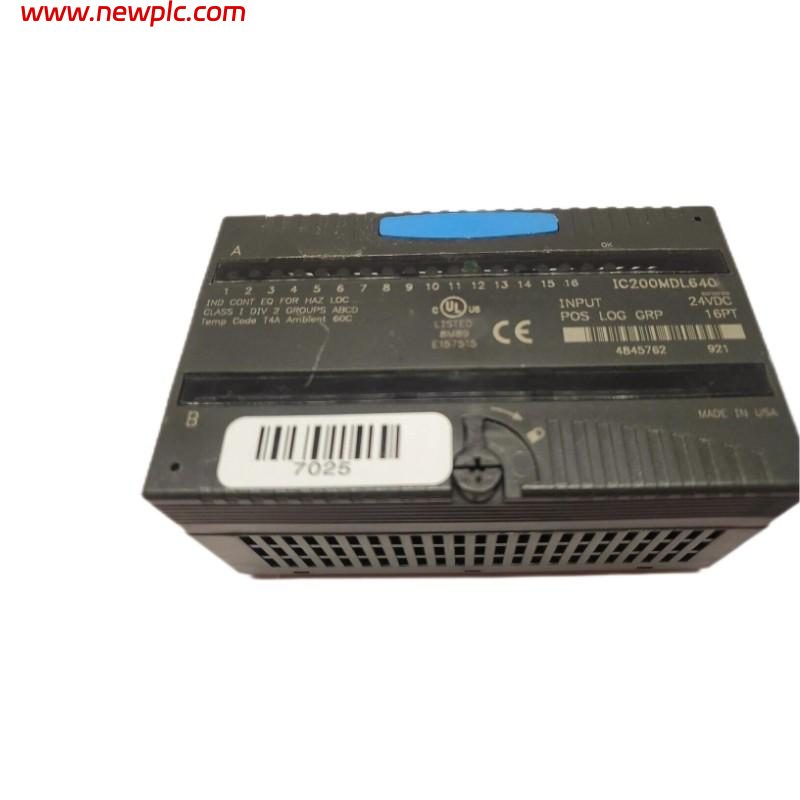

| Product Model | IC200MDL640C |
| Product Type | Discrete DC Input Module |
| Series | VersaMax I/O |
| Function | Receives digital DC signals from field devices and transfers input status data to the PLC controller |
| Input Type | 24 VDC Positive/Negative Logic Input |
| Number of Input Points | 16 points |
| Input Groups | 2 groups of 8 inputs |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 0–30 VDC |
| ON State Voltage | +15 to +30 VDC |
| OFF State Voltage | 0–5 VDC |
| ON State Current | 2.0–5.5 mA |
| OFF State Current | 0–0.5 mA maximum |
| Input Impedance | 10 kΩ maximum |
| Input Response Time | 0.5 ms maximum (hardware response) |
| Configurable Input Filter | 0 ms, 1 ms, or 7 ms |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute (field input to logic/frame ground) |
| Group-to-Group Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Point-to-Point Isolation | None |
| External Power Supply | Not required |
| Backplane Current Consumption | 25 mA maximum @ 5 VDC |
| LED Indicators | Individual input status LEDs and OK LED |
| Module ID | FFFF8008 |
| Logic Type | Positive logic and negative logic supported |
| Mounting Method | VersaMax I/O Carrier Base |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC and Distributed I/O |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 110 × 66.8 × 50 mm (4.33 × 2.63 × 1.97 in.) |
| Weight | Approx. 0.11 kg (0.25 lb) |
| Hardware Revision | C |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200MDL640C used for?
The IC200MDL640C is a VersaMax discrete input module used to collect ON/OFF signals from field devices such as switches, sensors, proximity detectors, and push buttons, then transmit the input status to the PLC CPU or network interface unit.
Q2: How many input channels does the IC200MDL640C provide?
The module provides 16 digital input points, arranged as two groups of eight inputs. Each group has its own common terminal, allowing flexible wiring configurations.
Q3: What voltage signals can the IC200MDL640C accept?
The module accepts 0–30 VDC input signals, with 24 VDC nominal operation. An input voltage between 15 and 30 VDC is recognized as an ON state, while 0 to 5 VDC is recognized as an OFF state.
Q4: Does the IC200MDL640C require an external power supply?
No. The module does not require a separate field power supply for its electronics. It receives operating power directly from the VersaMax backplane, with a maximum backplane current consumption of 25 mA at 5 VDC.
Q5: What is the difference between positive logic and negative logic operation?
The IC200MDL640C supports both positive and negative logic input wiring. Positive logic treats a positive voltage as an ON signal, while negative logic allows alternative field wiring arrangements. Revision C and later versions added negative logic input capability.
Q6: What diagnostic indicators are available on the IC200MDL640C?
The module provides an individual LED indicator for each input point to display the ON/OFF status of field signals, along with an OK LED indicating that backplane power and module operation are normal.
Q7: What does the “C” revision indicate?
The “C” suffix identifies the hardware revision of the IC200MDL640 module. Revision C added support for negative logic inputs while maintaining the same VersaMax installation compatibility and basic electrical specifications.
Q8: What should be checked before replacing an IC200MDL640C module?
Before replacement, verify the VersaMax carrier compatibility, input wiring method, 24 VDC signal levels, common terminal connections, PLC hardware configuration, and input filter settings to ensure proper operation after installation.
