Technical Specifications

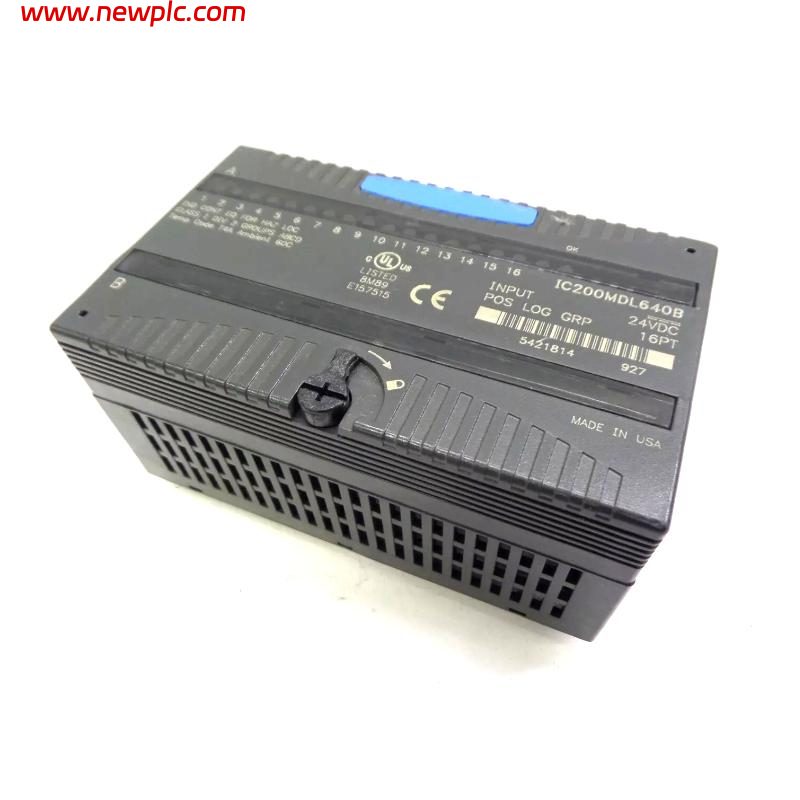

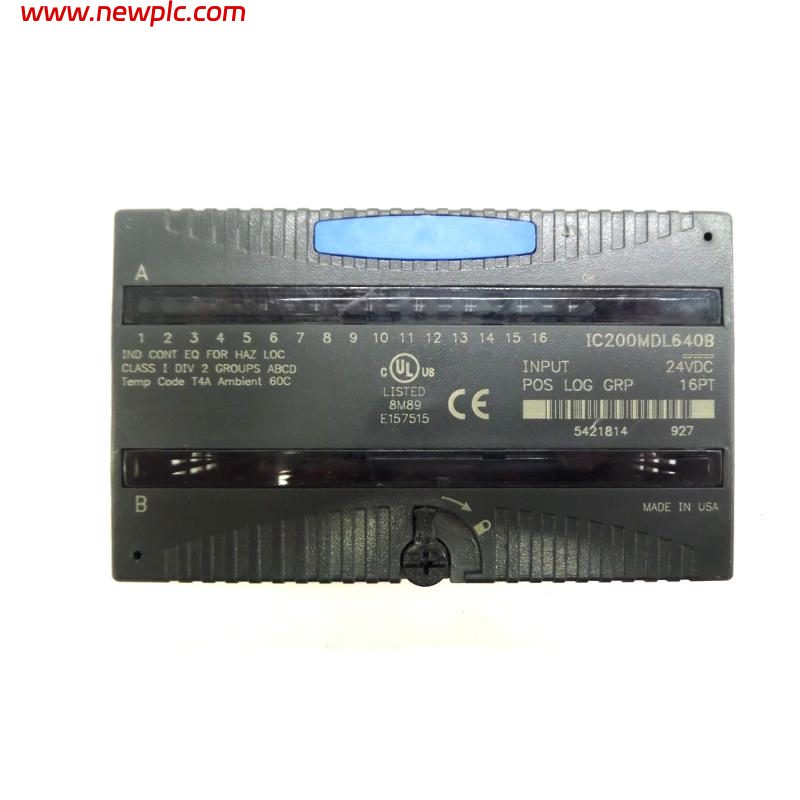

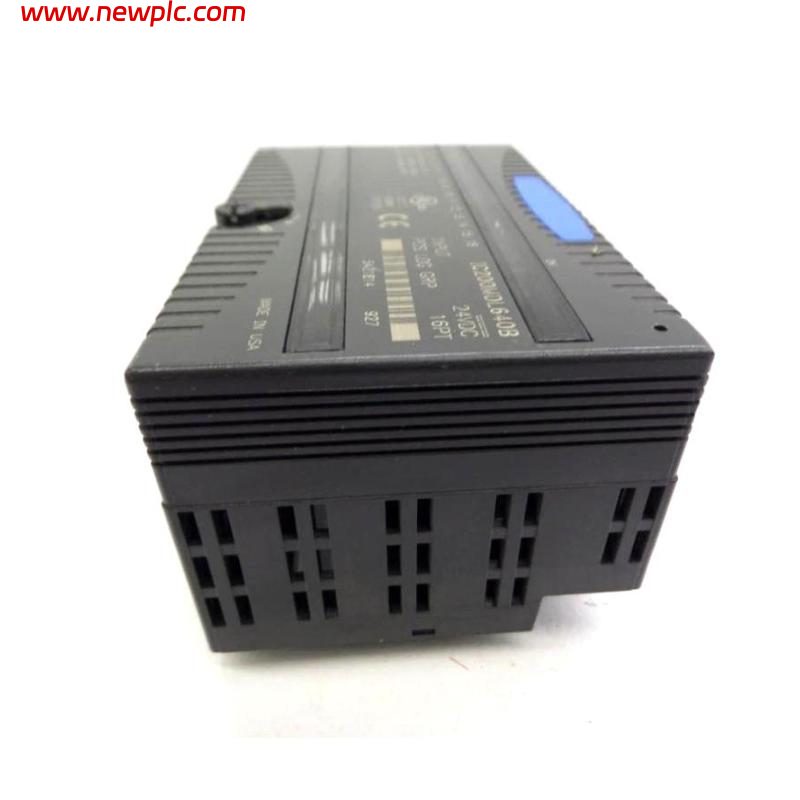

| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC200MDL640J |
| Product Type | Discrete DC Input Module |
| Series | VersaMax I/O |
| Function | Receives digital ON/OFF signals from field devices and transfers input status to the PLC or Network Interface Unit (NIU) |
| Input Type | Positive Logic / Negative Logic DC Input |
| Number of Input Points | 16 points |
| Input Groups | 2 groups of 8 inputs |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 0–30 VDC |
| ON-State Voltage | 15–30 VDC |
| OFF-State Voltage | 0–5 VDC |
| ON-State Current | 2.0–5.5 mA |
| OFF-State Current | 0–0.5 mA |
| Input Impedance | 10 kΩ maximum |
| Basic Response Time | 0.5 ms maximum |
| Configurable Input Filter | 0 ms, 1 ms (default), or 7 ms |
| Total Response Time | 0.5 ms, 1.5 ms, or 7.5 ms (depending on filter selection) |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute (field-to-logic and group-to-group) |
| Point-to-Point Isolation | None |
| External Power Supply | Not required |
| Backplane Current Consumption | 25 mA maximum @ 5 VDC |
| LED Indicators | 16 individual input LEDs and 1 OK LED |
| Module ID | FFFF8008 |
| Compatible Carrier Bases | IC200CHS001, IC200CHS002, IC200CHS003 and other compatible VersaMax carriers |
| Mounting Method | DIN rail mounted via VersaMax carrier |
| Compatible Systems | GE Fanuc / Emerson VersaMax PLC and VersaMax Distributed I/O |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 110 × 66.8 × 50 mm (4.33 × 2.63 × 1.97 in.) |
| Weight | Approx. 0.11 kg (0.25 lb) |
| Hardware Revision | J |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200MDL640J used for?
The IC200MDL640J is used to receive 24 VDC digital signals from field devices such as push buttons, proximity sensors, limit switches, and relay contacts, then transfer their ON/OFF status to a VersaMax PLC controller or Network Interface Unit (NIU).
Q2: How many input channels does the IC200MDL640J provide?
The module provides 16 discrete input channels, arranged in two groups of eight inputs. Each input has an individual LED indicator for quick status monitoring.
Q3: What input voltage does the IC200MDL640J support?
The module is designed for 24 VDC nominal operation and accepts an input voltage range of 0–30 VDC. An input is recognized as ON between 15–30 VDC and OFF between 0–5 VDC.
Q4: Does the IC200MDL640J require an external power supply?
No. The IC200MDL640J receives its operating power directly from the VersaMax backplane and does not require an external power supply for module operation.
Q5: Can the input response time be configured?
Yes. The module supports configurable input filter times of 0 ms, 1 ms (default), and 7 ms, allowing users to balance response speed and electrical noise immunity.
Q6: What isolation protection does the IC200MDL640J provide?
The module provides 250 VAC continuous isolation and 1500 VAC for one minute between the field wiring and PLC logic, as well as between input groups, helping improve system reliability in industrial environments.
Q7: What does the “J” revision indicate?
The “J” suffix identifies the hardware revision level of the IC200MDL640 module. Revision J reflects later manufacturing and reliability improvements while maintaining electrical specifications and compatibility with existing VersaMax systems.
Q8: What should be checked before replacing an IC200MDL640J module?
Before replacement, verify the VersaMax carrier compatibility, 24 VDC field wiring, positive/negative logic configuration, input filter settings, module addressing, and PLC hardware configuration to ensure reliable operation after installation.
