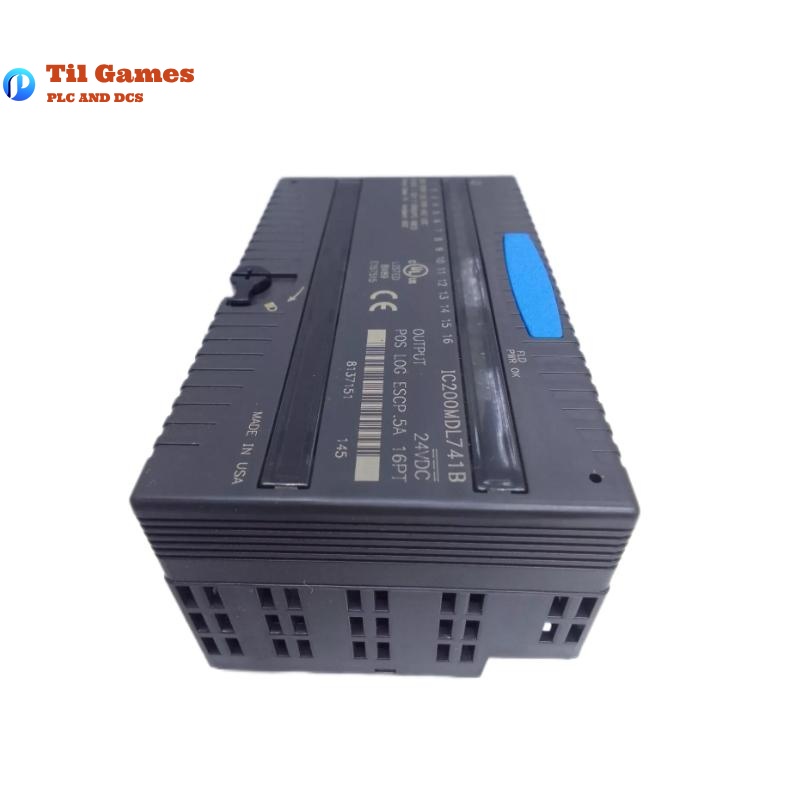

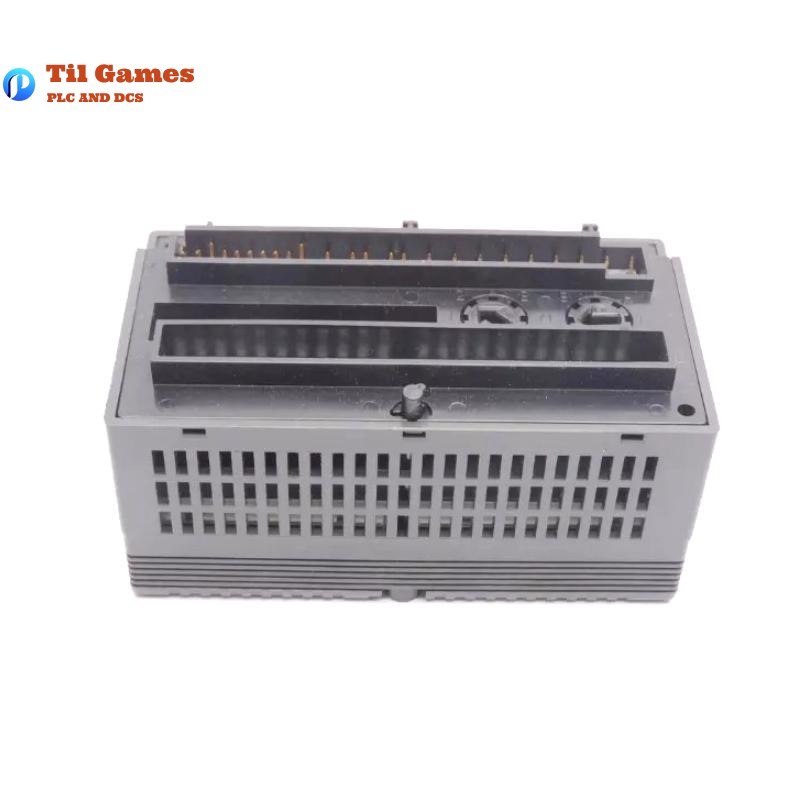

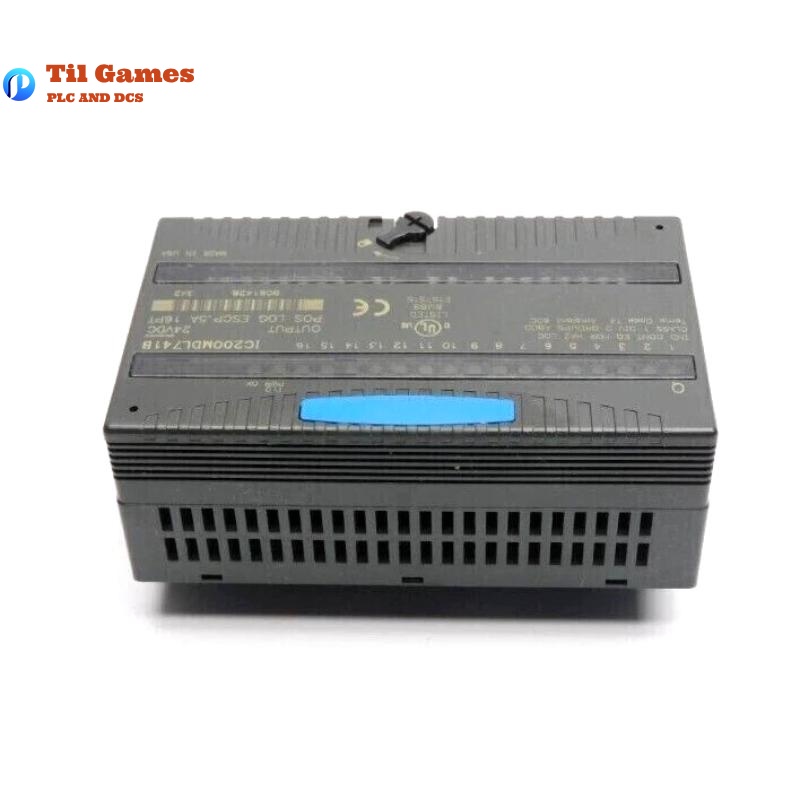

GE IC200MDL741B VersaMax Discrete Output Module Technical Specifications
| Parameter | Description |
|---|---|
| Module Type | DC Voltage Output Module, Negative Logic |
| Voltage Range | 12-24 VDC |
| Number of Output Points | 16 |
| Load Current per Point | 0.5 A max (resistive load) |
| Inrush Current | 2.0 A max for 100 ms |
| Output Response Time | 2 ms ON / 2 ms OFF |
| Output Type | Transistor |
| Output Polarity | Negative Logic |
| Points per Common | 2 groups of 8 |
| Connector Type | Terminal block (20 screws), included with the module |
| External Power Supply | 18-30 VDC (24 VDC nominal) |
| Protection Features | Short-circuit, overcurrent protection, flyback diodes |
| LED Indicators | One per point, plus FLD PWR and OK status LEDs |
| Backplane Current (5V) | 110 mA max |
| Channel Isolation | None |
| Dimensions (W x H x D) | 110 x 66.8 x 50 mm (excluding carrier and connectors) |
| Weight | 0.1 kg |
FAQ
Frequently Asked Questions (English)
Q1: Does the IC200MDL741B provide channel-to-channel isolation?
A1: No, the module does not offer channel-to-channel isolation.
Q2: What is the maximum load current per output point?
A2: Each point supports up to 0.5 A (resistive load).
Q3: What are the external power supply requirements?
A3: 18 to 30 VDC, with 24 VDC recommended as nominal.
Q4: Does the module have protection against short circuits or overcurrent?
A4: Yes, it includes short-circuit and overcurrent protection.
Q5: How many output points are grouped per common?
A5: Two groups of 8 output points each.
Q6: What type of wiring connector does the module use?
A6: A terminal block with 20 screws, included with the module.
Q7: What is the typical output response time?
A7: 2 ms for both ON and OFF states.
Q8: What are the module’s dimensions and weight?
A8: 110 x 66.8 x 50 mm; weight is 0.1 kg.
