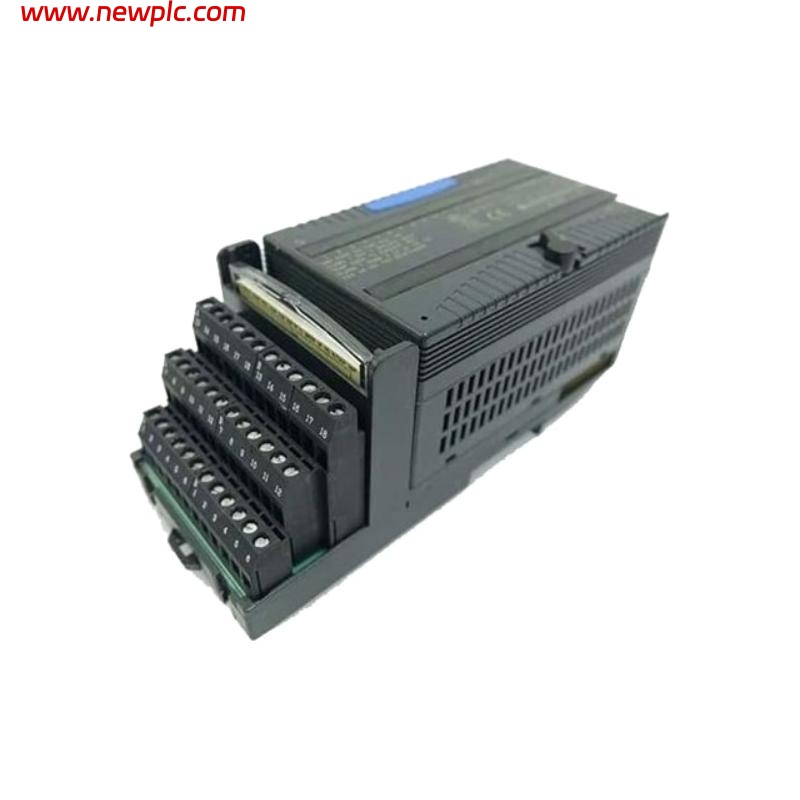

GE IC200MDL744 Discrete Output Module

FAQ

Q1: What is the IC200MDL744 used for?
It is a 24 V DC discrete output module designed to control field devices such as relays, solenoids, and indicator lights in VersaMax PLC systems.

Q2: How many output points does it provide?
The module provides 8 discrete output points.

Q3: What type of output logic does it use?
It uses positive logic (sourcing) transistor outputs.

Q4: What is the maximum output current per point?
Each output can deliver up to 2 A, subject to group limitations.

Q5: What voltage range does it operate within?
It operates within an 18–30 V DC range.

Q6: Does the module include protection features?
Yes, it includes short-circuit and overload protection.

Q7: What are the physical dimensions and weight?
The module measures approximately 3.0 cm × 8.0 cm × 6.0 cm and weighs about 0.22 kg.

Q8: Are status indicators included?
Yes, each output point has an individual LED indicator.

GE IC200MDL744
