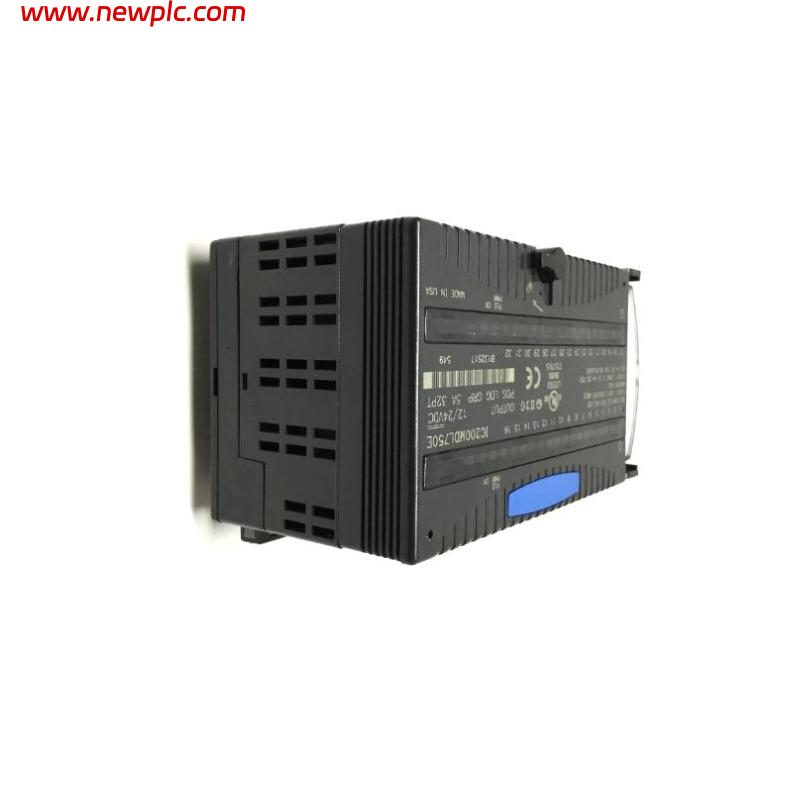

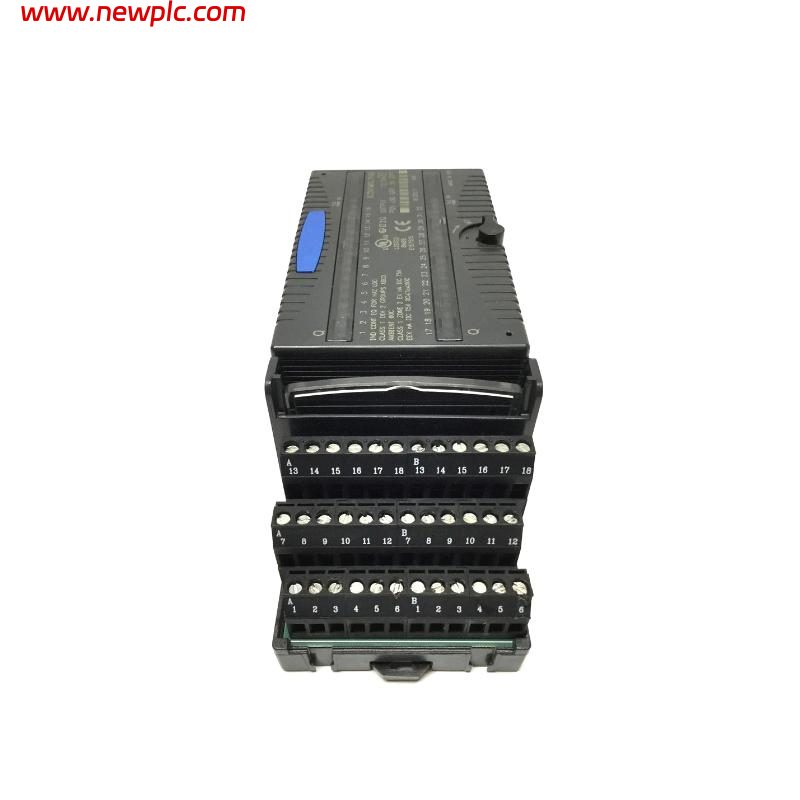

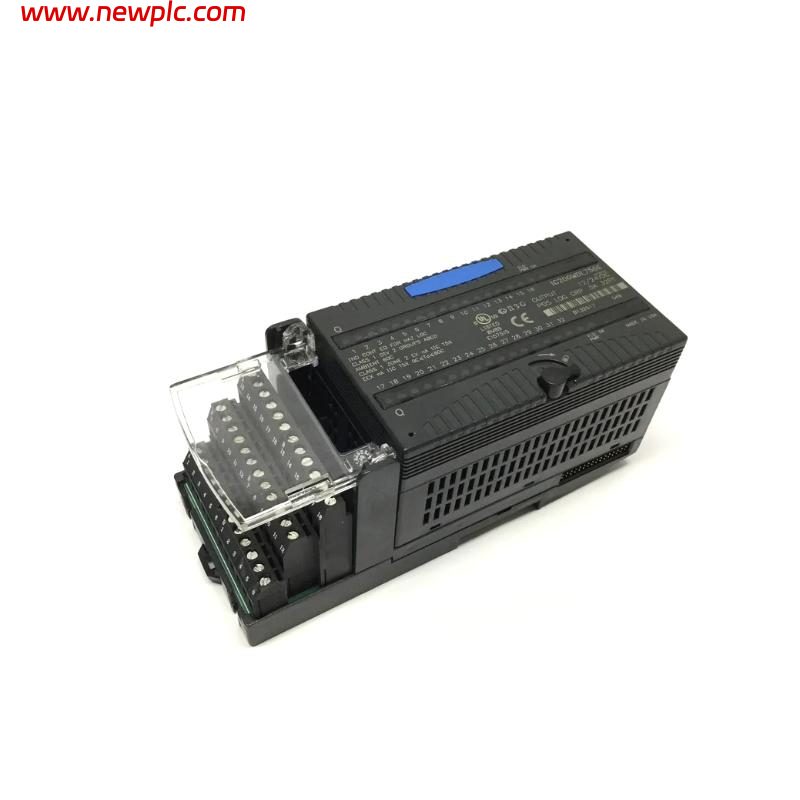

GE IC200MDL750C Discrete DC Output Module

FAQ

Q1: What is the GE Fanuc IC200MDL750C used for?
The IC200MDL750C is a VersaMax 32-point discrete DC output module used to control external field devices by providing ON/OFF output signals from a PLC or network interface unit. Typical applications include controlling relays, solenoid valves, contactors, and indicator lamps.

Q2: How many output channels does the IC200MDL750C provide?
The module provides 32 positive logic output points, arranged into two groups of 16 outputs. This high-density design allows more field devices to be controlled within a compact VersaMax I/O system.

Q3: What voltage and current ratings are supported by the IC200MDL750C?
The module supports 12/24 VDC nominal output voltage with an operating range of 10.2–30 VDC. Each output channel can handle up to 0.5 A of load current.

Q4: Does the IC200MDL750C require an external power supply?
Yes. The output load power must be supplied by an external 10.2–30 VDC field power supply. The VersaMax backplane only provides power for the module electronics.

Q5: What type of loads can be connected to the IC200MDL750C?
The module is suitable for switching DC loads such as solenoid valves, relay coils, contactors, pilot lights, and other industrial devices requiring 12/24 VDC control signals.

Q6: Does the IC200MDL750C provide output isolation?
Yes. The module provides isolation between the user field circuits and internal logic, rated at 250 VAC continuous and 1500 VAC for one minute. However, individual output points are not isolated from each other.

Q7: What do the LEDs on the IC200MDL750C indicate?
Each output point has an individual LED to show its ON/OFF status. The OK LED indicates backplane power status, while the FLD PWR LED indicates the presence of field power.

Q8: What should be checked before replacing an IC200MDL750C module?
Before replacement, verify the VersaMax carrier base compatibility, output voltage, field power supply rating, load current requirements, wiring configuration, and PLC hardware configuration. Proper verification helps prevent wiring errors and ensures reliable system operation.

Discrete DC Output Module GE IC200MDL750C
