Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

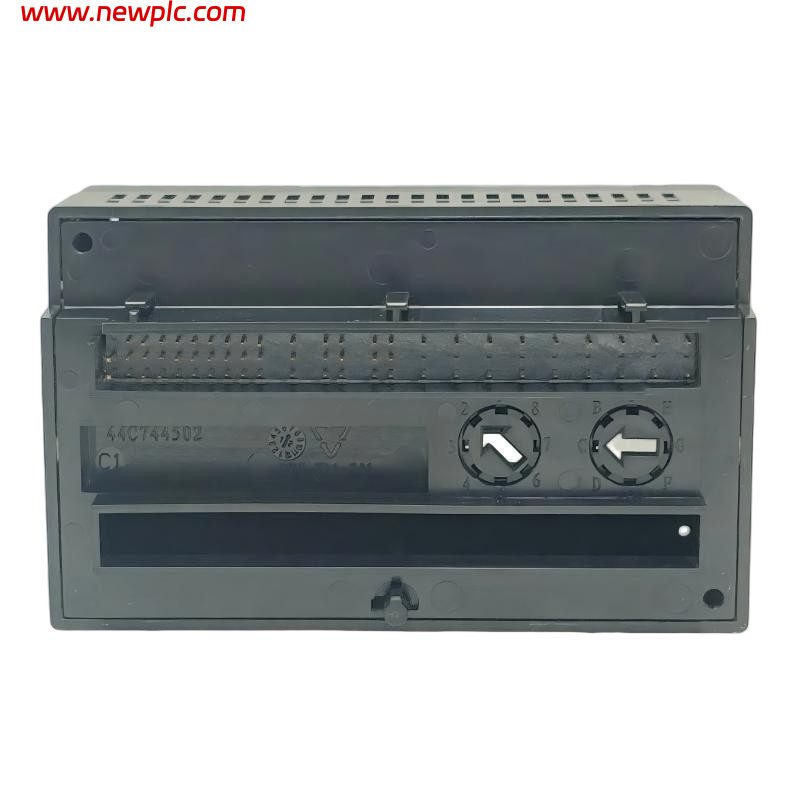

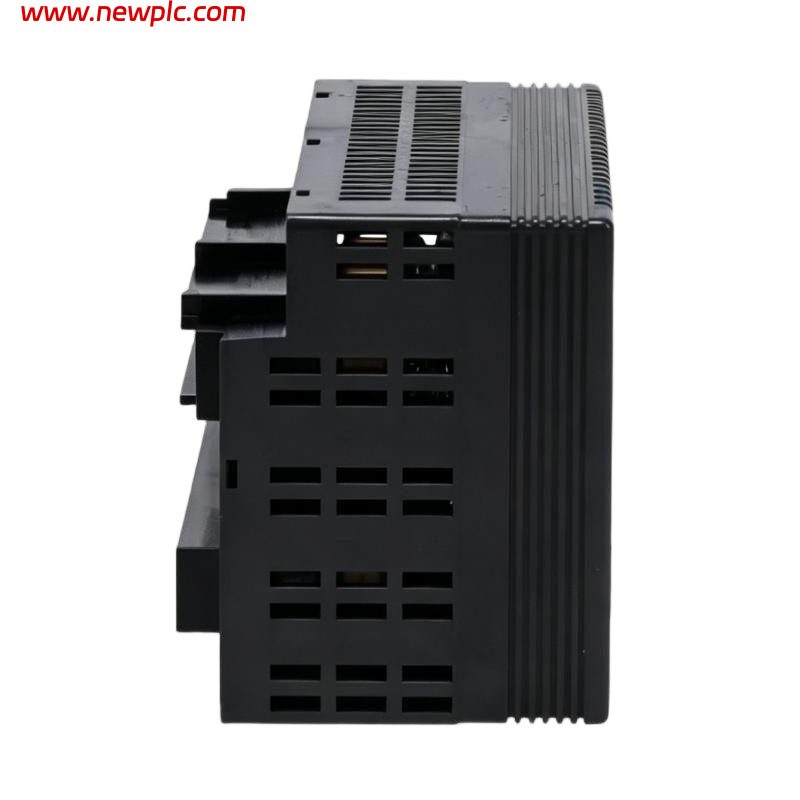

| Product Model | IC200MDL840F |
| Product Type | Discrete Mixed I/O Module |
| Series | VersaMax PLC |
| Function | Combines 24 VDC digital inputs and relay outputs in one compact I/O module |
| Input Type | 24 VDC Positive Logic Inputs |
| Number of Inputs | 16 points |
| Output Type | Relay Outputs (Form A, Normally Open) |
| Number of Outputs | 16 points |
| Total I/O Points | 32 points (16 inputs + 16 outputs) |
| Input Voltage | 24 VDC nominal |
| Input Voltage Range | 18–30 VDC |
| Input Logic | Positive logic |
| Input ON-State Current | 2.0–5.5 mA |
| Input OFF-State Current | 0–0.5 mA |
| Input Impedance | 10 kΩ maximum |
| Output Voltage Range | 5–265 VAC / 5–30 VDC |
| Output Frequency | 47–63 Hz (AC) |
| Relay Contact Type | Form A (SPST Normally Open) |
| Output Current Rating | 2.0 A maximum per point |
| Maximum AC Load | 2 A @ 5–265 VAC resistive load |
| Maximum DC Load | 2 A @ 5–30 VDC resistive load |
| High Voltage DC Load | 0.2 A @ 31–125 VDC |
| Output Isolation | Individual relay isolation |
| Output Protection | No internal fuses or snubbers |
| Input Response Time | Approx. 0.5 ms ON / 0.5 ms OFF |
| Output Response Time | Approx. 10 ms ON / 10 ms OFF |
| External Power Supply | 24 VDC field supply required |
| Backplane Current Consumption | Approx. 300 mA @ 5 VDC maximum |
| LED Indicators | Individual I/O status LEDs, FLD PWR LED, OK LED |
| Compatible Carrier | IC200CHSxxx VersaMax carrier |
| Compatible Systems | GE Fanuc VersaMax PLC |
| Installation Method | DIN rail mounting through carrier base |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (W × H × D) | Approx. 66.8 × 110 × 50 mm (2.63 × 4.3 × 1.96 in.) |
| Weight | Approx. 0.35 kg (0.77 lb) |
| Hardware Revision | F |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200MDL840F used for?
The IC200MDL840F is used in VersaMax PLC systems to combine digital input monitoring and relay output control for industrial automation applications.
Q2: How many input and output channels does the IC200MDL840F provide?
The module provides 16 digital inputs and 16 relay outputs, giving a total of 32 discrete I/O points.
Q3: What type of input signals can the IC200MDL840F accept?
The input section accepts 24 VDC positive logic signals from field devices such as proximity sensors, push buttons, limit switches, and switches.
Q4: What type of outputs are available on the IC200MDL840F?
The module provides 16 Form A relay outputs that can switch both AC and DC loads.
Q5: What is the maximum output current of each relay point?
Each relay output supports up to 2.0 A for suitable resistive loads, including 5–265 VAC and 5–30 VDC applications.
Q6: Does the IC200MDL840F require an external power supply?
Yes. A 24 VDC field power supply is required for the input/output field circuits and relay operation.
Q7: Which PLC systems are compatible with the IC200MDL840F?
The IC200MDL840F is designed for GE Fanuc VersaMax PLC systems and must be installed on a compatible IC200CHS series carrier.
Q8: What should be checked before replacing an IC200MDL840F module?
Before replacement, check the VersaMax carrier compatibility, 24 VDC input wiring, relay output load ratings, field power supply, PLC configuration, and terminal connections to ensure correct operation.
