Technical Specifications
| Parameter | Specification |
|---|---|

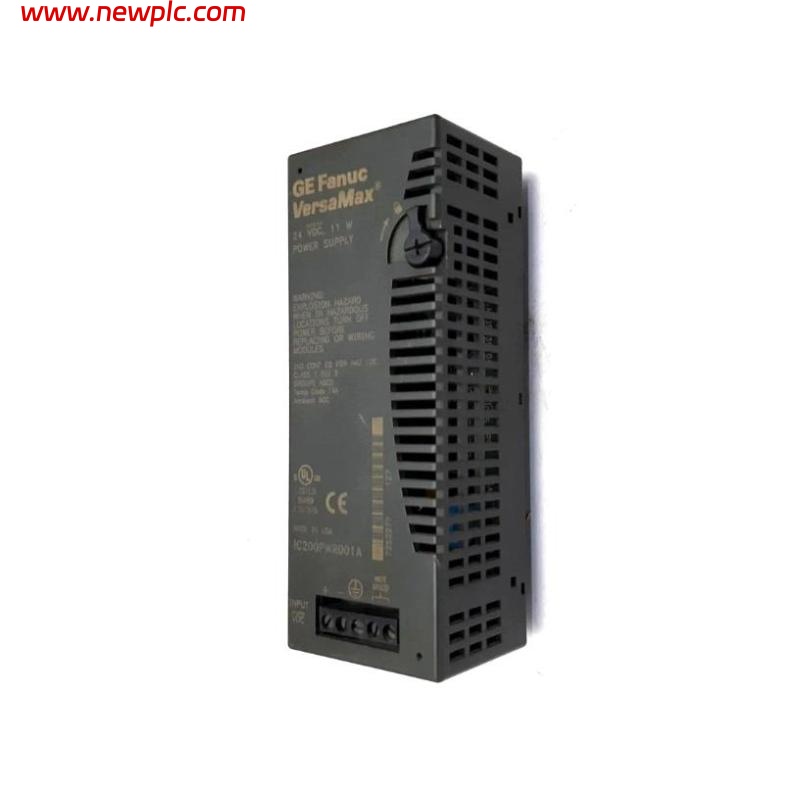

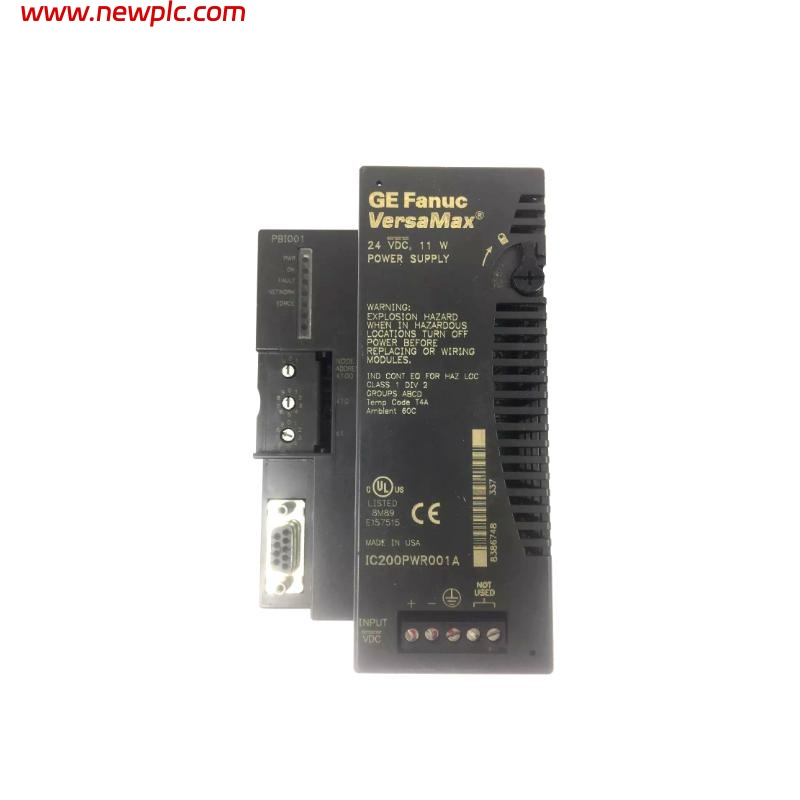

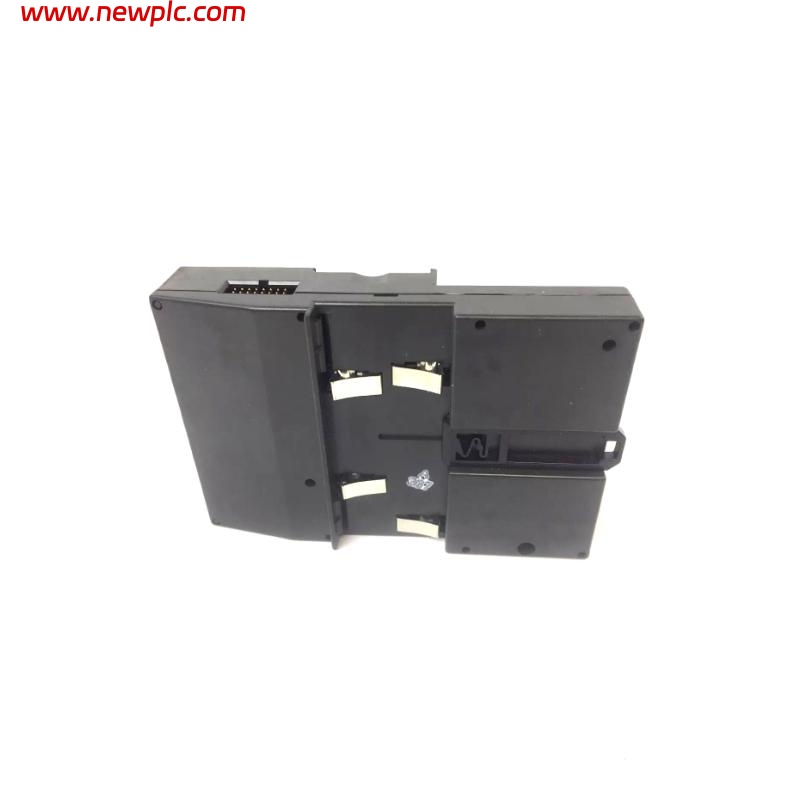

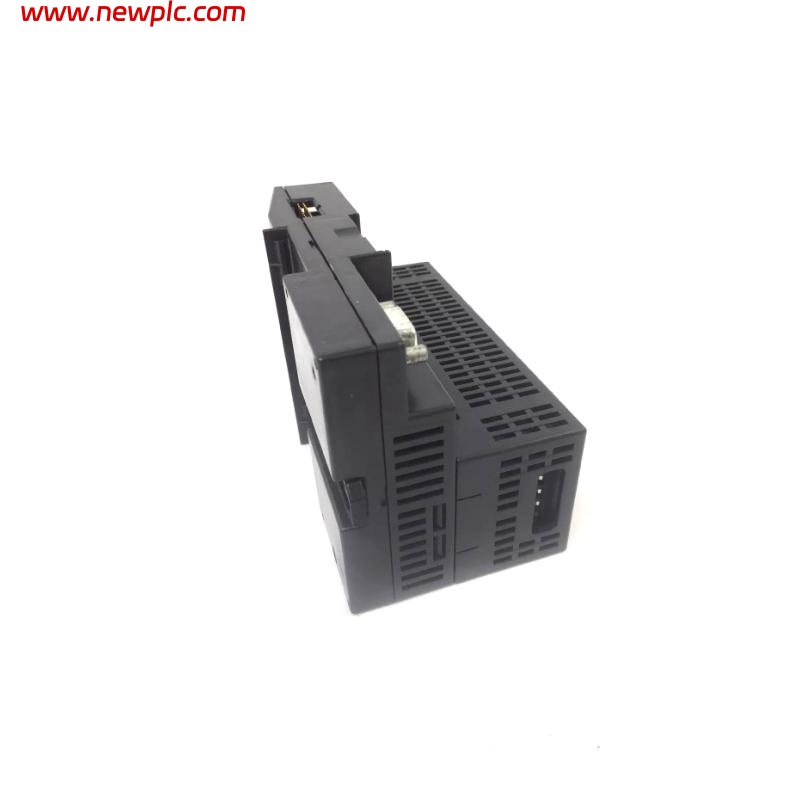

| IC200PWR001 | GE Fanuc VersaMax Power Supply Module |
| Manufacturer | General Electric / GE Fanuc |
| Series | VersaMax |
| Model Number | IC200PWR001 |
| Product Type | DC Power Supply Module |
| Input Voltage | 18 – 30 V DC (nominal 24 V DC) |
| Input Power | 11 W |
| Output Voltages | 5 V DC and 3.3 V DC |
| Maximum Output Current | Total 1.5 A (3.3 V DC: 0.25 A, 5 V DC: remainder) |
| Inrush Current | 20 A @ 24 V DC; 25 A @ 30 V DC |
| Holdup Time | 10 ms |
| Protection | Short circuit, overload, reverse polarity |
| Mounting | DIN-rail / VersaMax baseplate mounting |
| Status Indicators | Power OK LED (in some revisions) |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Storage Temperature | −40 °C to 85 °C (−40 °F to 185 °F) |
| Humidity | 5 % to 95 % non-condensing |
| Dimensions (approx.) | 133.4 mm × 39 mm × (depth depends on DIN rail) |
| Weight | ~0.11 kg (110 g) |
| Mounting | Plug-in into VersaMax backplane / DIN rail carrier |
FAQ
FAQ
Q1. What is the purpose of IC200PWR001?
It supplies regulated DC power to the VersaMax PLC backplane, powering CPUs, NIUs, and I/O modules.
Q2. What input voltage range does this power supply accept?
It accepts 18 – 30 V DC, with a nominal rating of 24 V DC.
Q3. What output voltages are provided by this module?
The module provides regulated 5 V DC and 3.3 V DC outputs.
Q4. How much current can the unit supply?
Total output current is up to 1.5 A, with up to 0.25 A available on the 3.3 V rail.
Q5. Does it include protection features?
Yes, it includes protection against short circuits, overloads, and reverse polarity.
Q6. What are the physical dimensions of IC200PWR001?
The module is approximately 133.4 mm wide and 39 mm tall (depth varies by carrier).
Q7. What is the operating environment for this power supply?
It operates in industrial conditions from 0 °C to 60 °C with 5 % to 95 % non-condensing humidity.
Q8. How is this module mounted?
It mounts onto the VersaMax backplane or onto a DIN rail carrier in control cabinets.
