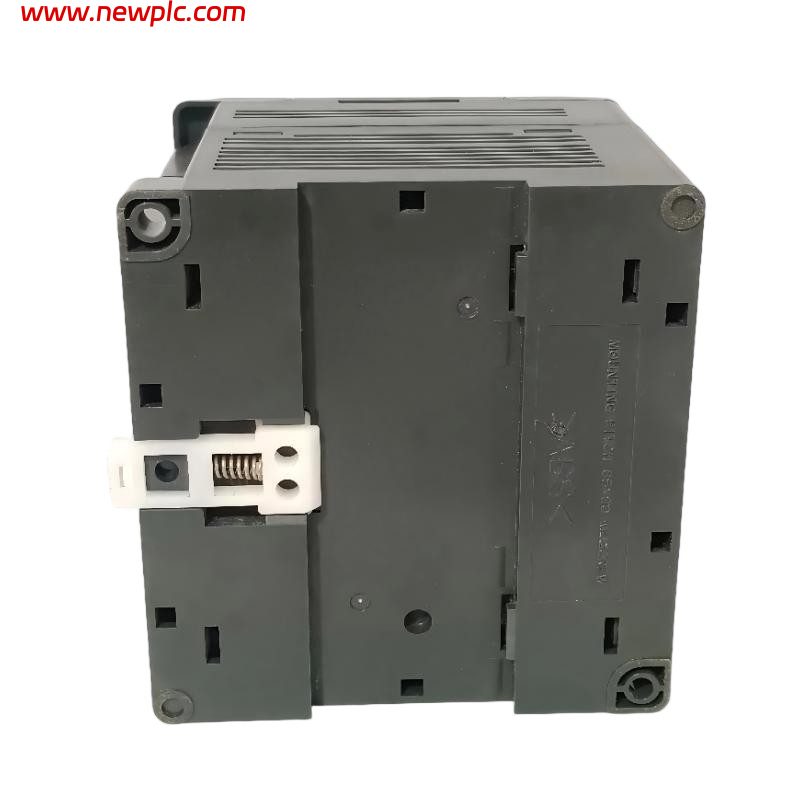

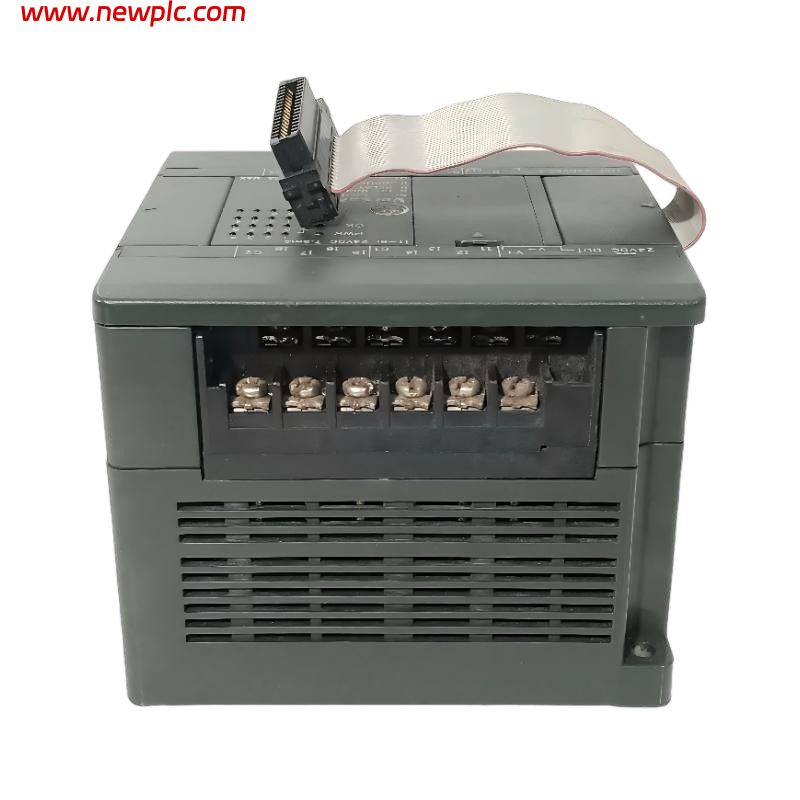

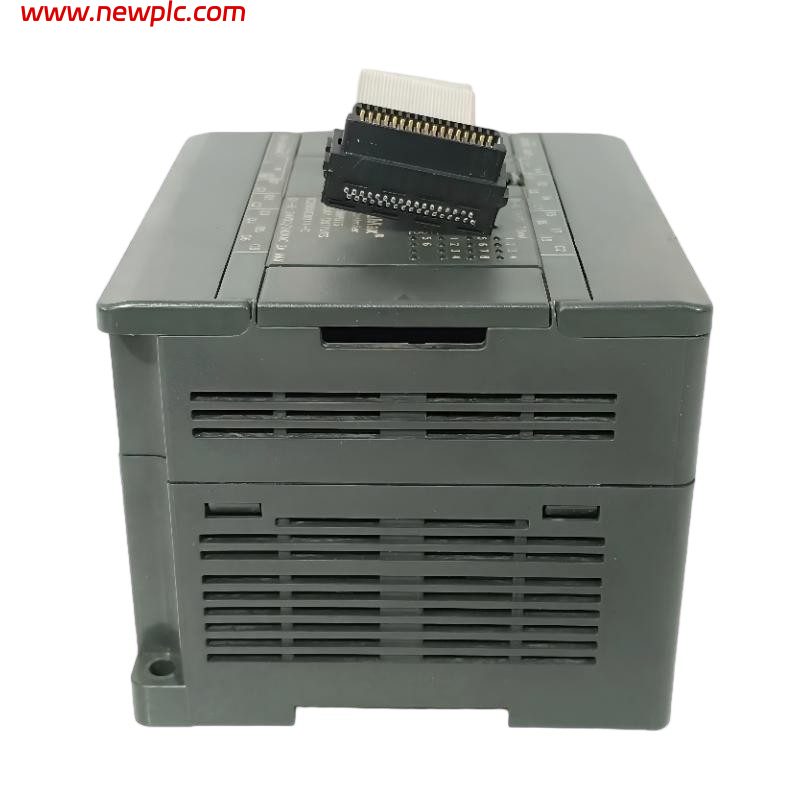

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC200UEX122-B |
| Product Type | VersaMax Micro Expansion Unit |
| Series | VersaMax Micro PLC |
| Function | Digital I/O expansion module for VersaMax Micro PLC |
| Module Type | 14-point Expansion Unit |
| Total I/O Points | 14 |
| Digital Inputs | 8 × 24 VDC positive/negative logic inputs |
| Digital Outputs | 6 × 24 VDC transistor outputs with ESCP |
| Output Configuration | 4 low-current outputs + 2 high-current outputs |
| Output Protection | Electronic Short Circuit Protection (ESCP) |
| Input Voltage | 24 VDC nominal |
| Input Voltage Range | 19.2–30 VDC |
| Output Voltage | 24 VDC |
| Output Supply | External 12/24 VDC required |
| Maximum +24 VDC Auxiliary Output | 200 mA (for input circuits and field devices) |
| Maximum Output Current | High-current outputs support higher inductive loads; outputs withstand up to 8× rated inrush current |
| Input Power Consumption | 4 W typical |
| Input Current | 0.16 A typical @ 24 VDC |
| Inrush Current | 1 A maximum |
| Hold-Up Time | 10 ms minimum @ 19.2 VDC |
| Isolation | Optically isolated field circuits |
| LED Indicators | Power, Input, and Output status LEDs |
| Terminal Type | Removable screw terminal blocks |
| Mounting Method | DIN rail or panel mounting |
| Compatible PLC | GE Fanuc VersaMax Micro PLC |
| Configuration Software | VersaPro, Proficy Machine Edition |
| Operating Temperature | 0°C to +55°C (32°F to +131°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | 90 × 95 × 76 mm (3.6 × 3.8 × 3.0 in.) |
| Weight | Approx. 270 g (0.60 lb) |
| Hardware Revision | B |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC200UEX122-B used for?
The IC200UEX122-B expands the digital I/O capacity of VersaMax Micro PLCs by adding 8 digital inputs and 6 protected transistor outputs for machine control and industrial automation.
Q2: How many I/O points does the IC200UEX122-B provide?
It provides 14 total I/O points, consisting of 8 × 24 VDC digital inputs and 6 × 24 VDC transistor outputs.
Q3: What is ESCP on the IC200UEX122-B?
ESCP stands for Electronic Short Circuit Protection, which automatically protects the transistor outputs from short circuits without requiring external fuses.
Q4: Does the IC200UEX122-B require an external power supply?
Yes. The module operates from a 24 VDC power supply, and an external 12/24 VDC source is required to power the output circuits.
Q5: Can the outputs drive inductive loads?
Yes. The transistor outputs are designed to handle high inrush currents—up to 8 times the rated current—making them suitable for lamps, relays, and other inductive loads.
Q6: Which PLCs are compatible with the IC200UEX122-B?
The IC200UEX122-B is compatible with GE Fanuc VersaMax Micro PLC systems that support expansion modules.
Q7: What are the physical dimensions and weight of the module?
The module measures approximately 90 × 95 × 76 mm (3.6 × 3.8 × 3.0 in.) and weighs about 270 g (0.60 lb).
Q8: What should be checked before replacing an IC200UEX122-B?
Before replacement, verify the VersaMax Micro CPU compatibility, external 24 VDC supply, I/O wiring, terminal assignments, expansion configuration, and PLC program settings to ensure proper operation.
