Technical Specifications
| Parameter | Description |
|---|---|

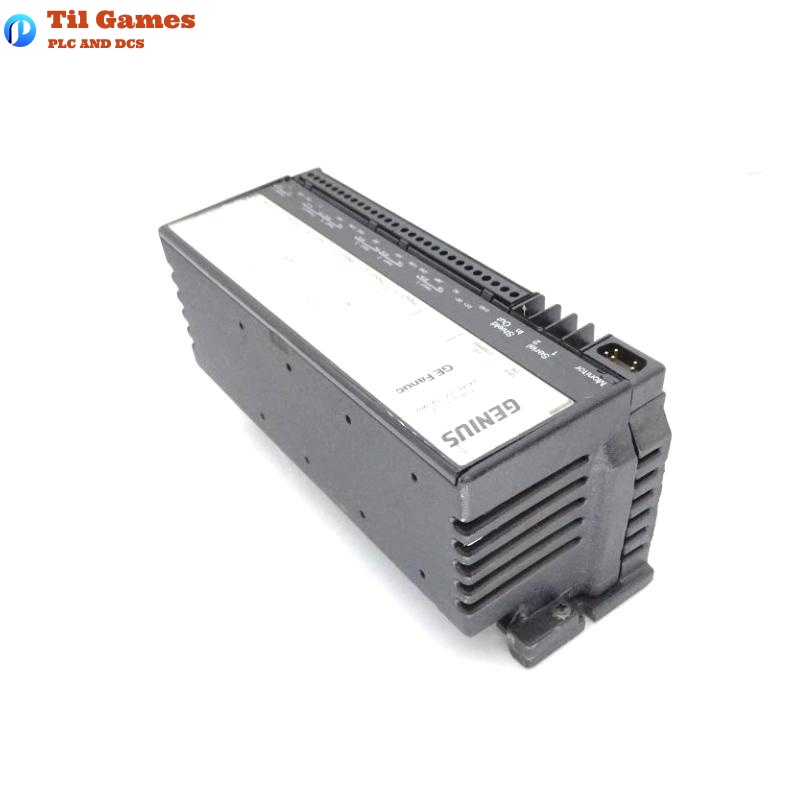

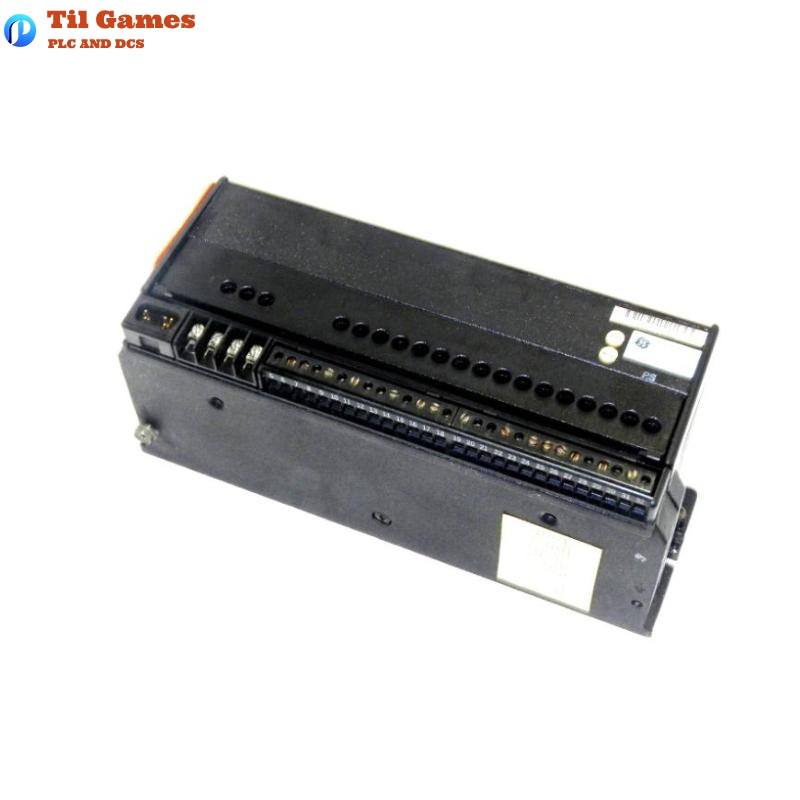

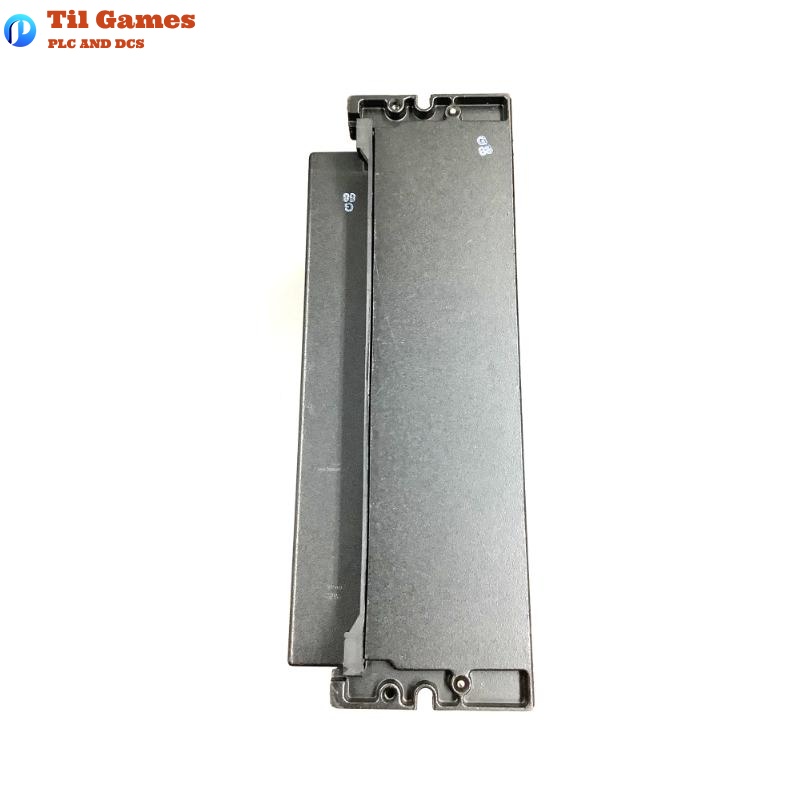

| Model | GE IC660BBA020 Genius Analog I/O Block |
| Input Channels | 4 Analog Inputs |
| Output Channels | 2 Analog Outputs |
| Input Range Options | -10 to +10 VDC, 0 to +10 VDC, 0 to +5 VDC, 4–20 mA, -5 to +5 VDC |
| Output Range | -10 to +10 VDC, 4–20 mA |
| Resolution | 12-bit plus sign |
| Input Filter Time | Selectable; typical 128 ms |
| Alarm Input Mode | Configurable (Yes/No) |
| Alarm Threshold Range | Low/High: -10000 to +10000 engineering units |
| Default Output Values | Configurable for each channel |
| Output Load | 0 to 300 Ohms (Current), 2000 Ohms max. (Voltage) |
| Redundancy Support | Hot Standby Mode |
| Baud Rate | 153.6 Kbps (Standard/Extended), 76.8 Kbps, 38.4 Kbps |
| Configuration Protection | Yes |
| Diagnostics | Built-in diagnostic reporting |
| Power Supply | Internal DC/DC converter |
| Case Grounding | Shared ground for outputs and case |
| Dimensions | 224.4 mm x 88.9 mm x 100 mm |
| Weight | 1.81 kg |
FAQ
FAQ
Q1: What input signal ranges are supported by the IC660BBA020?
A1: It supports -10 to +10 VDC, 0 to +10 VDC, 0 to +5 VDC, -5 to +5 VDC, and 4–20 mA ranges.
Q2: How many analog output channels does it provide?
A2: The module provides 2 analog output channels.
Q3: Does the module support redundancy?
A3: Yes, it supports Hot Standby redundancy mode.
Q4: Is alarm input functionality available?
A4: Yes, it includes a configurable alarm input mode with user-defined thresholds.
Q5: What is the signal resolution of the module?
A5: The resolution is 12 bits plus a sign bit.
Q6: What are the load specifications for outputs?
A6: Current output: 0–300 Ohms; Voltage output: up to 2000 Ohms.
Q7: What baud rates does it support for communication?
A7: Supported baud rates are 38.4 Kbps, 76.8 Kbps, and 153.6 Kbps (standard and extended).
Q8: What are the module’s physical dimensions and weight?
A8: The dimensions are 224.4 x 88.9 x 100 mm, and the weight is 1.81 kg.
