Technical Specifications
| Parameter | Description |
|---|---|

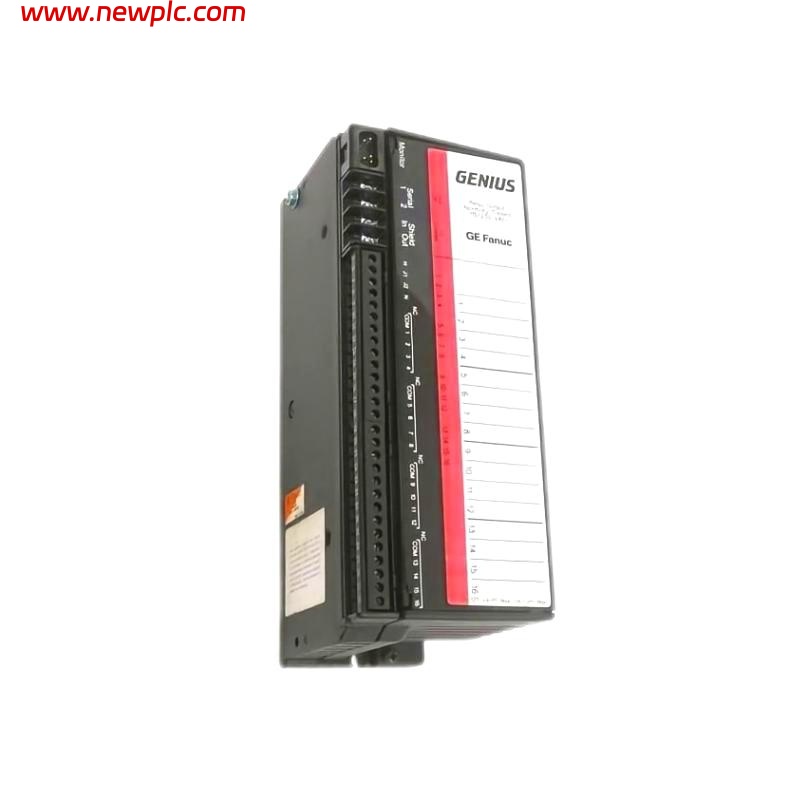

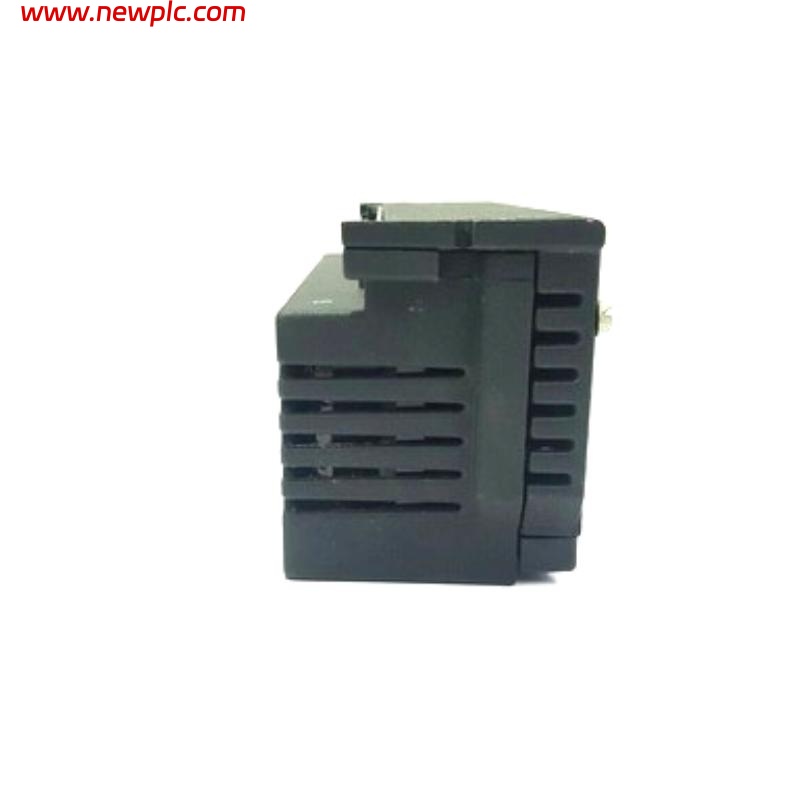

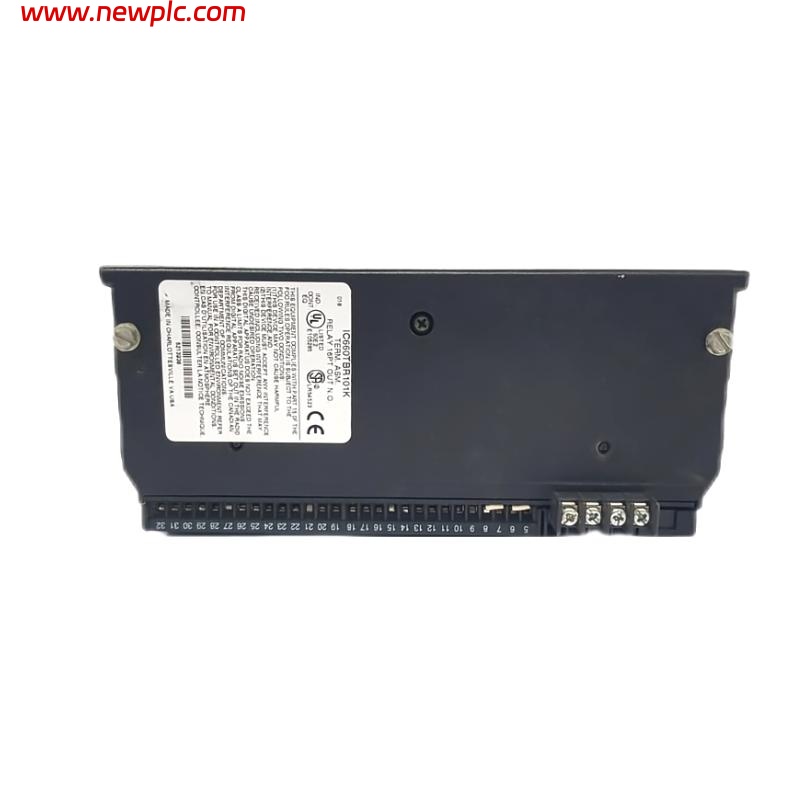

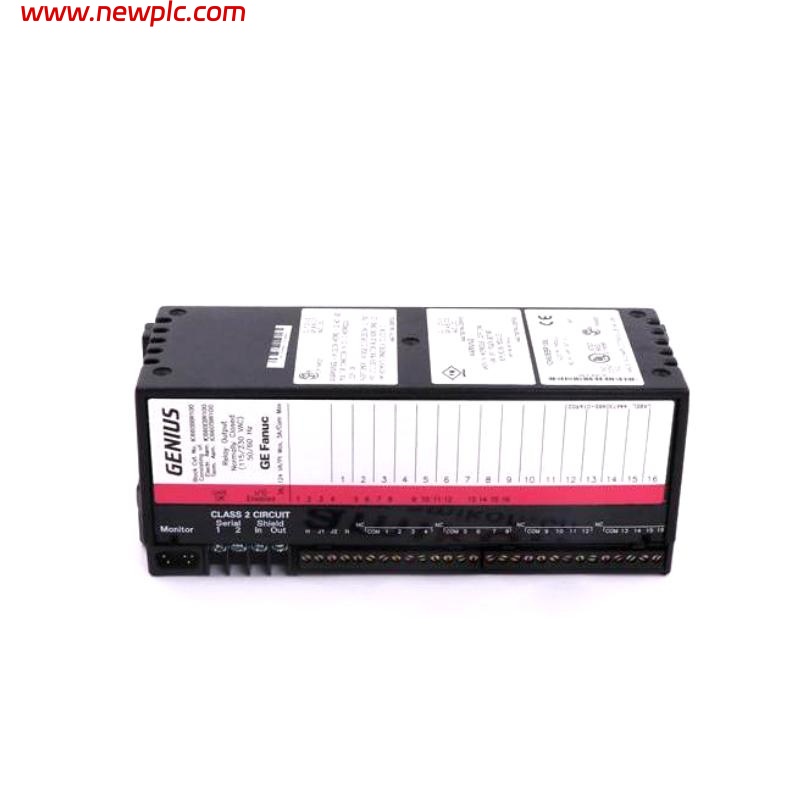

| Model | IC660BBR100 Genius Relay Output Block |
| Number of Outputs | 8 relay outputs |
| Output Voltage | 10–250 VAC / 5–125 VDC |
| Output Current (per point) | 2 A maximum |
| Isolation | 1500 V RMS (between circuits) |
| Power Supply Voltage | 115/230 VAC or 125 VDC |
| Power Consumption | Approx. 10 VA |
| Diagnostics | Built-in LED status indicators |
| Mounting | Panel or DIN rail |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 224.4 x 88.9 x 100 mm |
| Weight | 1.72 kg |
FAQ
FAQ
Q1: What is the main function of the IC660BBR100?
A1: It is an 8-point relay output block for switching AC or DC loads through Genius I/O networks.
Q2: How much current can each output handle?
A2: Each output can handle up to 2 A maximum.
Q3: What type of loads can the outputs control?
A3: The outputs can switch both resistive and inductive AC or DC loads.
Q4: Does the IC660BBR100 provide output isolation?
A4: Yes, it provides 1500 V RMS isolation between the outputs and control circuits.
Q5: How is the block powered?
A5: It operates on 115/230 VAC or 125 VDC power supply.
Q6: Can this block be mounted on a DIN rail?
A6: Yes, it supports both panel and DIN rail mounting.
Q7: Are there status indicators for each output?
A7: Yes, each output has a dedicated LED indicator for status and diagnostics.
Q8: What is the operating temperature range?
A8: The block operates reliably between 0°C and 60°C.
