Technical Specifications
| Parameter | Specification |
|---|---|

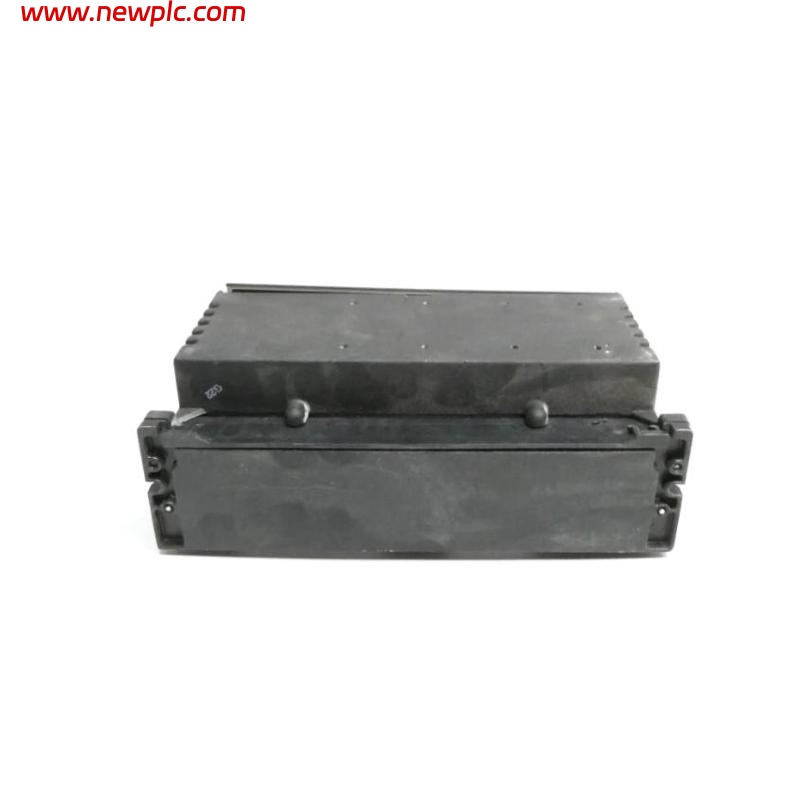

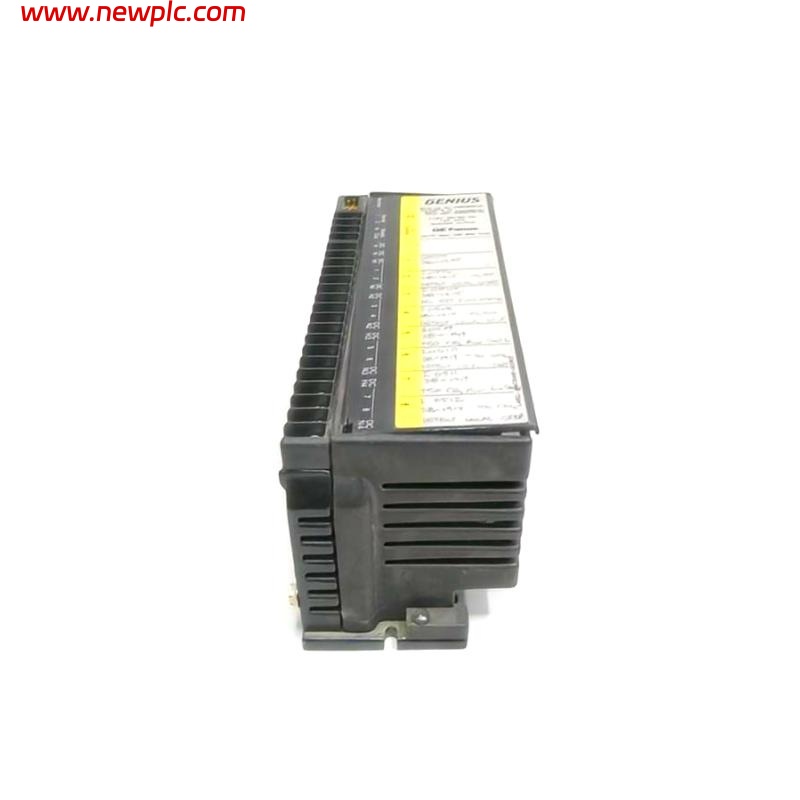

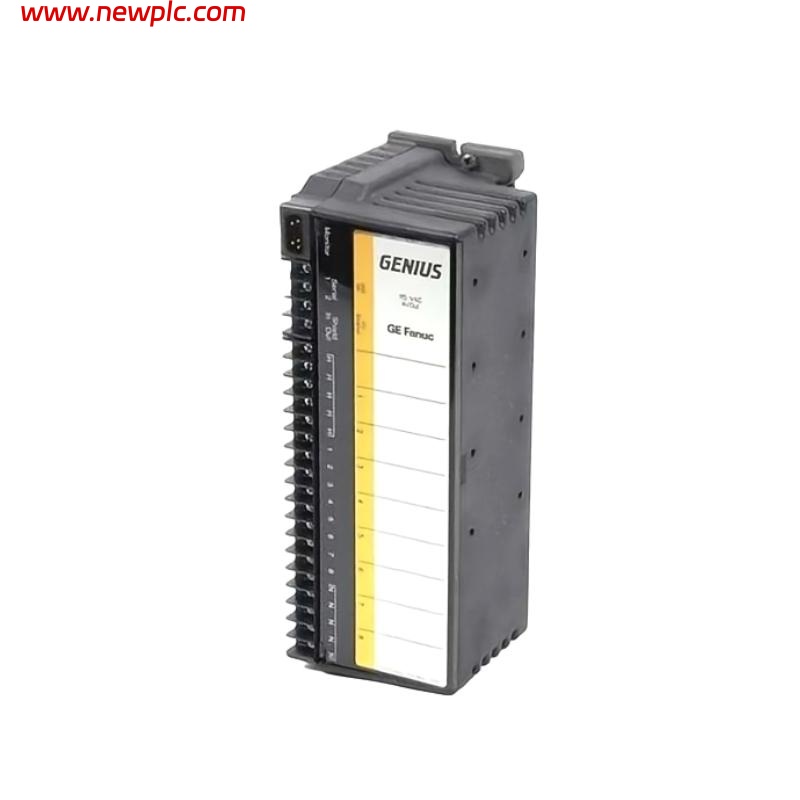

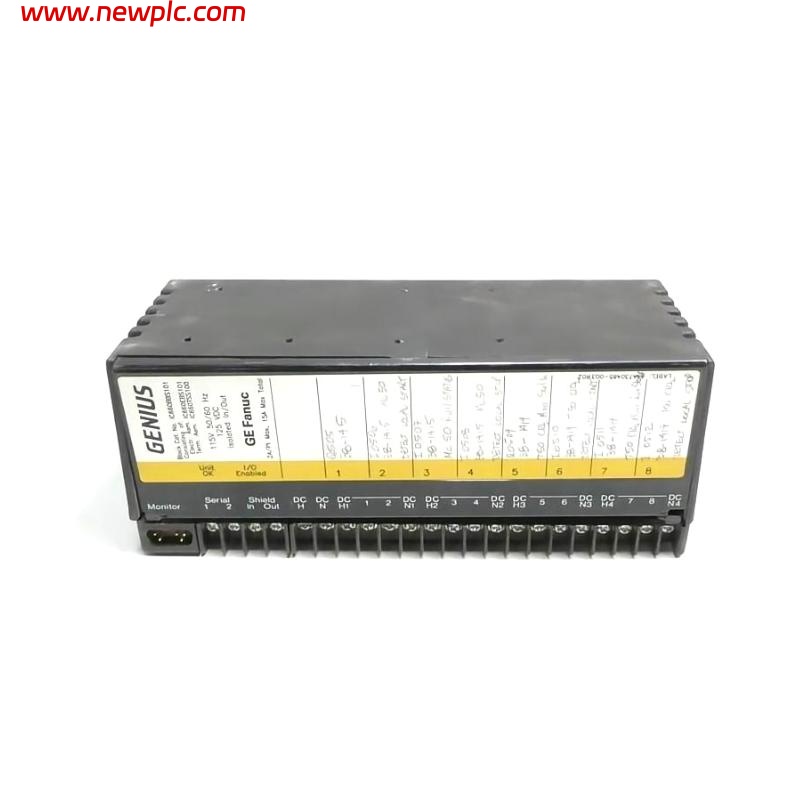

| Model | GE IC660BBS101 Genius Isolated I/O Block |
| Circuit Voltage | 115VAC / 125VDC |
| Number of Circuits | 8 (4 isolated groups of 2 circuits) |
| Isolation | 250V continuous; 2000V transient |
| Control Power Requirement | 8W max |
| Operating Voltage Range | AC: 93–132VAC; DC: 105–132VDC |
| Frequency (AC) | 47–63 Hz |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +100°C |
| Humidity | 5% to 95% non-condensing |
| Vibration Resistance | 5–10Hz 0.2” displacement, 10–200Hz 1G |
| Input Processing Time | AC: 2ms + filter; DC: 0.8ms + filter |
| Selectable Input Filter Times | 10–100ms in 10ms steps |
| Output Current (steady state) | AC: 2A RMS; DC: 2A resistive |
| Max Block Output Current | 15A @35°C; 7.5A @60°C |
| Maximum Switching Frequency | 1 operation per second |
| Heat Dissipation | Max 45.6W with 8 outputs |
| LED Indicators | Unit OK, I/O Enabled, circuit status |
| Dimensions (H × W × D) | 224.4 × 88.9 × 100 mm |
| Weight | 1.52 kg |
FAQ
FAQ
Q1: What voltage does the IC660BBS101 support?
A1: The module operates at 115VAC or 125VDC.
Q2: Are the input and output circuits isolated?
A2: Yes, it has 4 isolated groups of 2 circuits each, rated at 250V isolation.
Q3: Can the module detect open circuit or short circuit faults?
A3: Yes, it supports diagnostics for open wire, short circuit, overload, overtemperature, and no load.
Q4: What is the operating temperature range?
A4: The module operates from 0°C to +60°C and can be stored between -40°C and +100°C.
Q5: In which applications is IC660BBS101 suitable?
A5: It is designed for industrial automation systems requiring isolated I/O, especially where manual switches are wired in parallel and no Failed Switch diagnostic is needed.
Q6: What is the maximum output current?
A6: Up to 15A total at 35°C, and 7.5A at 60°C.
Q7: Does the module support redundancy?
A7: Yes, redundancy can be configured via a handheld monitor.
Q8: Are there any special installation requirements?
A8: Yes, it must be installed inside a protective enclosure, properly grounded, and with adequate cooling clearance.
