Technical Specifications
| Parameter | Specification |
|---|---|

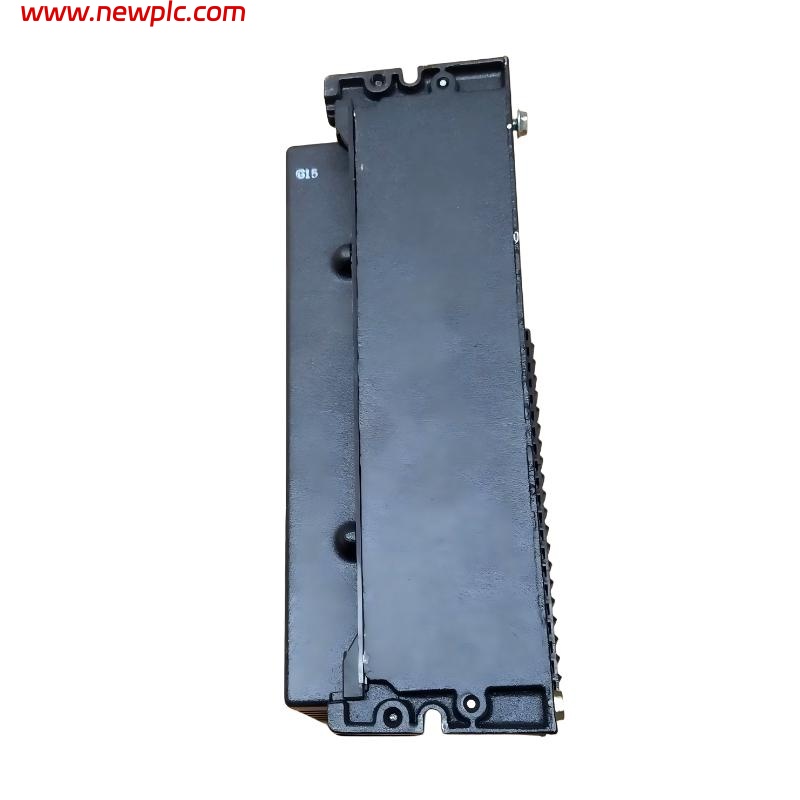

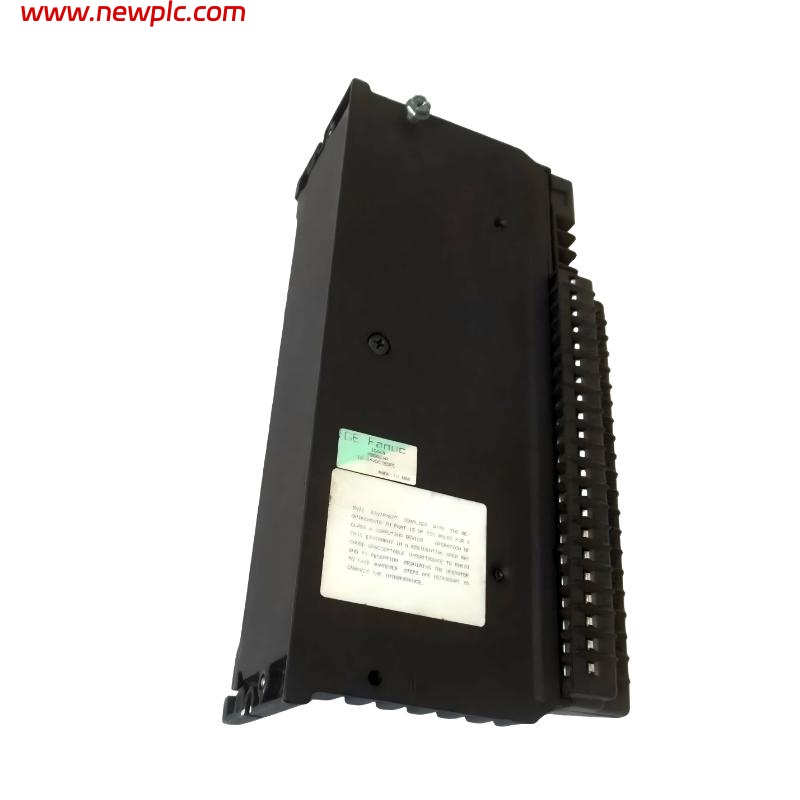

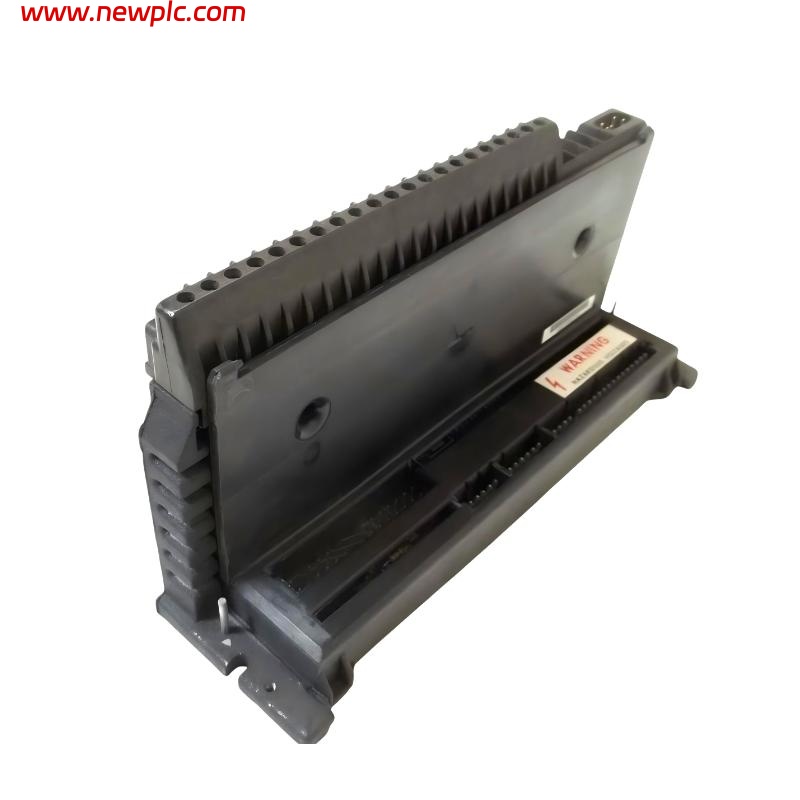

| Product Name | Terminal Assembly |
| Model Number | GE IC660TBD021 |
| Dimensions | 222.4 x 88.9 x 100 mm |
| Weight | 1.8 kg |
| Product Type | Terminal Assembly for PLC systems |
| Compatibility | GE Series 90-30 PLC modules |
| Terminal Type | Screw-type terminals for secure wiring connections |
| Number of Terminals | 32 points |
| Wire Size Supported | 12–24 AWG (solid or stranded) |
| Voltage Rating | 300 V AC/DC maximum |
| Current Rating | 10 A per terminal |
| Mounting Type | Panel or DIN rail mounted |
| Isolation | Each terminal isolated to prevent cross-talk |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Material | Flame-retardant plastic housing with metal contacts |
| Typical Applications | Industrial automation, PLC wiring, signal distribution |
FAQ
FAQ
Q1: What is the main function of the IC660TBD021 Terminal Assembly?
A1: The IC660TBD021 provides a secure interface for connecting PLC modules to field wiring, ensuring reliable signal distribution in industrial control systems.
Q2: How many connection points does this terminal assembly offer?
A2: It offers 32 screw-type terminals, allowing multiple input and output connections in a compact layout.
Q3: What types of wires are compatible with the IC660TBD021?
A3: The assembly supports both solid and stranded wires using screw-type terminals for stable and secure electrical connections.
Q4: Which wire gauges can be used with this terminal assembly?
A4: It accommodates wire sizes from 12 to 24 AWG, which covers standard industrial control wiring requirements.
Q5: Is the IC660TBD021 compatible with PLC systems outside the GE Series 90-30?
A5: It is specifically designed for the GE Series 90-30 PLC modules to ensure proper electrical and mechanical compatibility.
Q6: What are the electrical ratings for each terminal?
A6: Each terminal is rated for up to 300 V AC/DC and 10 A, suitable for most control and signal applications.
Q7: How can the terminal assembly be mounted?
A7: It can be mounted either on a control panel or on a DIN rail, offering flexible installation options in industrial environments.
Q8: In which applications is the IC660TBD021 typically used?
A8: It is widely used for PLC wiring, industrial automation, and signal distribution systems to provide secure and reliable electrical connections.
