Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |

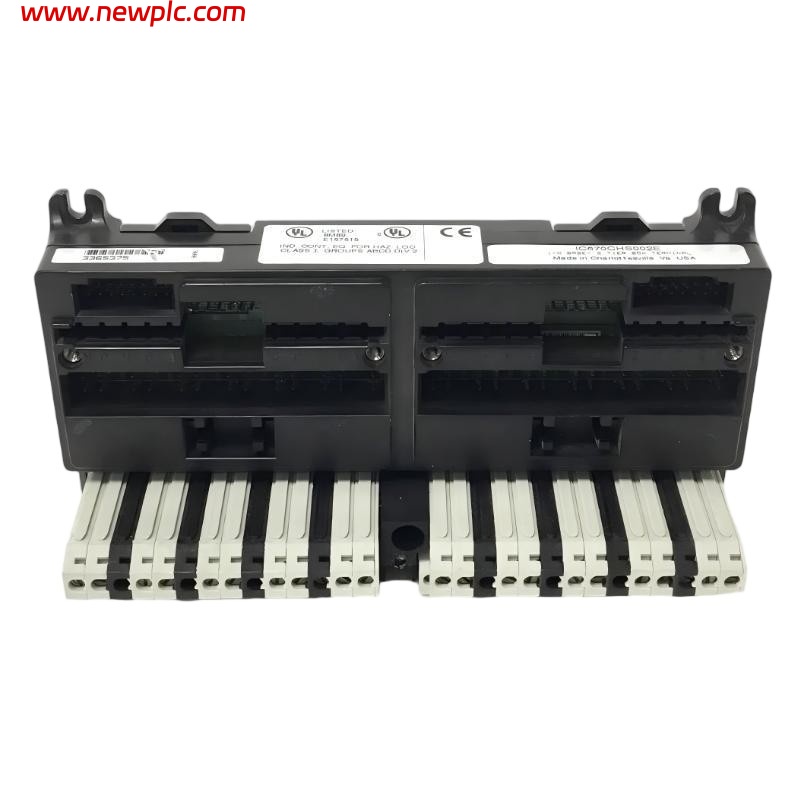

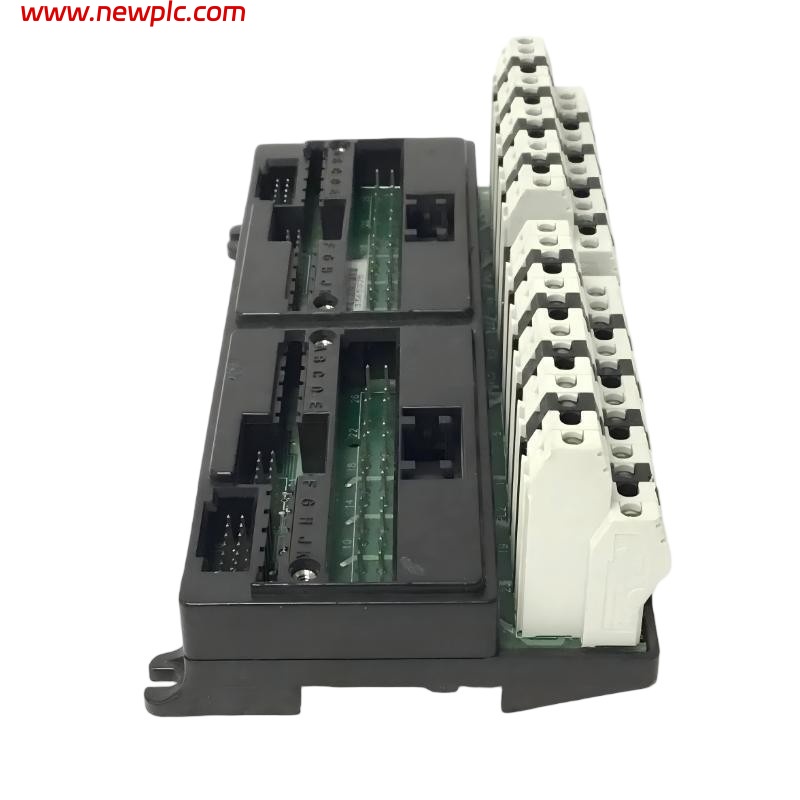

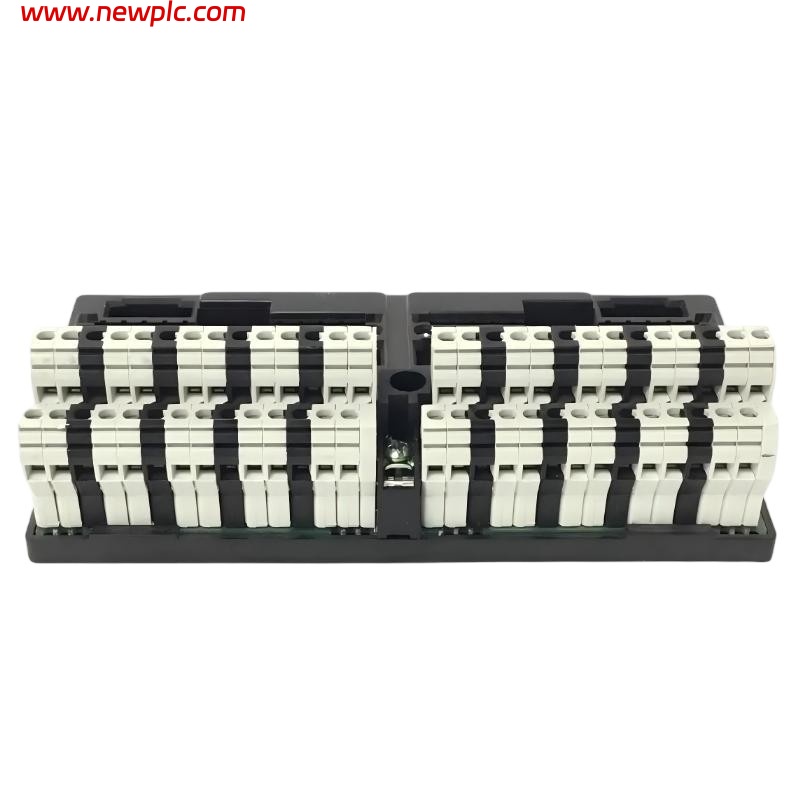

| Product Name | IC670CHS002 |
| Product Type | I/O Terminal Block |
| Product Line | Field Control (PLC I/O accessory) |
| Number of Terminals | 37 terminals for field wiring connections |
| Module Capacity | Supports installation of up to 2 I/O modules |
| Terminal Connection | One AWG #14 (2.1 mm²) or two AWG #18 (0.86 mm²) through AWG #22 (0.35 mm²) wires |
| Maximum Current per Terminal | 10 Amps |
| Terminal Torque | 4.5 lb-in (recommended) |
| Hot-Swap Support | Yes (module removal without disturbing field wiring) |
| Compatible Modules | Modules whose catalog suffix is J or above (GE I/O cards) |
| Mounting | DIN rail or panel mount options (system chassis provides support) |
| Rated Voltage | Up to ~300 V AC/DC (varies by wiring and module used) |
| Operating Temperature | Typically 0 °C to 60 °C (32 °F to 140 °F) (varies by source) |
| Storage Temperature | -40 °C to 85 °C (varies by component) |
| Cable Type | Copper wire only, rated for 90 °C |
| Dimensions (approx.) | 114 mm × 76 mm × 51 mm (4.5″ × 3.0″ × 2.0″) |
| Weight | ~0.23 kg (0.5 lbs) |
| Certification | UL / CE (industry standard, varies by region) |
FAQ
FAQ
Q1. What is the purpose of this terminal block?
It provides a removable wiring interface between field wiring and PLC I/O modules.
Q2. How many terminals are available for wiring?
There are 37 individual terminals for field connections.
Q3. Can I remove modules without disconnecting all the wires?
Yes, modules can be hot-swapped without disturbing field wiring.
Q4. What size wires can be connected to the terminals?
It accepts one #14 AWG or two #18 AWG wires through #22 AWG.
Q5. Is the terminal block suitable for high current applications?
Each terminal is rated for up to 10 Amps.
Q6. How is the block mounted within a control panel?
The terminal block is mounted using the DIN rail/panel support provided in the chassis.
Q7. What modules are compatible with this block?
It supports modules with catalog suffix “J” or higher from the compatible GE Field Control series.
Q8. What information do I need when replacing this part?
You should know the module type to ensure the terminal block alignment slots and connector type match.
