Technical Specifications
| Parameter | Specification |
|---|---|

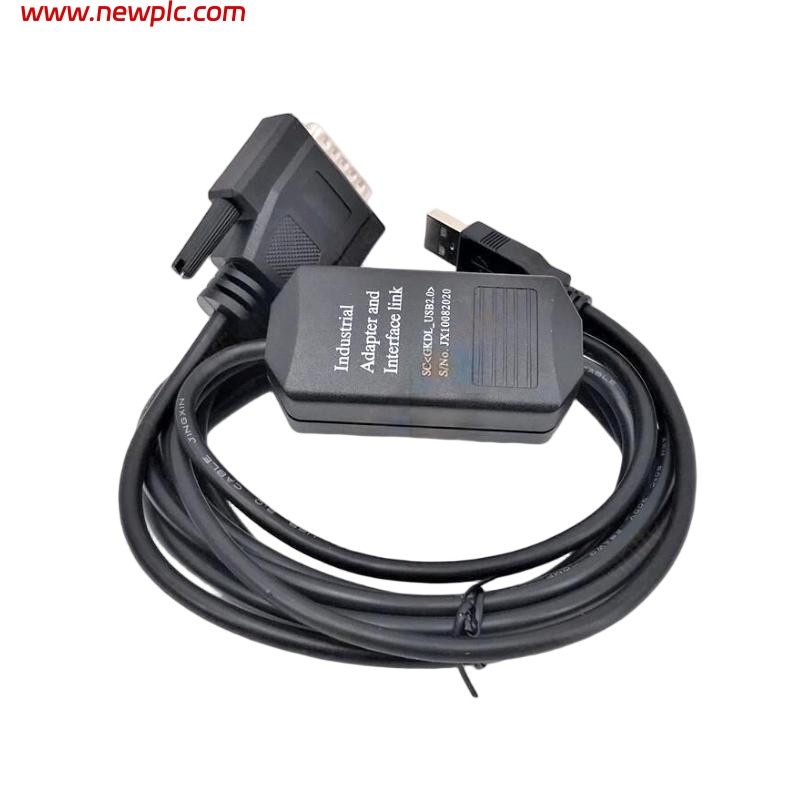

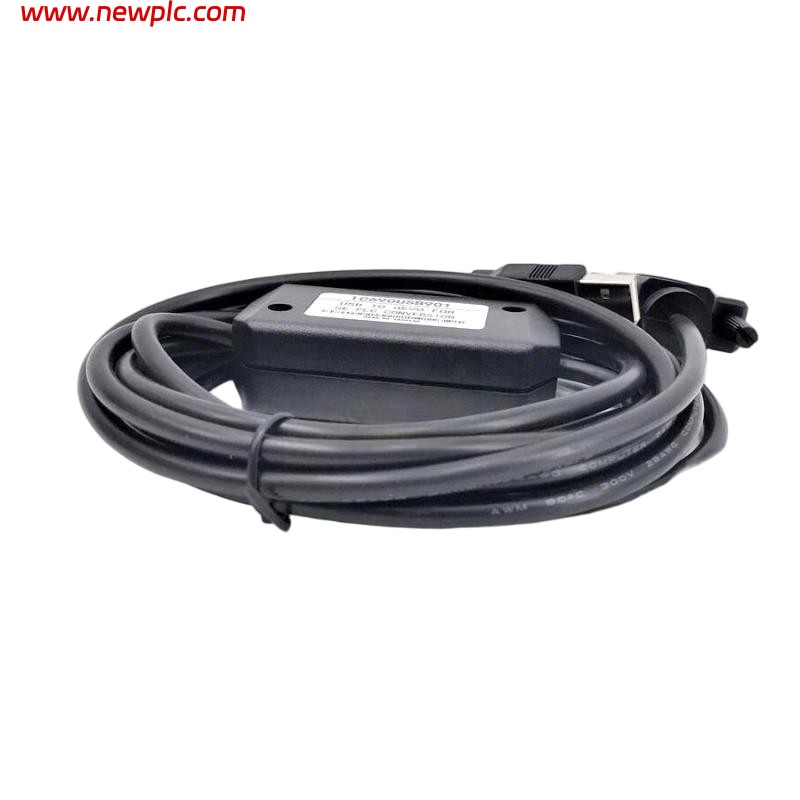

| Model | IC690USB901 |
| Product Type | USB‑to‑SNP programming/communication cable |
| Interface | USB Type‑A (PC) to 15‑pin SNP (PLC) |
| Connector Type | USB Type‑A male to DB15 SNP male |
| Cable Length | ~3 m / 3 meters (~9.8 ft) |
| Weight | ~222 g (approx. 0.49 lb) |
| Dimensions | Cable length ~3 m; connector ends typical sizes for USB & DB15 |
| Supported Protocols | GE SNP over 15‑pin D‑sub |
| Baud Rate | Auto‑adaptive 300 bps to 1 Mbps |
| UART Format | 7/8 data bits, 1/2 stop bits, odd/even/none parity |
| Communication Distance | Up to ~1.5 km at 19200 bps (requires proper twisted pair/RS422) |
| Power Supply | USB bus‑powered (~50 mA) |
| Supported OS | Windows 2000, XP, 7, 10, 11 (varies by driver) |
| Supported Software | GE Proficy Machine Edition, VersaPro (not LogicMaster 90) |
| USB Compliance | USB V1.1, USB CDC V1.1 |
| Operating Temperature | –20 °C to +75 °C |
| Indicators | TX/RX activity LEDs (on many units) |
| Maximum Usage Limit | Typically one such USB programming cable per PC |
FAQ
FAQ
Q1: What is the primary purpose of the IC690USB901 cable?
It connects a USB computer to GE Fanuc Series 90 PLCs for programming, monitoring, and diagnostics.
Q2: Which PLC models does the IC690USB901 support?
It supports GE Fanuc Series 90‑20, 90‑30, 90‑70, and 90‑Micro PLCs with a 15‑pin SNP port.
Q3: Does this cable require an external power source?
No, it draws power directly from the PC’s USB port (~50 mA).
Q4: Can the IC690USB901 be extended with a USB repeater?
No, USB should not be extended; long PLC distances are handled via RS422 wiring.
Q5: What software works with this cable for PLC programming?
GE Proficy Machine Edition and VersaPro; LogicMaster 90 is generally unsupported over USB.
Q6: Does it show activity when data is transmitted?
Yes, many units have TX/RX LEDs indicating communication activity.
Q7: What operating systems are compatible with IC690USB901?
Windows 2000, XP, 7, 10, and 11; older OSes like DOS/Win9x are not supported.
Q8: Can multiple cables be used simultaneously on one computer?
Usually only one cable per PC is supported at a time.
