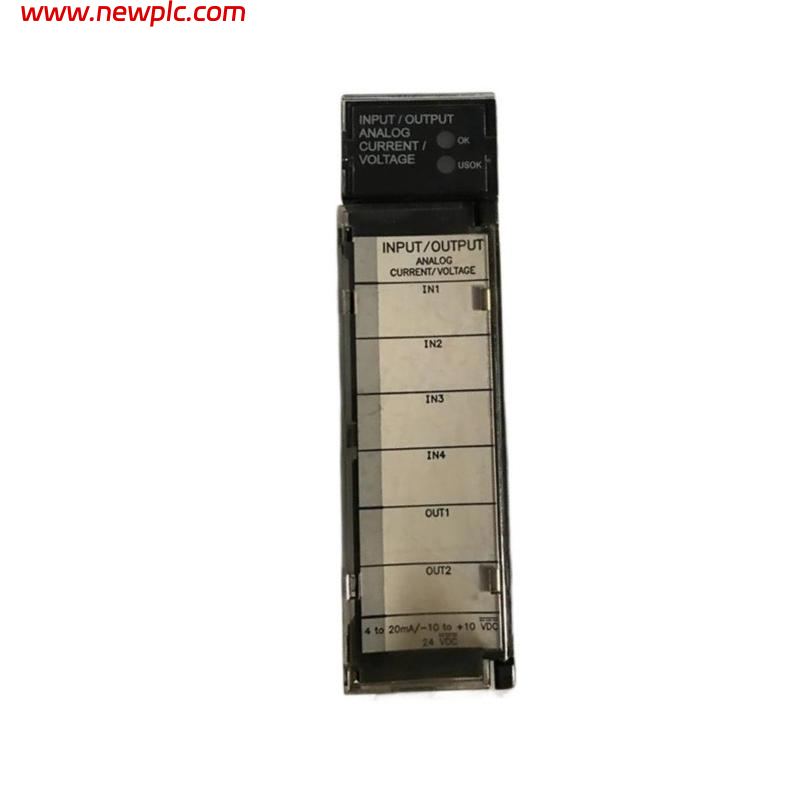

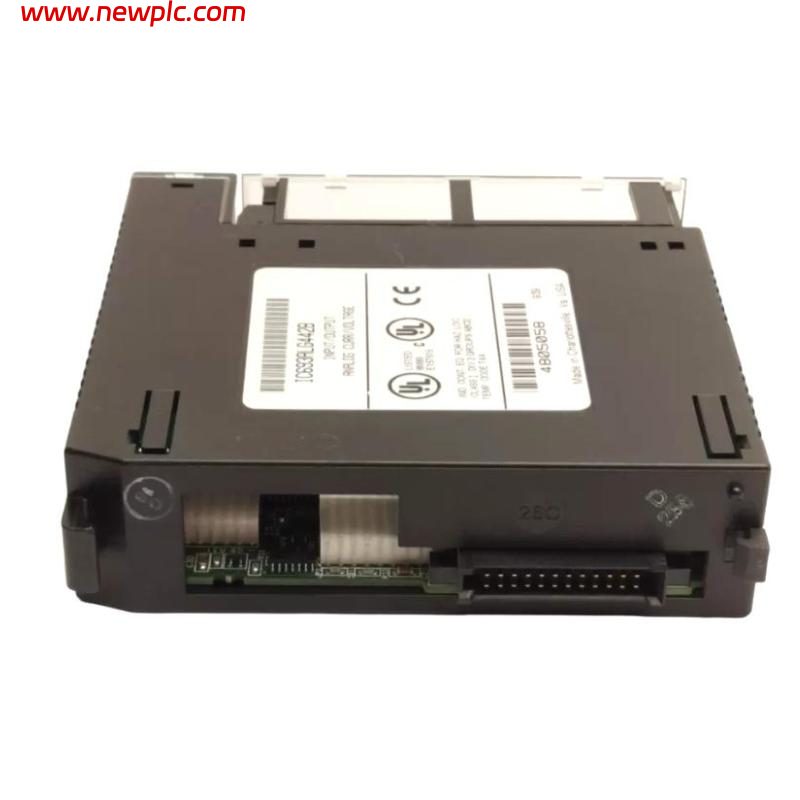

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |
| Product Model | IC693ALG442B |
| Product Type | Analog Combination I/O Module |
| Series | Series 90-30 PLC |
| Function | Provides combined analog input and output channels for process monitoring and control applications |
| Analog Input Channels | 4 differential inputs |
| Analog Output Channels | 2 single-ended outputs |
| Input Signal Types | 0–10 VDC, ±10 VDC, 0–20 mA, 4–20 mA, 4–20 mA Enhanced |
| Output Signal Types | 0–10 VDC, ±10 VDC, 0–20 mA, 4–20 mA |
| Input Resolution | 12-bit |
| Output Resolution | 12-bit |
| Input Update Rate | 8 ms (all 4 channels) |
| Output Update Rate | 4 ms |
| Input Accuracy | ±0.25% of full scale @ 25°C; ±0.5% over operating temperature range |
| Output Accuracy | ±0.25% of full scale @ 25°C; ±1.0% over operating temperature range |
| Input Impedance | 800 kΩ (voltage input); 250 Ω (current input) |
| Output Load Resistance | Voltage output: ≥2 kΩ; Current output: 0–850 Ω |
| Common Mode Voltage | 200 V maximum |
| Input Filter Response | 29 Hz low-pass filter |
| Cross-Channel Rejection | >80 dB |
| Isolation | 1500 VAC between field side and logic side |
| External Power Supply | 20–30 VDC (24 VDC nominal) |
| Backplane Current Consumption | 95 mA @ 5 VDC |
| External 24 VDC Consumption | 129 mA typical |
| Configuration | Software configurable through PLC programming software |
| Diagnostics | Open-wire detection, high/low alarm monitoring, output fault reporting |
| Compatible Systems | GE Fanuc Series 90-30 PLC |
| Mounting | Standard Series 90-30 I/O slot |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (Non-condensing) |
| Dimensions (H × W × D) | Approx. 130 × 40 × 130 mm (5.12 × 1.57 × 5.12 in.) |
| Weight | Approx. 0.43 kg (0.94 lb) |
| Hardware Revision | B |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693ALG442B used for?
The IC693ALG442B is an analog combination module for the Series 90-30 PLC. It combines analog input and output functions in one module, allowing the PLC to monitor process signals and control analog devices such as valves, drives, and transmitters.
Q2: How many analog channels does the IC693ALG442B provide?
The module provides four differential analog input channels and two single-ended analog output channels, allowing multiple process signals to be handled within one PLC slot.
Q3: What input signals are supported by the IC693ALG442B?
The input channels support 0–10 VDC, ±10 VDC, 0–20 mA, 4–20 mA, and 4–20 mA Enhanced signal types. These ranges make the module suitable for common industrial transmitters and sensors.
Q4: What output signals can the IC693ALG442B generate?
The two analog outputs support 0–10 VDC, ±10 VDC, 0–20 mA, and 4–20 mA signals, allowing direct control of proportional devices, actuators, and variable-speed equipment.
Q5: Does the IC693ALG442B require an external power supply?
Yes. The module requires an external 20–30 VDC supply (24 VDC nominal) in addition to power received from the Series 90-30 backplane.
Q6: What accuracy can the IC693ALG442B achieve?
The module provides approximately ±0.25% full-scale accuracy at 25°C. Accuracy remains within approximately ±0.5% to ±1.0% full scale depending on input/output mode and operating temperature conditions.
Q7: Does the IC693ALG442B support fault detection?
Yes. The module supports features such as open-wire detection for current modes, configurable alarm limits, and output status monitoring to assist with troubleshooting and process control reliability.
Q8: What should be checked before replacing an IC693ALG442B module?
Before replacement, verify the Series 90-30 baseplate compatibility, external 24 VDC wiring, channel configuration, signal ranges, PLC hardware configuration, and scaling parameters to ensure correct operation after installation.
