Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

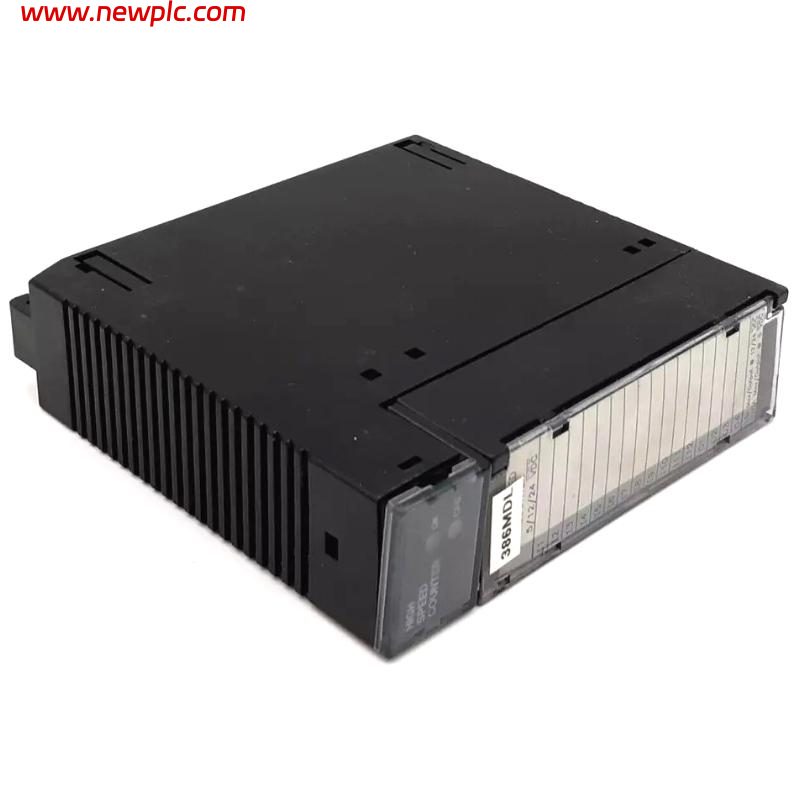

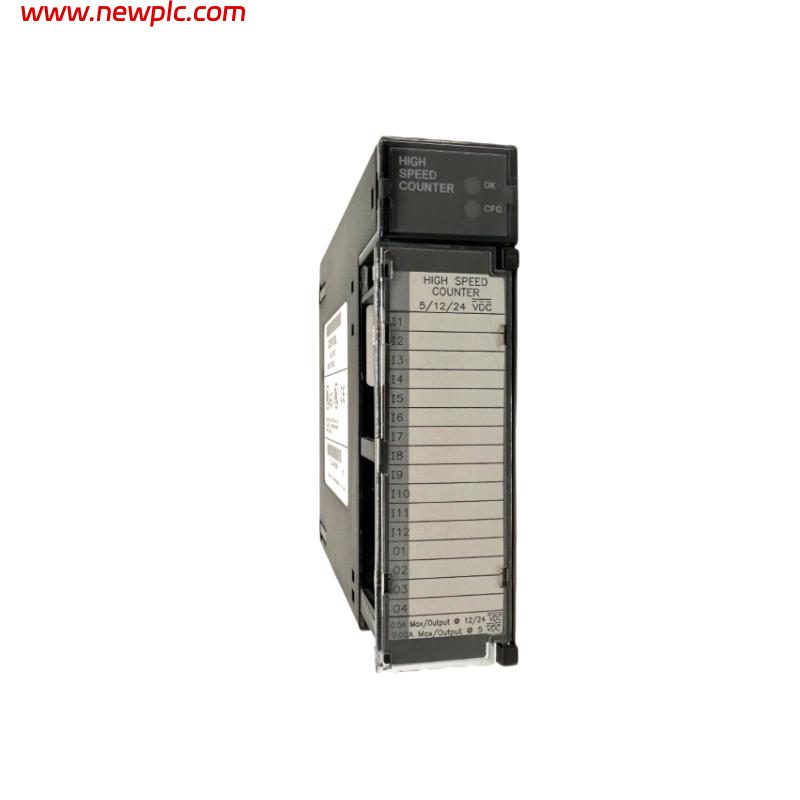

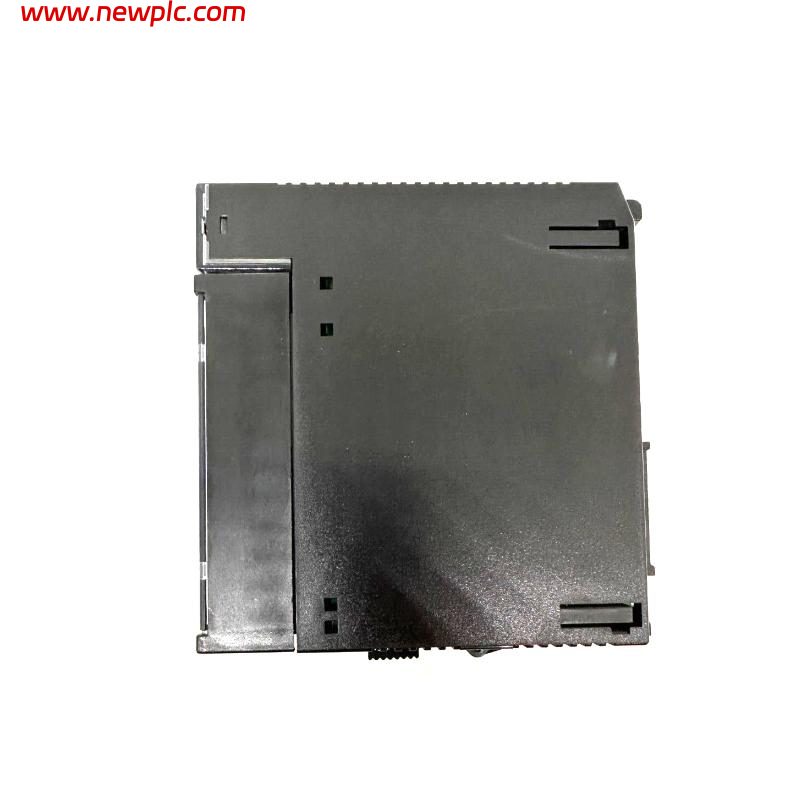

| Product Model | IC693APU300L |
| Product Type | High-Speed Counter Module |
| Series | Series 90-30 PLC |
| Function | Processes high-frequency pulse signals independently from PLC scan time |
| Module Type | Single-slot intelligent specialty module |
| Input Channels | 12 positive logic high-speed inputs |
| Output Channels | 4 positive logic outputs |
| Input Voltage Range | 5 VDC or 10–30 VDC |
| Input Type | Positive logic pulse inputs |
| Maximum Count Rate | Up to 80 kHz (standard high-speed counting) |
| Low Frequency Mode | 20 Hz |
| Counter Modes | Up counting, down counting, up/down counting, differential counting |
| Encoder Support | Supports A Quad B quadrature encoder inputs |
| Number of Counters | Configurable as 1, 2, or 4 counters depending on mode |
| Counter Resolution | 32-bit accumulator |
| Input Filter | Selectable high-frequency and low-frequency filters |
| High Frequency Filter | Approx. 2.5 μs |
| Low Frequency Filter | Approx. 12.5 ms |
| Strobe Register | Supported for capturing current counter value |
| Preset Function | Programmable ON/OFF output presets |
| Output Type | Positive logic transistor outputs |
| Output Voltage | 10–30 VDC |
| Output Current | 500 mA maximum per output |
| Low Voltage Output Rating | 4.75–6 VDC @ 20 mA maximum |
| Output Protection | 3 A fuse protection |
| Backplane Current Consumption | 250 mA @ 5 VDC |
| Isolation Rating | 250 VAC |
| LED Indicators | BOARD OK, CONFIG OK, input/output status indicators |
| Terminal Connection | 20-position removable terminal block |
| Compatible PLC Platform | GE Fanuc Series 90-30 |
| Installation Position | Any available Series 90-30 I/O slot |
| Configuration Software | Logicmaster 90-30, VersaPro, Proficy Machine Edition |
| Applications | Motion control, flow measurement, encoder feedback, material handling, velocity measurement |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Dimensions (H × W × D) | Approx. 130 × 38 × 130 mm (5.12 × 1.50 × 5.12 in.) |
| Weight | Approx. 0.50 kg (1.10 lb) |
| Hardware Revision | L |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693APU300L used for?
The IC693APU300L is used for high-speed pulse counting applications in Series 90-30 PLC systems, including encoder feedback, flow measurement, and motion control.
Q2: How many input and output channels does the IC693APU300L provide?
The module provides 12 high-speed positive logic inputs and 4 positive logic outputs for fast control applications.
Q3: What is the maximum counting speed of the IC693APU300L?
The module can process high-speed input signals up to approximately 80 kHz depending on the configured operating mode.
Q4: Can the IC693APU300L connect to encoders?
Yes. The module supports A Quad B quadrature encoder inputs for position and speed feedback applications.
Q5: What counter modes are supported by the IC693APU300L?
The module supports independent up/down counting, bidirectional counting, and differential counting modes.
Q6: What type of outputs does the IC693APU300L provide?
The module provides four positive logic transistor outputs rated up to 500 mA at 10–30 VDC, with output protection through a 3 A fuse.
Q7: Which PLC systems are compatible with the IC693APU300L?
The IC693APU300L is designed for GE Fanuc Series 90-30 PLC systems and installs in a standard Series 90-30 rack slot.
Q8: What should be checked before replacing an IC693APU300L module?
Before replacement, verify the Series 90-30 rack compatibility, encoder or pulse input wiring, counter configuration, output wiring, PLC program backup, and module revision to ensure proper operation.
