Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | IC693BEM331 |

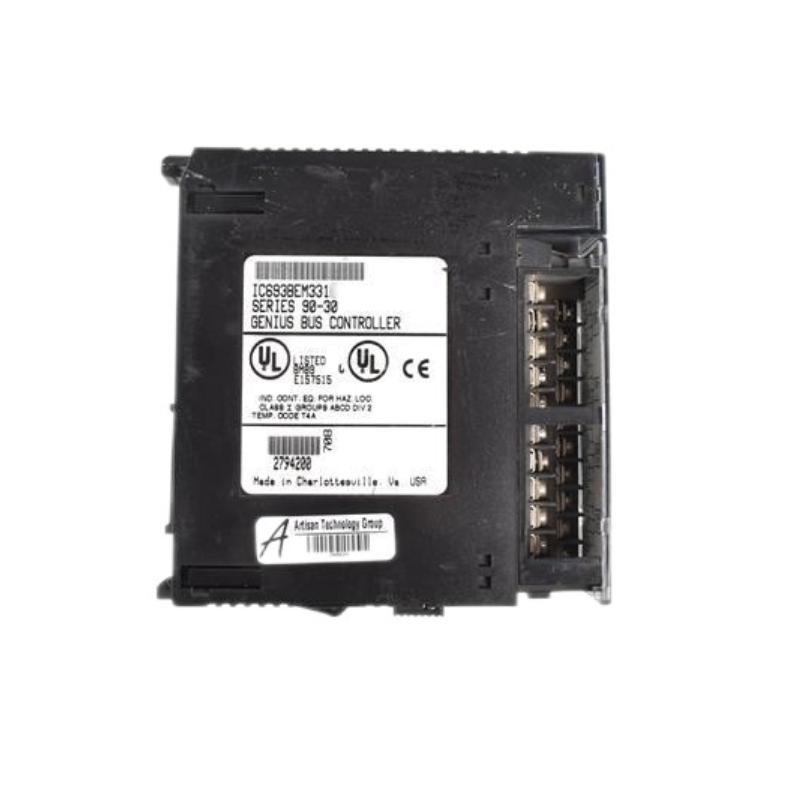

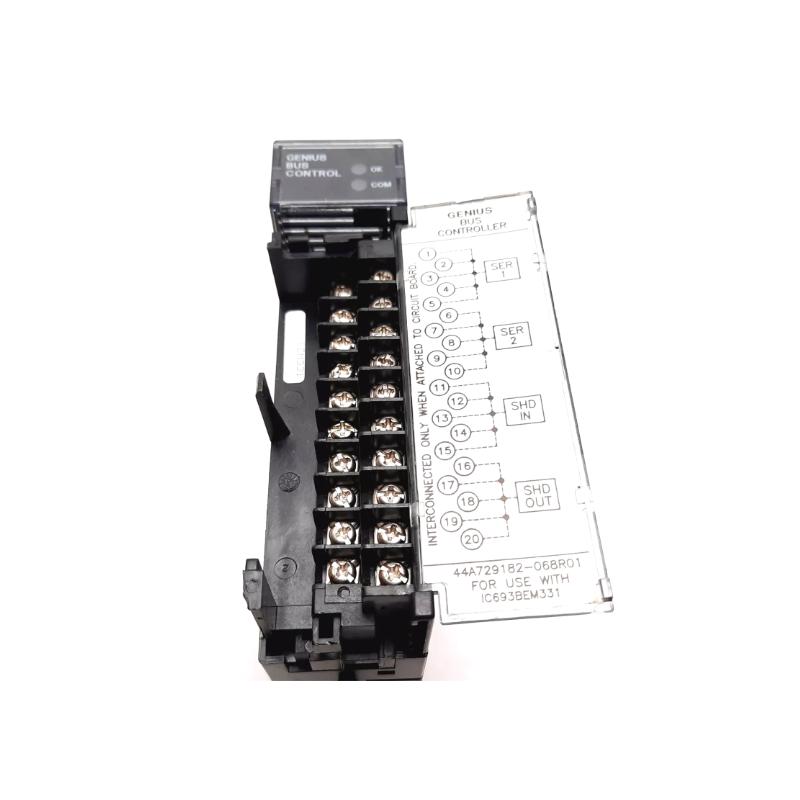

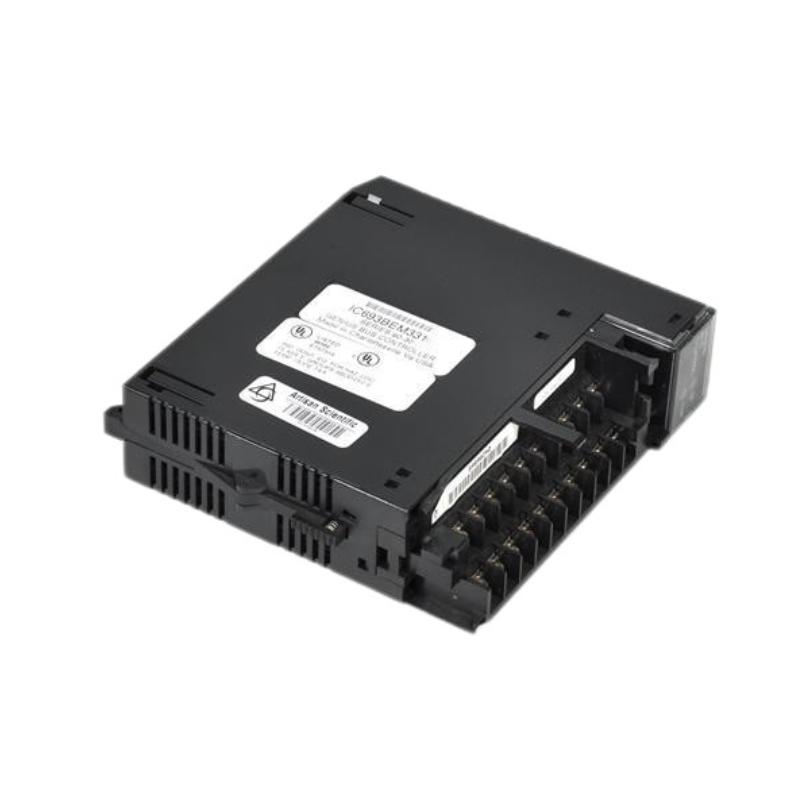

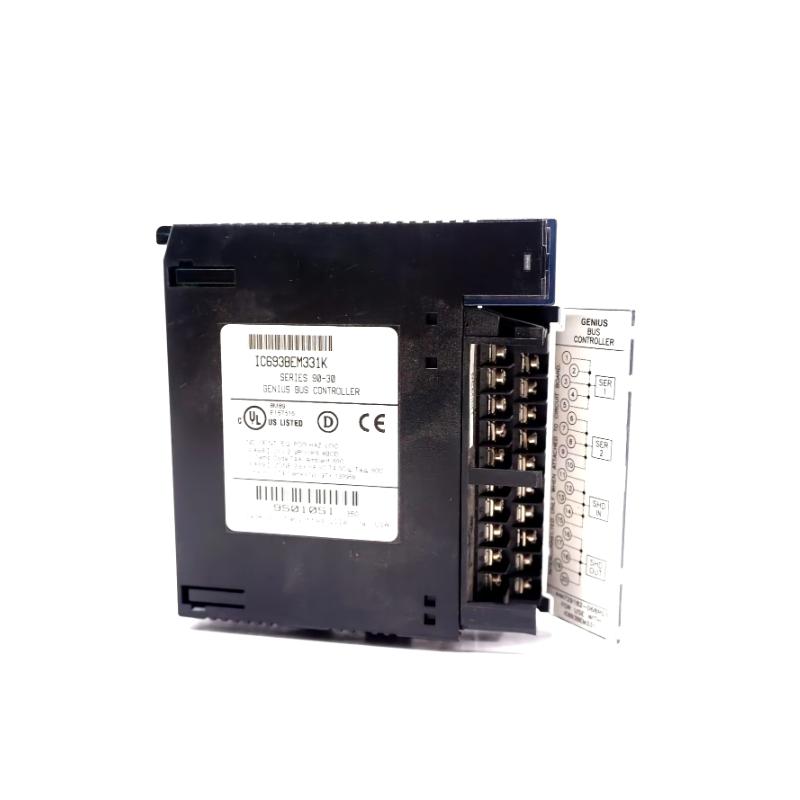

| Module Type | Series 90-30 PLC Genius Bus Controller Module |
| Function | Provides Genius I/O communications, Global Data, and Datagram exchange |
| Max Devices Supported | 31 devices |
| Global Data Capacity (Tx/Rx) | Up to 128 bytes transmitted and 128 bytes received per device |
| Input Data Capacity | Up to 128 bytes per device |
| Output Data Capacity | Up to 128 bytes per device |
| Power Consumption | < 300 mA at +5V DC |
| Bus Baud Rates | 38.4K, 76.8K, 153.6K (standard and extended) |
| Max Bus Length | 7500 feet @ 38.4Kbps, 2000 feet @ 153.6Kbps |
| Max Controllers per PLC | Up to 8 GBC modules per PLC (firmware v5.0 or later) |
| Diagnostic Capabilities | Status bits, fault reporting to PLC, LED status indicators |
| Isolation | 2000V Hi-Pot, 1500V transient rejection |
| Status LEDs | “OK” and “COMM OK” |
| Configuration Tools | Logicmaster 90 or Hand-held Programmer |
| Supported Memory Areas | %I, %Q, %G, %AI, %AQ, %R, %M (HHM only) |
| Dimensions (W × H × D) | 100 × 127 × 60 mm |
| Weight | 0.386 kg |
FAQ
FAQ
Q1: What is the primary function of the IC693BEM331 module?
A1: It serves as a Genius Bus Controller (GBC) to enable communication between a Series 90-30 PLC and devices on a Genius I/O bus.
Q2: How many devices can be connected to the Genius Bus using this module?
A2: Up to 31 devices can be connected on a single Genius Bus.
Q3: What types of data can the GBC handle?
A3: The GBC handles Global Data, input/output data, and various Genius datagrams.
Q4: What diagnostic features are included?
A4: The module offers LED indicators, 32-bit device status mapping, and detailed fault reporting accessible through Logicmaster 90.
Q5: Can multiple IC693BEM331 modules be used in a single PLC system?
A5: Yes, up to 8 modules can be used in a single PLC system if the firmware and software versions are 5.0 or higher.
Q6: What happens if communication with a Genius device fails?
A6: The GBC can be configured to either hold the last known state or set the data to OFF (zero) if communication is lost.
Q7: What is the role of the “COMM OK” LED?
A7: It indicates the operational status of the bus—solid ON for normal operation, blinking for intermittent errors, and OFF for bus failure.
Q8: How is the module configured?
A8: Configuration is done using Logicmaster 90 software or the IC693PRG300 Hand-held Programmer.
