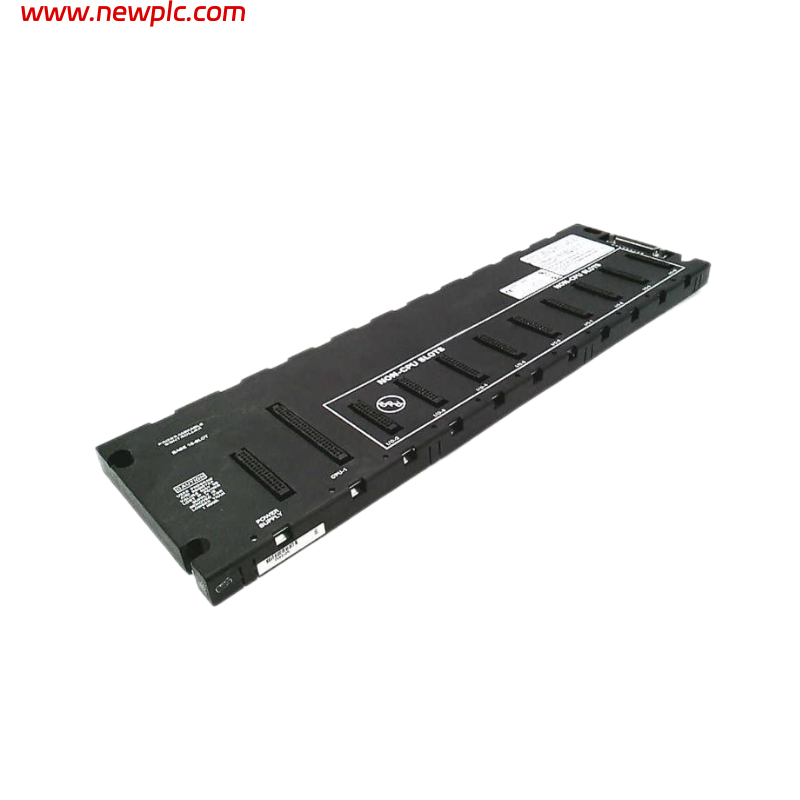

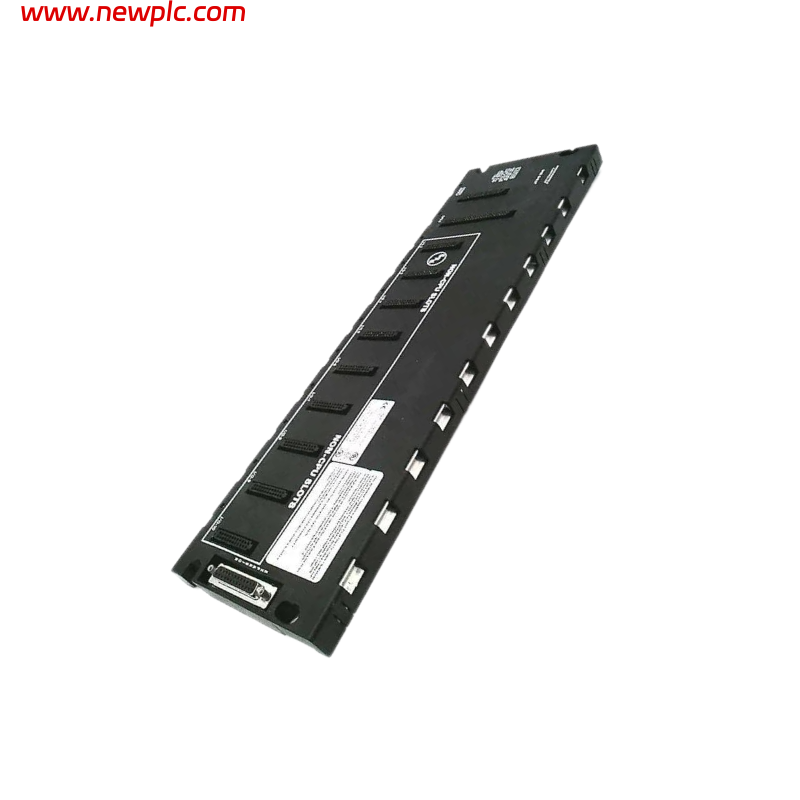

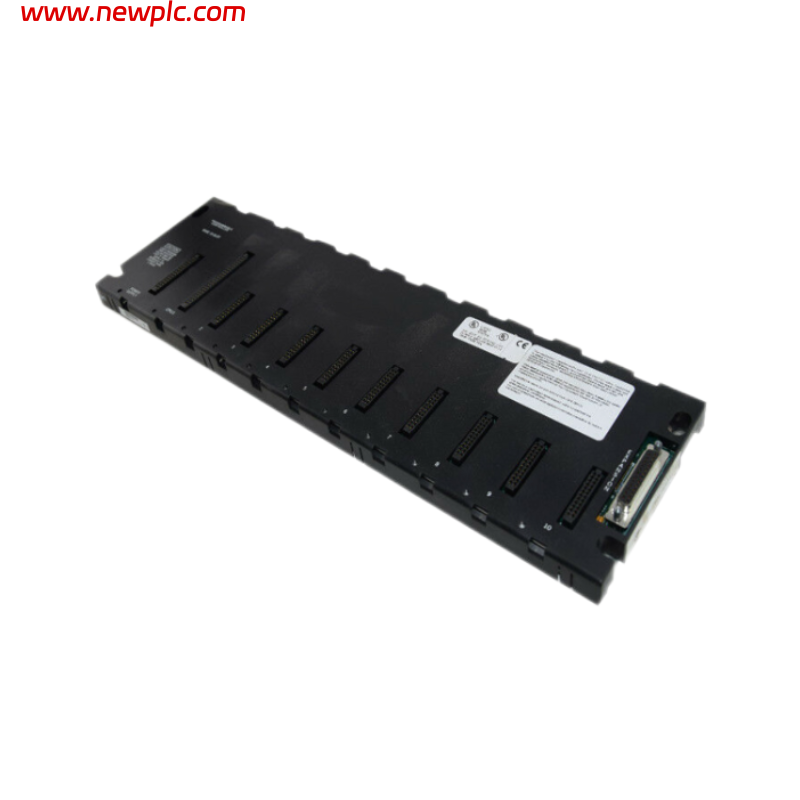

GE IC693CHS391M CPU Baseplate (Main Rack)

FAQ

Q1: What is the GE Fanuc IC693CHS391M used for?
The IC693CHS391M serves as the main CPU baseplate for a Series 90-30 PLC. It houses the power supply, CPU, and various I/O or communication modules while providing the backplane for power distribution and data communication.

Q2: How many slots are available on the IC693CHS391M?
The baseplate provides 10 slots in total. The leftmost slot is dedicated to the power supply, Slot 1 is reserved for the CPU, and the remaining slots support I/O and option modules.

Q3: What is the difference between the IC693CHS391M and earlier revisions?
The M revision features an enhanced EMI design, offering improved resistance to electromagnetic interference while maintaining compatibility with existing Series 90-30 modules and system architecture.

Q4: Can the IC693CHS391M be expanded with additional racks?
Yes. The baseplate includes a 25-pin expansion connector that allows connection to compatible expansion or remote baseplates. Depending on the installed CPU, a system can support up to seven baseplates.

Q5: Does the IC693CHS391M include a power supply or CPU?
No. The IC693CHS391M is the baseplate only. The power supply, CPU, and I/O modules are ordered and installed separately.

Q6: Which modules are compatible with the IC693CHS391M?
The baseplate supports a wide range of Series 90-30 modules, including digital I/O, analog I/O, communication interfaces, motion control modules, and specialty modules designed for the platform.

Q7: Is the IC693CHS391M suitable for industrial environments with electrical noise?
Yes. The enhanced EMI construction of the M revision helps improve reliability in applications where electrical noise or electromagnetic interference may affect control system performance.

Q8: What should be checked before replacing an IC693CHS391M baseplate?
Before replacement, verify the compatibility of the CPU, power supply, installed I/O modules, expansion cables, rack configuration, and wiring. It is also recommended to document module slot assignments before transferring hardware to the new baseplate to ensure proper system operation.
