Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (now Emerson Automation) |

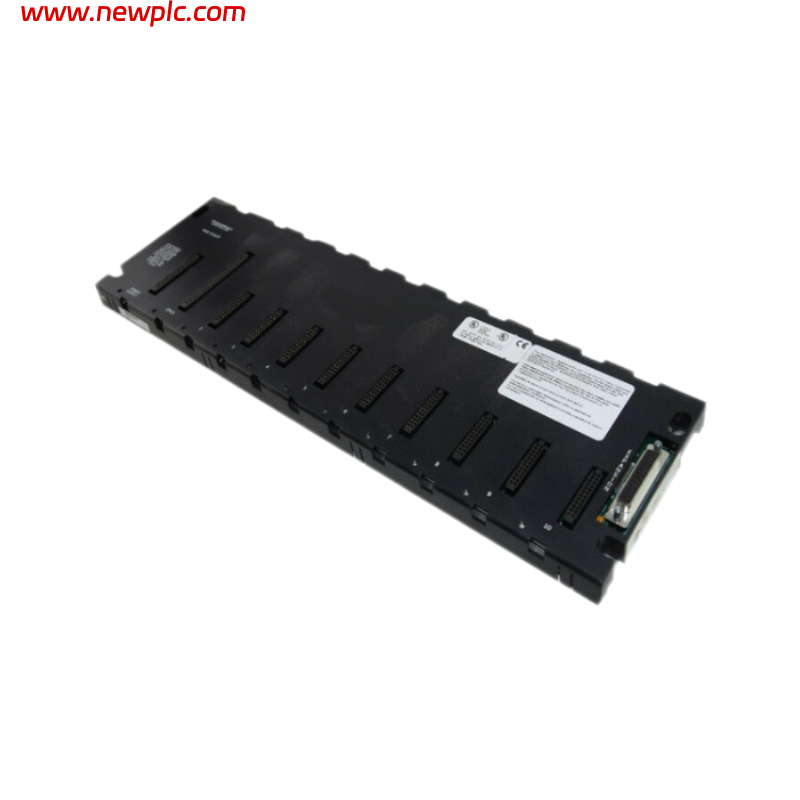

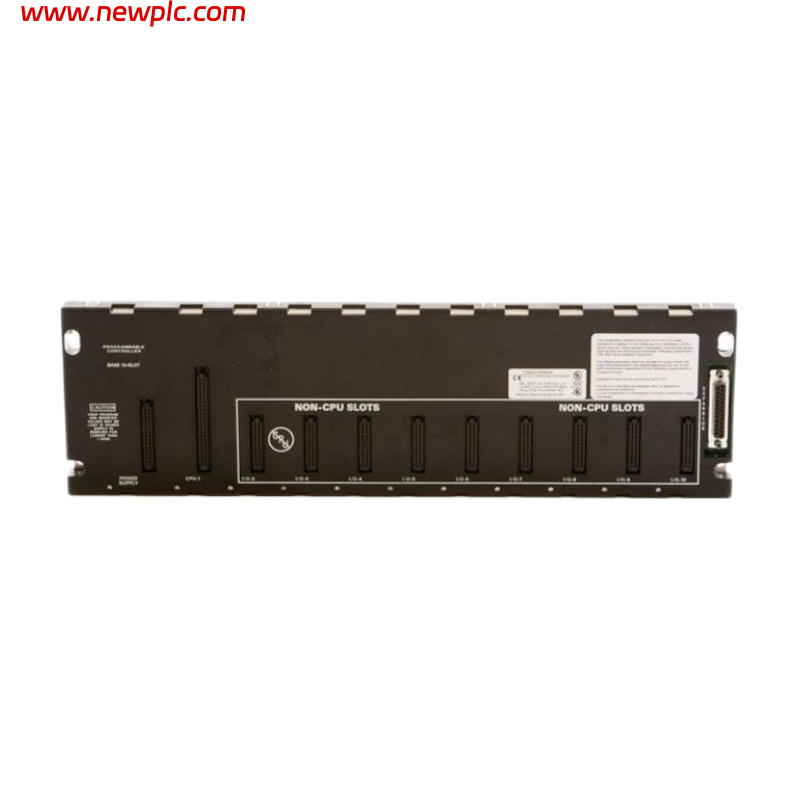

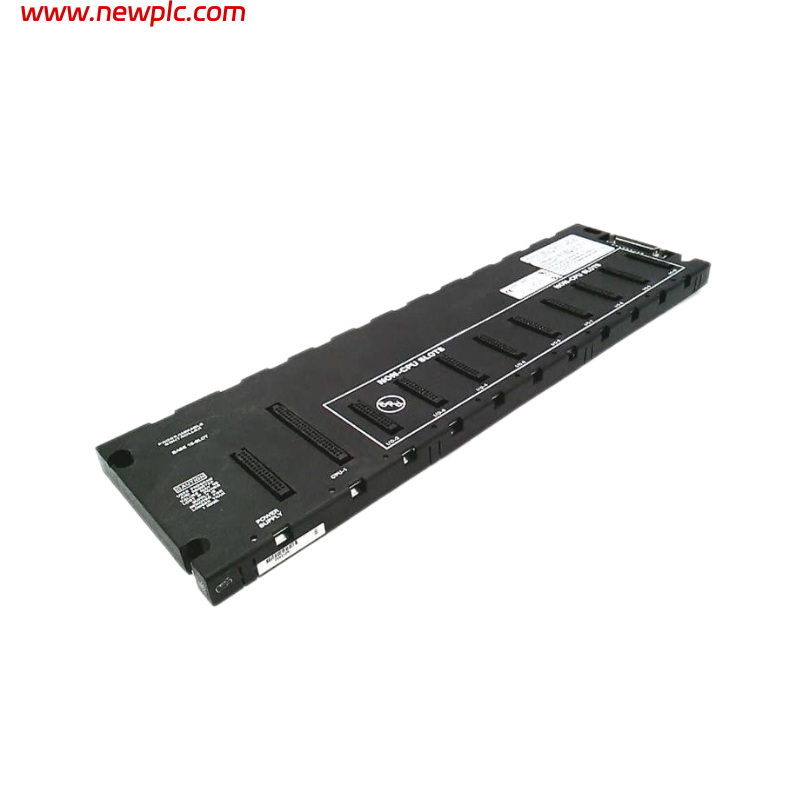

| Product Model | IC693CHS391N |
| Product Type | CPU Baseplate (Main Base) |
| Series | Series 90-30 PLC |
| Function | Provides mechanical mounting, backplane communication, and power distribution for CPU, power supply, and I/O modules |
| Baseplate Type | Main CPU Baseplate |
| Total Slots | 10 Slots |
| Power Supply Slot | 1 dedicated slot (leftmost) |
| CPU Slot | 1 dedicated CPU slot |
| I/O / Option Slots | 9 slots for I/O and option modules |
| Expansion Interface | 25-pin female D-sub connector |
| Backplane Power Consumption | 420 mA @ 5 VDC |
| Maximum Expansion Baseplates | Up to 7 (CPU dependent) |
| Expansion Cable Distance | Up to 15 m (50 ft) for expansion baseplates |
| Remote Baseplate Distance | Up to 213 m (700 ft) with appropriate remote I/O configuration |
| Mounting Method | Panel Mount |
| Backplane Function | High-speed data bus and power distribution |
| Compatible CPUs | GE Fanuc Series 90-30 CPUs (CPU311–CPU374 series) |
| Compatible Modules | Series 90-30 I/O, Communication, Motion, and Specialty Modules |
| Connector Type | 25-pin Female Expansion Connector |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5–95% RH (Non-condensing) |
| Dimensions (W × H × D) | 443 × 130 × 142 mm (17.44 × 5.12 × 5.59 in.) |
| Weight | Approximately 0.92 kg (2.03 lb) |
| Product Status | Legacy Product |
| Warranty | 12 Months |
FAQ
FAQ
Q1: What is the GE Fanuc IC693CHS391N used for?
The IC693CHS391N is the main CPU baseplate for the GE Fanuc Series 90-30 PLC. It provides the mounting platform, backplane communication, and power distribution required for the power supply, CPU, and I/O modules to operate as a complete PLC system.
Q2: How many modules can the IC693CHS391N accommodate?
The baseplate provides 10 slots, including one dedicated power supply slot, one CPU slot, and nine slots for I/O or specialty modules, offering flexible system configuration.
Q3: Can the IC693CHS391N be expanded?
Yes. The baseplate includes a 25-pin expansion connector that allows additional expansion or remote baseplates to be connected. Depending on the installed CPU model, a system can support up to seven baseplates.
Q4: Which PLC systems are compatible with the IC693CHS391N?
The IC693CHS391N is designed specifically for the GE Fanuc Series 90-30 PLC family and supports compatible CPUs, power supplies, digital I/O, analog I/O, communication modules, and specialty modules.
Q5: Does the IC693CHS391N include a power supply or CPU?
No. The IC693CHS391N is supplied as the baseplate only. The power supply, CPU, and all I/O modules must be ordered and installed separately.
Q6: What is the purpose of the 25-pin connector on the baseplate?
The 25-pin female D-sub connector is used to connect expansion or remote baseplates, enabling larger PLC systems with additional I/O capacity while maintaining reliable backplane communication.
Q7: What does the “N” revision indicate?
The “N” suffix identifies a later hardware revision of the IC693CHS391 baseplate. It maintains full compatibility with Series 90-30 modules while incorporating manufacturing and reliability improvements introduced during the product lifecycle.
Q8: What should be checked before replacing an IC693CHS391N?
Before replacement, verify the CPU type, power supply model, baseplate configuration, expansion cable connections, slot assignments, and installed I/O modules. Ensuring compatibility with the existing Series 90-30 system helps minimize downtime and ensures reliable operation.
