Technical Specifications
| Parameter | Description |
|---|---|

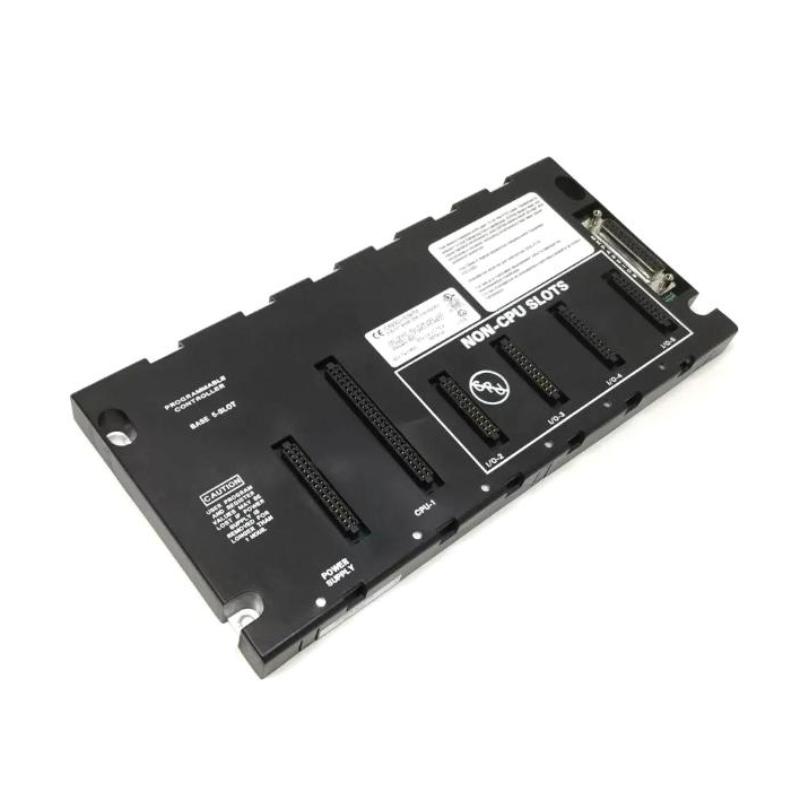

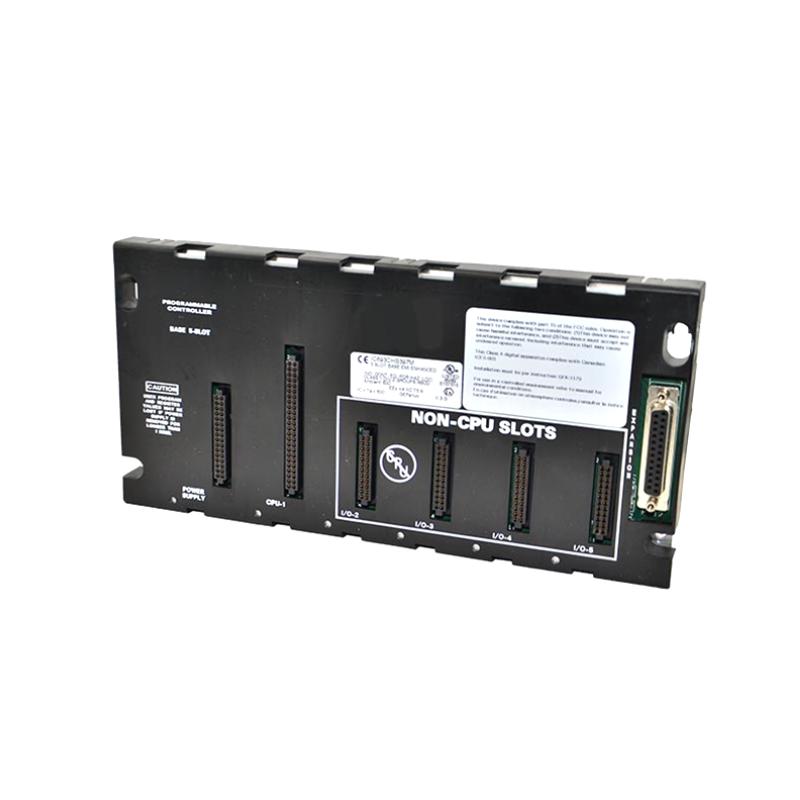

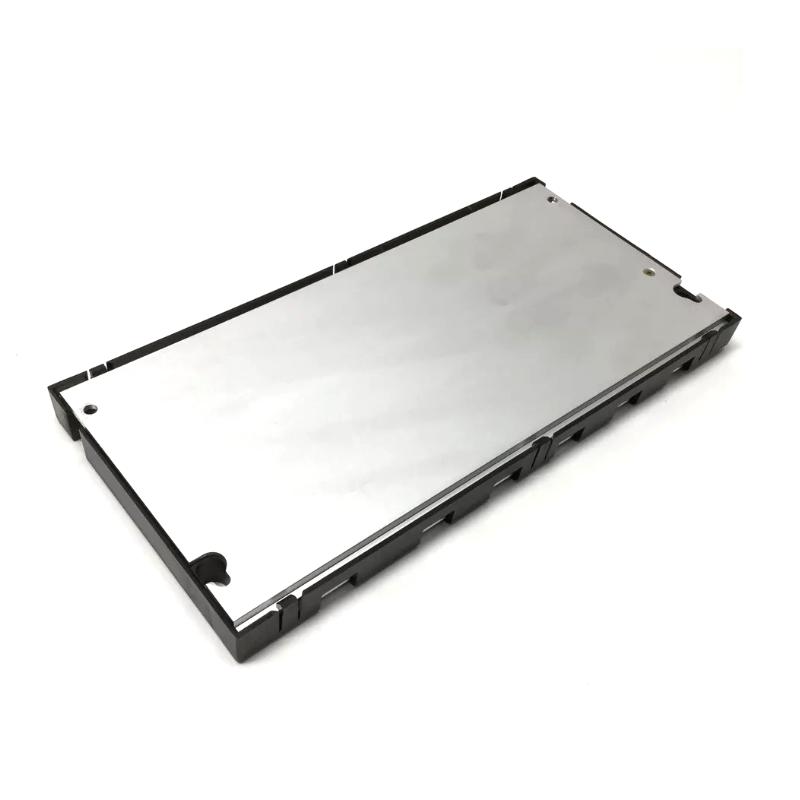

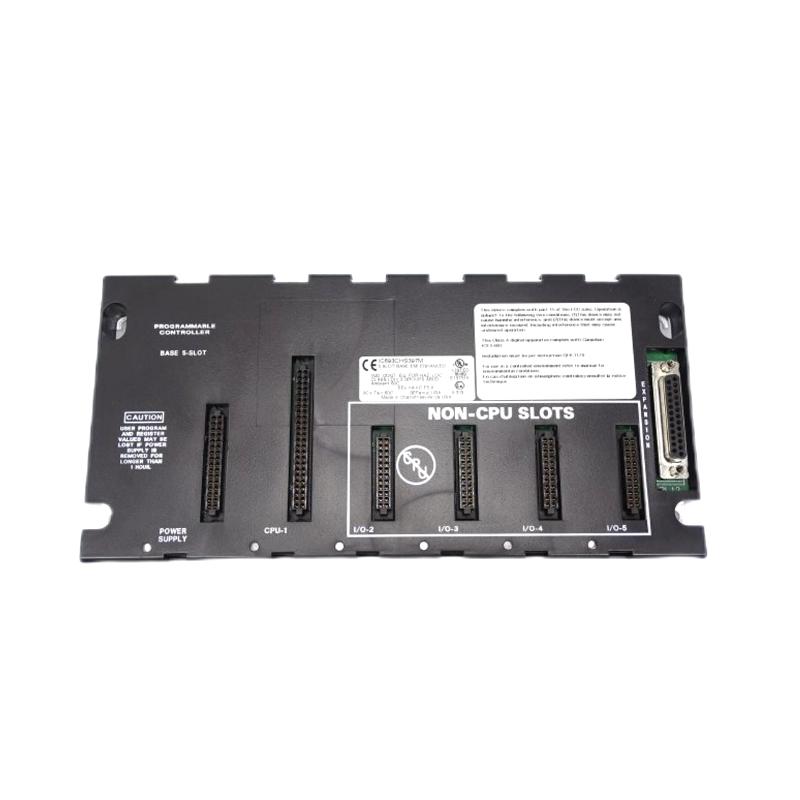

| Product Model | IC693CHS397 |
| Series | GE Fanuc Series 90-30 |
| Number of Slots | 5 slots |
| Supported Modules | Compatible with CPU, power, discrete & analog I/O |
| Power Interface | Compatible with external power modules (e.g. IC693PWR321) |
| Backplane Bus | Internal communication bus for module interaction |
| Mounting Type | Panel Mount |
| Material | Industrial-grade plastic and metal support |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 245 mm x 130 mm x 142 mm |
| Weight | 0.572 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What modules are supported by IC693CHS397?
A1: It supports Series 90-30 CPU, power supply, discrete I/O, and analog I/O modules.
Q2: Can IC693CHS397 be used for expansion purposes?
A2: It serves as a main baseplate. Expansion requires additional baseplates like IC693CHS392.
Q3: What is the mounting method for IC693CHS397?
A3: It is designed for panel mounting with screws.
Q4: Does IC693CHS397 require a specific power supply module?
A4: Yes, it must be paired with a compatible power supply such as IC693PWR321.
Q5: Does the baseplate have built-in communication capabilities?
A5: No, communication features must be provided through additional modules.
Q6: Is IC693CHS397 suitable for high-temperature environments?
A6: It operates within 0°C to 60°C. Usage outside this range is not recommended.
Q7: Is hot-swapping supported for modules on IC693CHS397?
A7: No, power must be turned off before installing or removing any modules.
Q8: Is IC693CHS397 compatible with RX3i or VersaMax series?
A8: No, this baseplate is specifically designed for Series 90-30 and is not compatible with RX3i or VersaMax.
