Technical Specifications
| Parameter | Description |
|---|---|

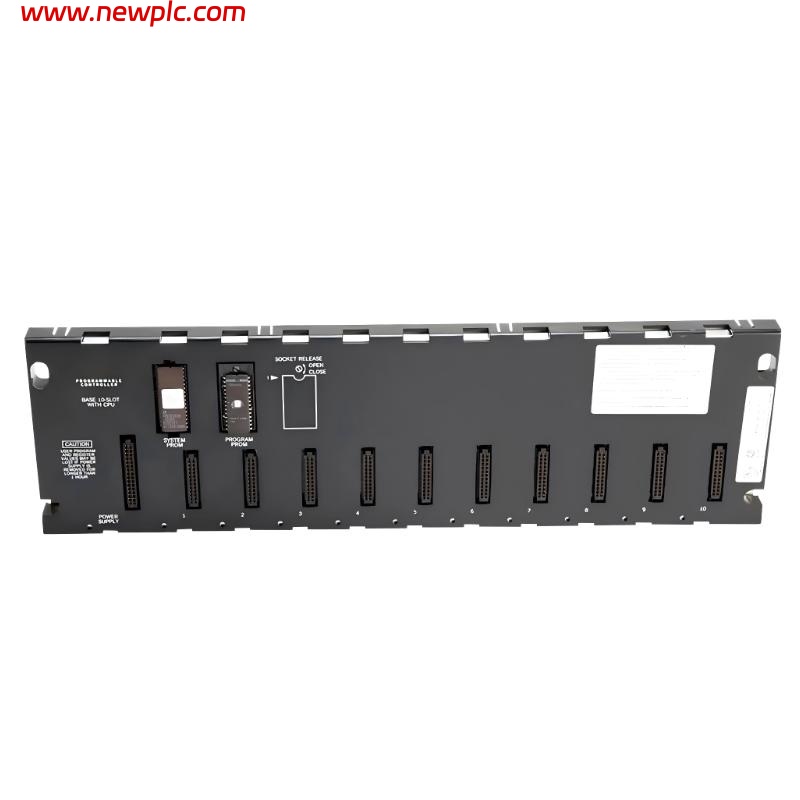

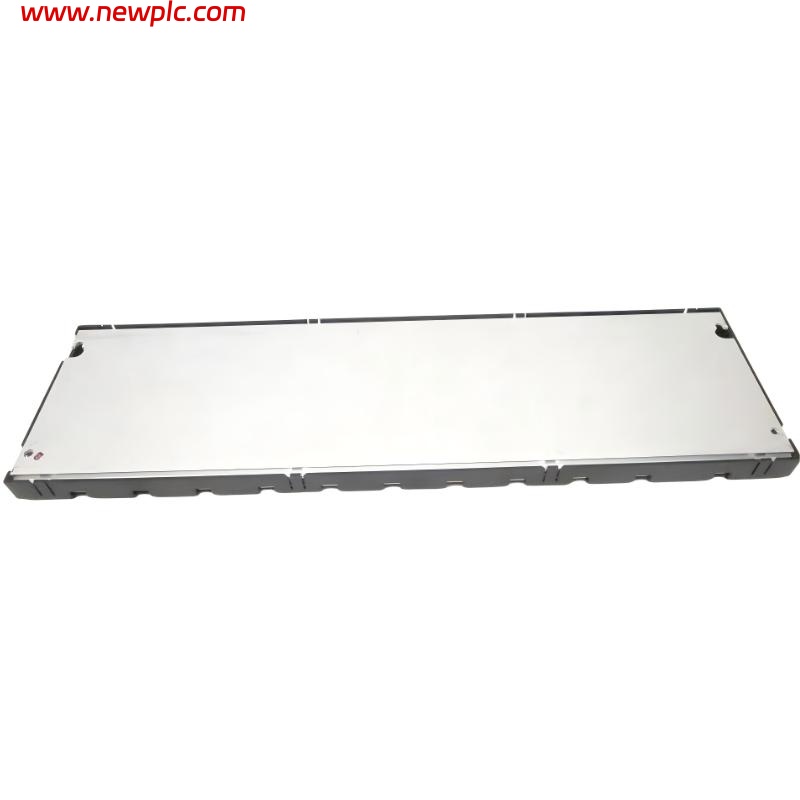

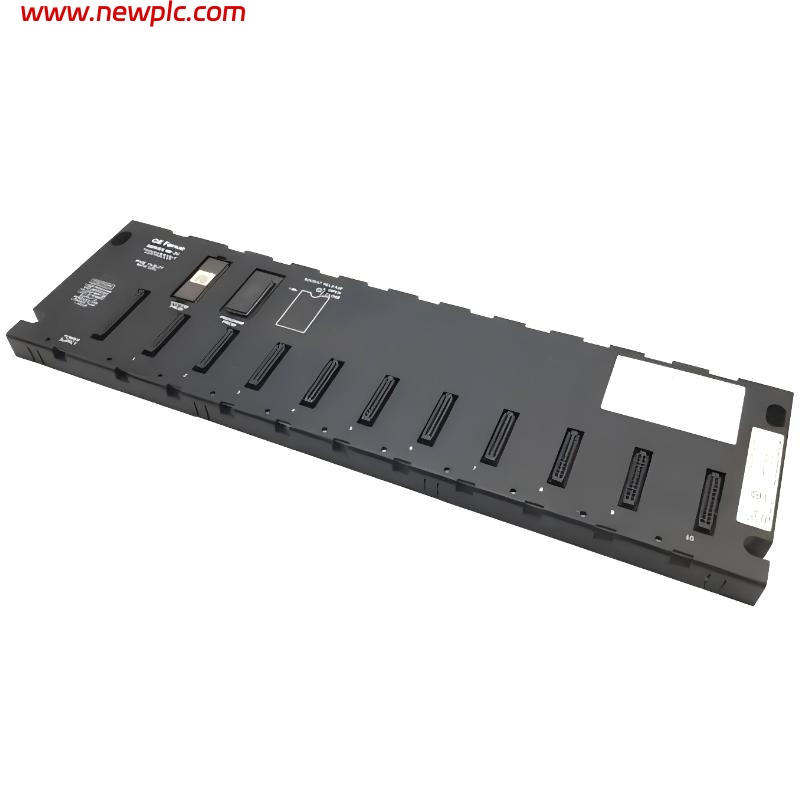

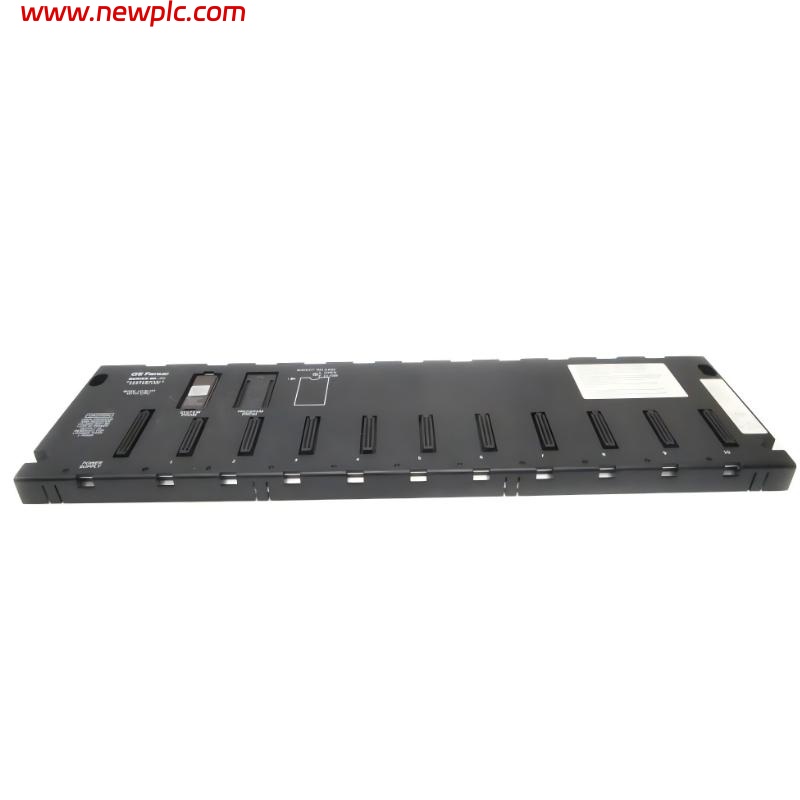

| Model | GE IC693CPU321 10-Slot Baseplate |
| Function | Provides mounting and electrical connections for up to 10 Compact I/O modules |
| Baseplate Type | 10-slot modular I/O backplane |
| Components | Bus connectors, mounting slots, status indicators |
| Application | Used in GE Fanuc PLC systems to organize and connect multiple I/O modules |
| Operating Features | Supports real-time communication between CPU and I/O modules, ensures reliable power distribution |
| Environmental Rating | Industrial-grade design suitable for vibration, EMI, and temperature variations |
| Dimensions | 130 × 428 × 142 mm |
| Weight | 1.4 kg |
FAQ
FAQ
Q1: What is the primary purpose of the IC693CPU321 baseplate?
A1: It provides mechanical support and electrical connections for up to 10 Compact I/O modules in a GE PLC system.
Q2: Can the baseplate support modules from different Compact I/O series?
A2: Only modules compatible with the 10-slot baseplate should be installed.
Q3: Does the baseplate provide any diagnostic features?
A3: It includes status indicators for monitoring module connections and power.
Q4: How are modules connected to the baseplate?
A4: Modules are inserted into slots and electrically connected via integrated bus connectors.
Q5: Can multiple baseplates be connected together?
A5: Yes, multiple baseplates can be linked, ensuring proper addressing and system configuration.
Q6: Does the baseplate provide power distribution to modules?
A6: Yes, it distributes power from the main PLC supply to each connected module.
Q7: Is any firmware required for the baseplate itself?
A7: No firmware is needed; it functions as a passive mounting and connection platform.
Q8: What should be checked before installing modules on the baseplate?
A8: Verify slot availability, module compatibility, and correct orientation for secure connection.
