Technical Specifications
| Item | Specification |
|---|---|

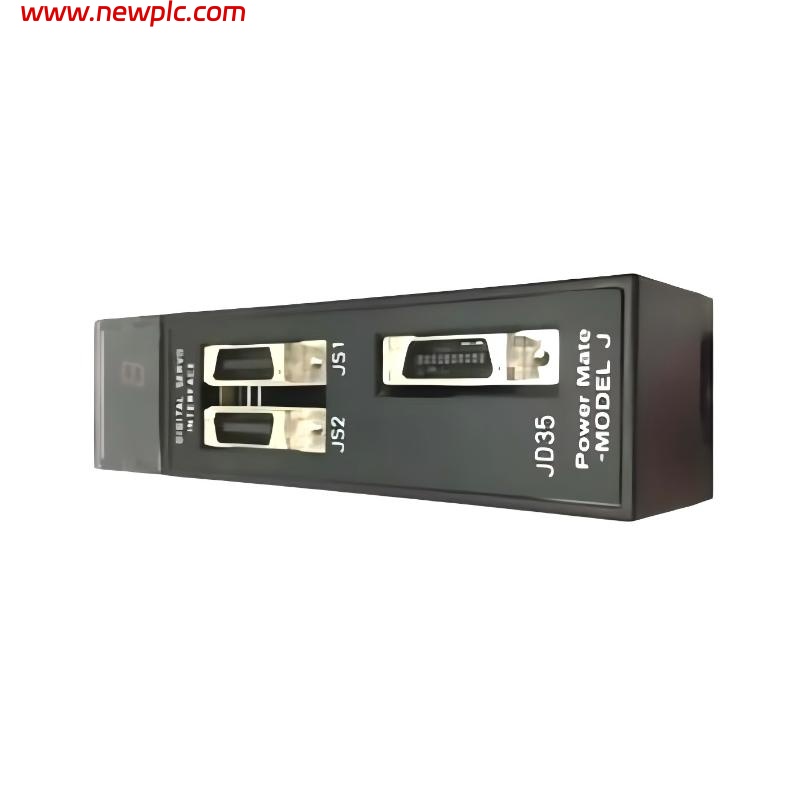

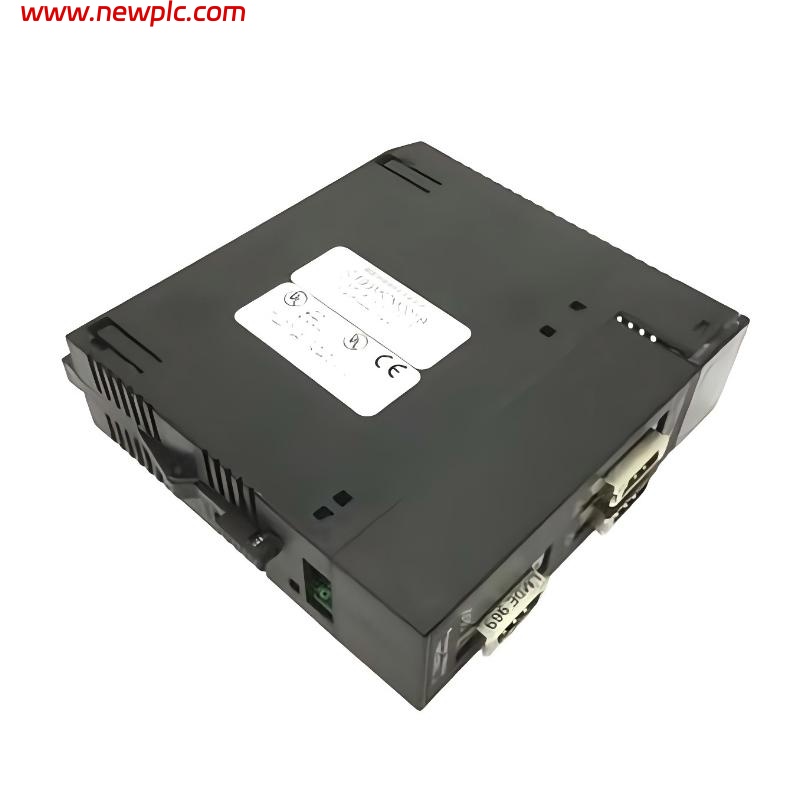

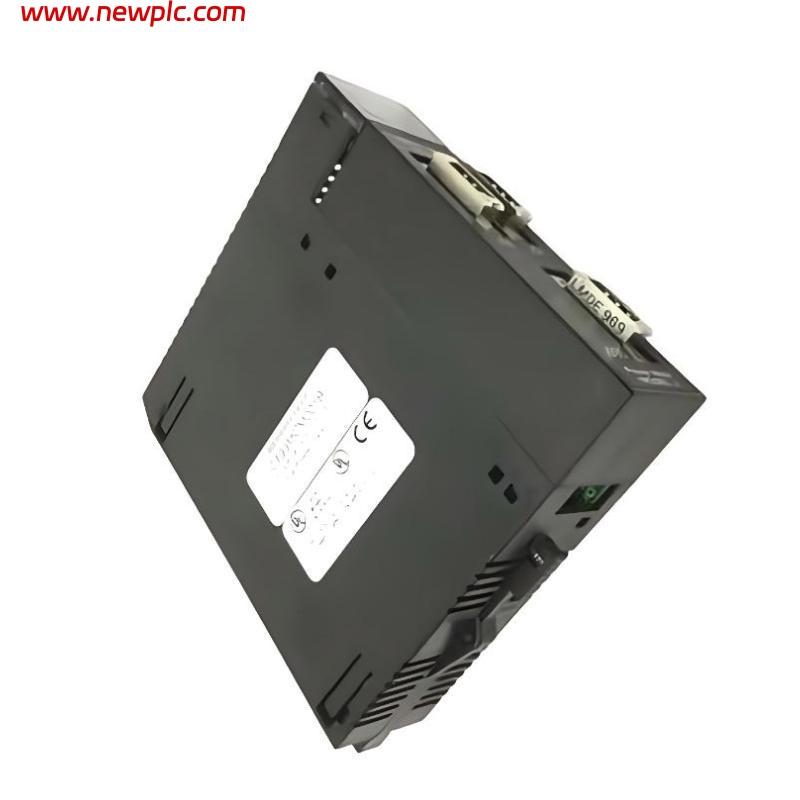

| Model | IC693MCD001 |
| Product Name | Digital Servo Interface Module |
| Manufacturer | GE |
| Product Type | Servo interface module |
| Function | Controls and interfaces with digital servo drives |
| Communication | PLC backplane interface |
| Input Type | Digital command signals |
| Output Type | Pulse, direction, and analog signals for servo drive |
| Axis Support | Single axis per module |
| Control Modes | Position, velocity, and torque control |
| Feedback | Encoder input for position/velocity feedback |
| Diagnostics | Status LEDs, fault detection, and reporting |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +85°C |
| Response Time | Real-time control capable |
| Mounting | Rack-mounted in Series 90-30 PLC system |
| Software Support | GE PLC programming software |
| Protection | Short-circuit and overload protection on outputs |
| Dimensions (L × W × H) | 33 x 122 x 100 mm |
| Weight | 0.18 kg |
FAQ
FAQ
Q1: What type of servo drives is this module compatible with?
A1: It is designed for digital servo drives compatible with GE Series 90-30 PLC systems.
Q2: How many axes can the module control?
A2: The module supports a single axis per unit.
Q3: What types of control modes are available?
A3: Position, velocity, and torque control modes are supported.
Q4: Does the module provide feedback input from encoders?
A4: Yes, it accepts encoder inputs for position and velocity feedback.
Q5: How are faults or errors reported?
A5: Status LEDs indicate faults, and detailed diagnostics can be accessed through the PLC software.
Q6: Is the module suitable for real-time motion control applications?
A6: Yes, it is designed for fast, real-time control of servo axes.
Q7: What type of protection features are included?
A7: It includes short-circuit and overload protection on the output channels.
Q8: Can the module interface directly with the PLC backplane?
A8: Yes, it connects directly to the Series 90-30 PLC backplane for communication and power.
