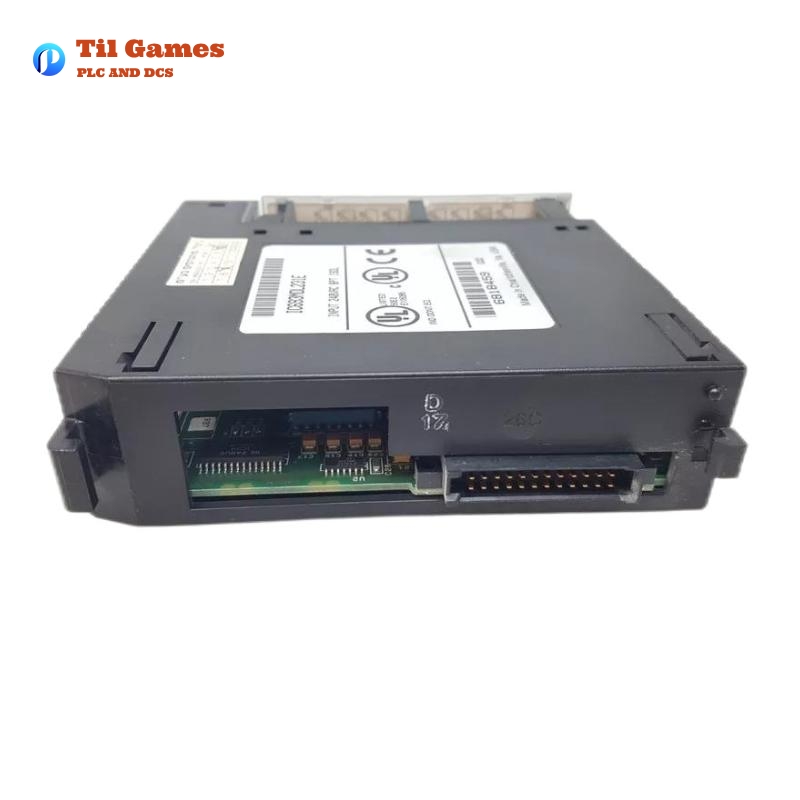

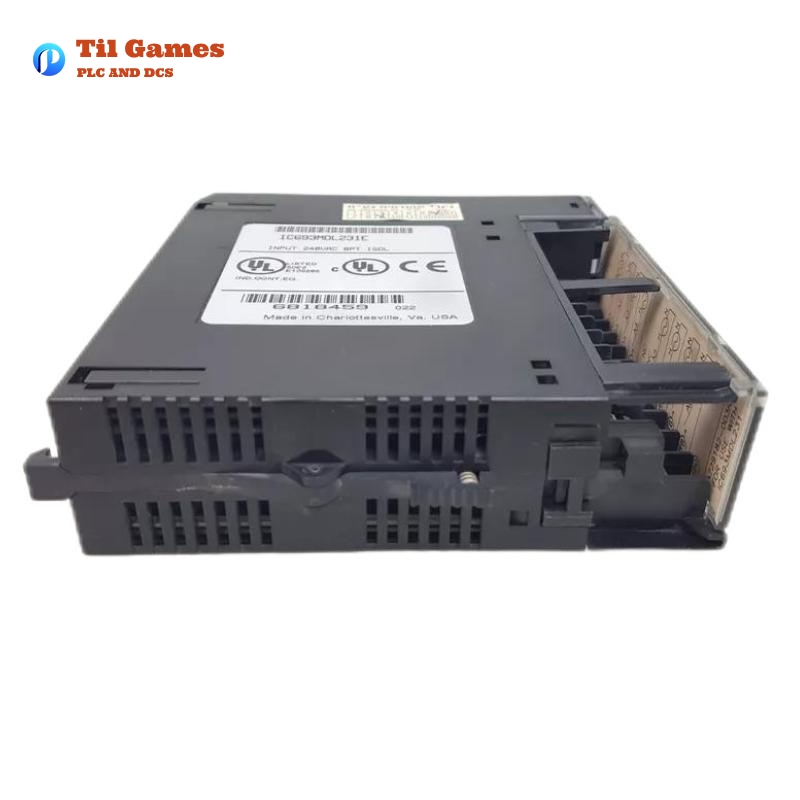

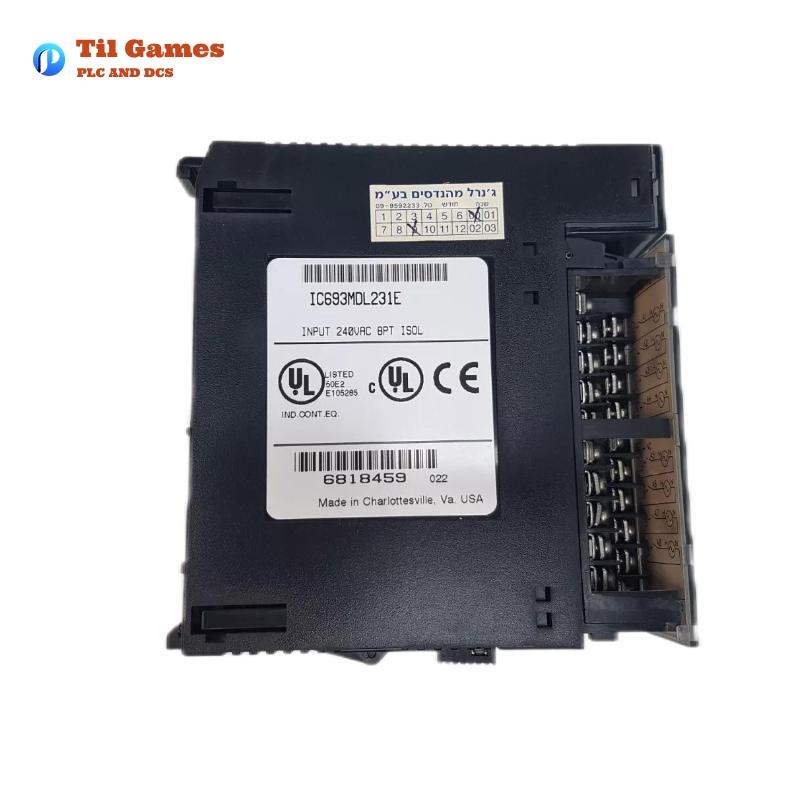

GE IC693MDL231E Series 90-30 PLC Isolated Input Module

– Frequently Asked Questions (FAQ)

Q1: What type of power supply is required for the IC693MDL231E?
A1: The module requires an external 240V AC power source for input signals and draws 60 mA from the 5V backplane power.

Q2: Can this module be used with DC inputs?
A2: No, the IC693MDL231E is strictly designed for AC input signals ranging from 0 to 264V AC.

Q3: Are the input channels individually isolated?
A3: Yes, each of the eight input points is electrically isolated from the others, allowing separate AC sources per input.

Q4: How is the status of each input channel indicated?

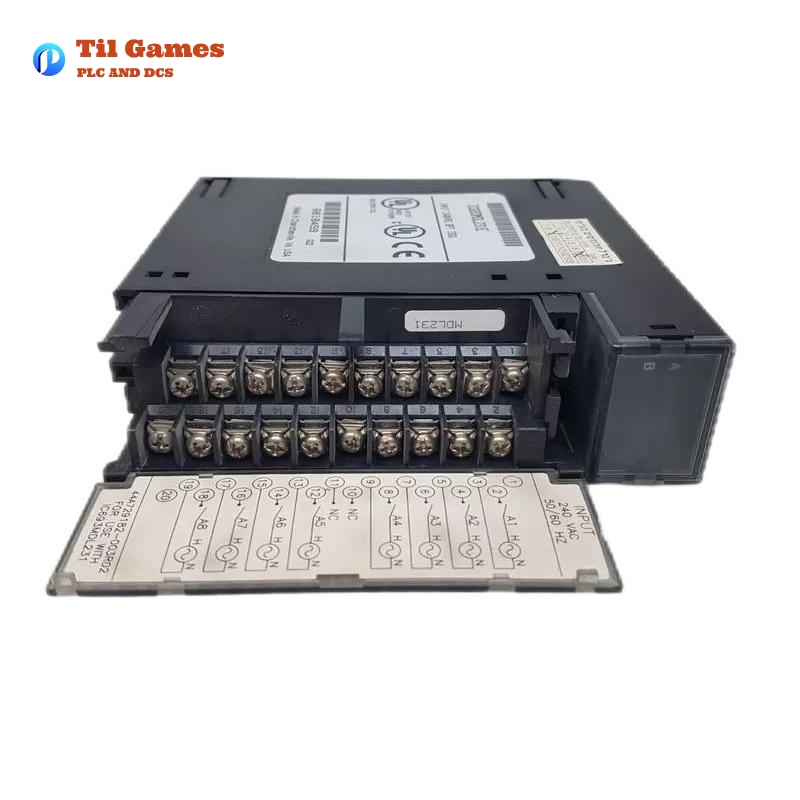

A4: Each input channel has a dedicated green LED indicator (A1 through A8) to show ON/OFF state.

Q5: What is the typical input current at 240V AC?
A5: The typical current drawn per channel at 240V AC is approximately 15 mA.

Q6: What is the maximum response time for input signals?
A6: The On response time is 30 ms max, and the Off response time is 45 ms max.

Q7: Can this module be mounted in any slot on the baseplate?
A7: Yes, it is compatible with any I/O slot in a 5-slot or 10-slot GE Series 90-30 baseplate.

Q8: What types of devices can be connected to this module?
A8: Suitable devices include pushbuttons, proximity sensors, limit switches, and other 240V AC field input devices.

GE IC693MDL231E Isolated Input Module Series 90-30 PLC
